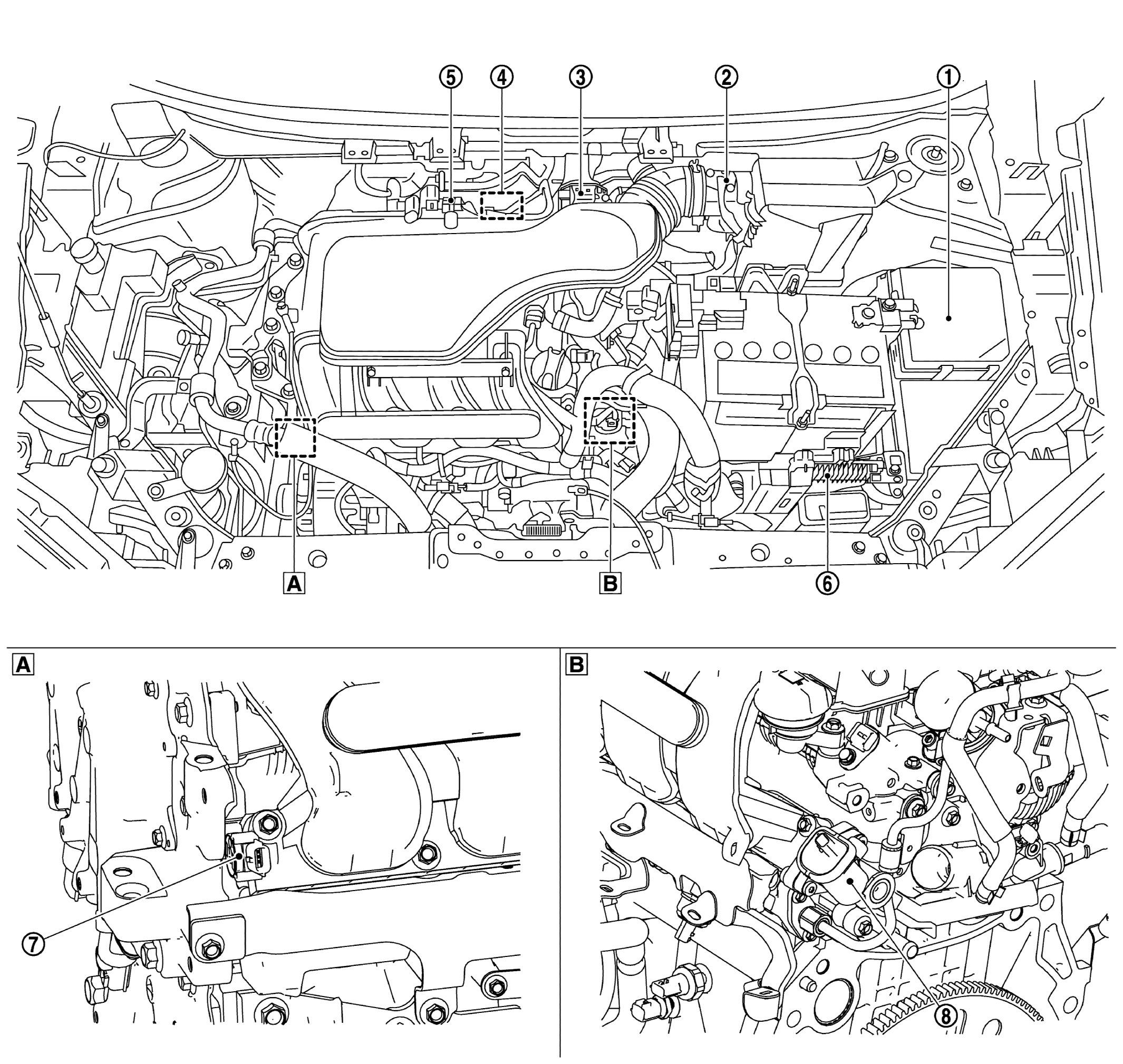

Engine Room Compartment
| No. | Component | Function |
|---|---|---|
| IPDM E/R | IPDM E/R control the internal relays and the actuators. And when CAN communication with ECM is impossible, IPDM E/R performs fail - safe control. |
|
| Mass air flow sensor (with intake air temperature sensor) |
MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) | |
| Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
ELECTRIC THROTTLE CONTROL ACTUATOR | |
| EVAP service port | - | |
| EVAP canister purge volume control solenoid valve | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE | |
| ECM | ECM | |
| Intake manifold runner control valve position sensor | INTAKE MANIFOLD RUNNER CONTROL VALVE | |
| Intake manifold runner control valve motor | INTAKE MANIFOLD RUNNER CONTROL VALVE |
