Combination meter
(Electric power steering warning lamp) |
- Transmits mainly the following signal to EPS control unit via CAN communication.
- Vehicle speed signal (Meter)
- For detailed installation location, refer to COMPONENT LOCATION
.
- Turns ON the Electric power steering warning lamp according to the signal from EPS control unit via CAN communication.
- For electric power steering warning lamp, refer to WARNING LAMP/INDICATOR LAMP .
|
 |
ABS actuator and electric unit (control unit) |
- Transmits mainly the following signal to EPS control unit via CAN communication.
- Vehicle speed signal (ABS)
- For detailed installation location, refer to COMPONENT LOCATION
.
|
 |
ECM |
- Transmits mainly the following signals to EPS control unit via CAN communication.
- Receives mainly the following signal to EPS control unit via CAN communication.
- For detailed installation location, Refer to COMPONENT LOCATION
.
|
 |
Steering angle sensor |
- Transmits mainly the following signals to EPS control unit via CAN communication.
- Steering angle sensor signal
- For detailed installation location, Refer to COMPONENT LOCATION
.
|
 |

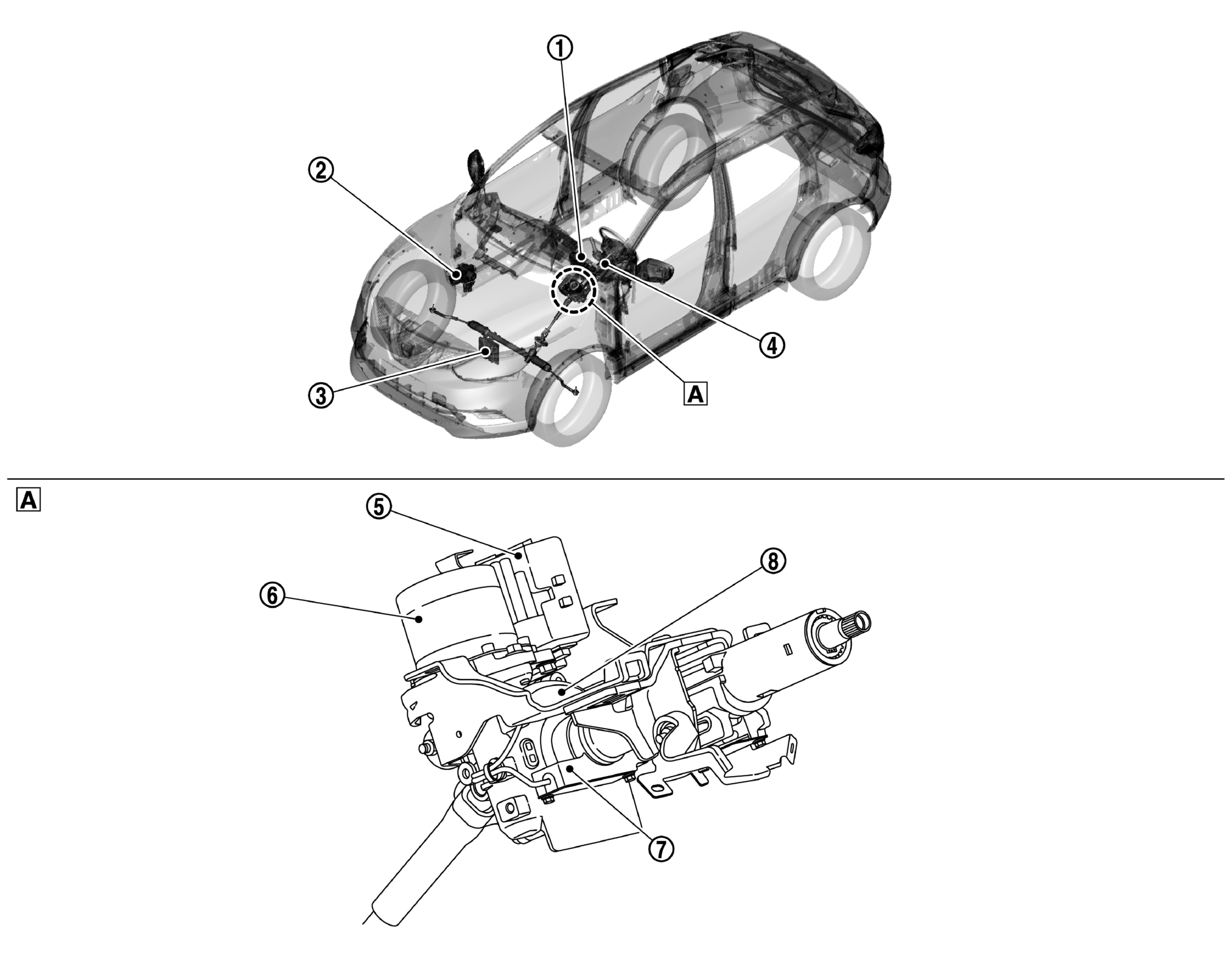

EPS control unit |
EPS CONTROL UNIT |
 |
EPS motor |
EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR |
 |
Torque sensor |
EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR |
 |
Reduction gear |
EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR |
