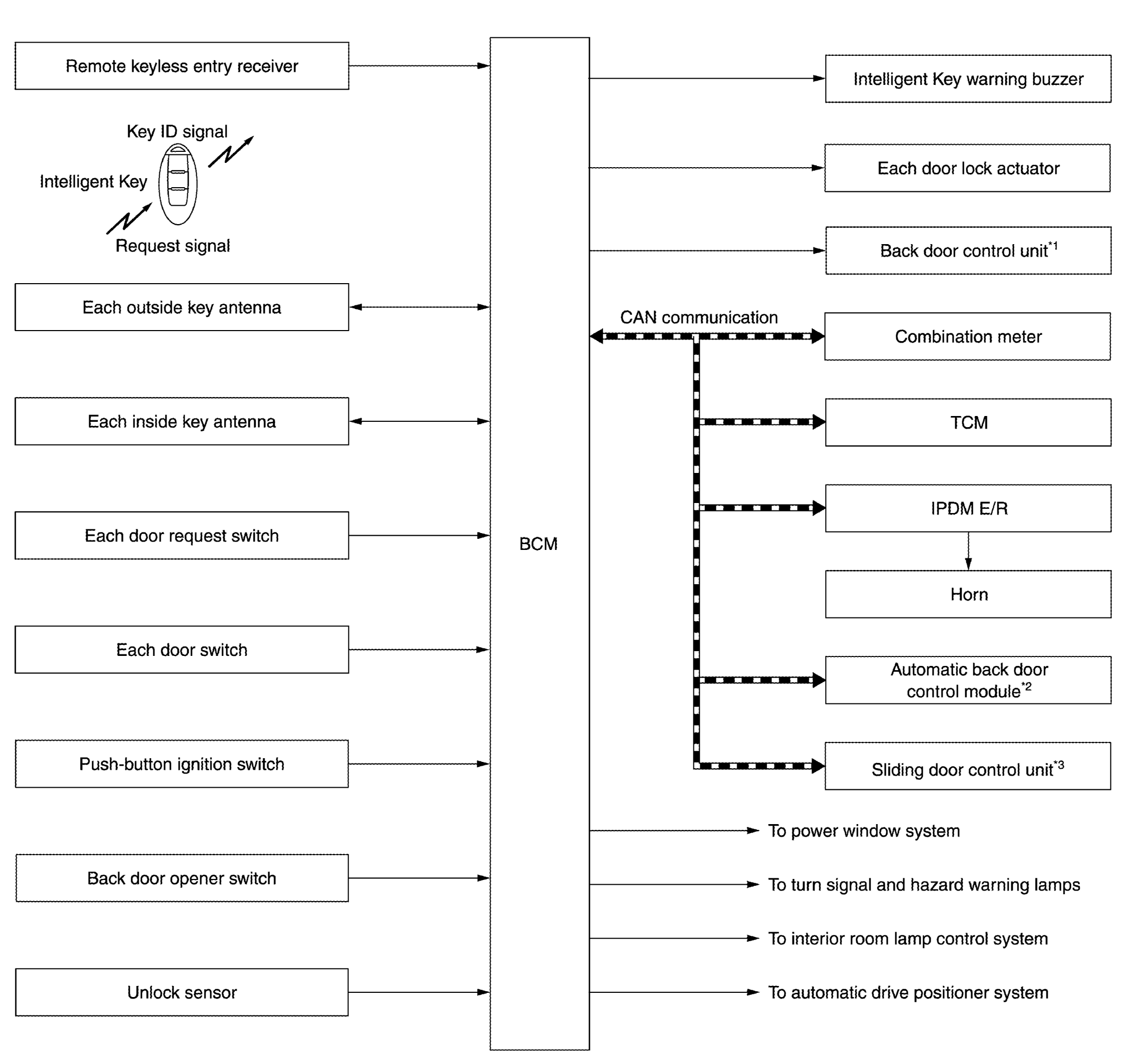

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

^{* 1} : With back door auto closure system

^{* 2} : With automatic back door system

^* : With automatic sliding door system

The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verification using two-way communication between the Intelligent Key and the vehicle (BCM).
NOTE:
The driver should always carry the Intelligent Key
The settings for each function can be changed with CONSULT.
If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be registered.
It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

Function	Description	Refer
Door lock	Lock/unlock can be performed by pressing the request switch	SYSTEM DESCRIPTION
Back door opener	The back door can be opened by carrying the Intelligent Key and pressing the back door opener switch	SYSTEM DESCRIPTION
Remote keyless entry	Lock/unlock can be performed by pressing the remote controller button of the Intelligent Key	SYSTEM DESCRIPTION
Key reminder	The key reminder buzzer sounds a warning if the door is locked with the key left inside the vehicle	SYSTEM DESCRIPTION
Warning	If an action that does not meet the operating condition of the Intelligent Key system is taken, the buzzer sounds to inform the driver	SYSTEM DESCRIPTION
Engine start	The engine can be turned on while carrying the Intelligent Key	SYSTEM DESCRIPTION
Interior room lamp control	Interior room lamp is controlled according to door lock/unlock state	SYSTEM DESCRIPTION
Power window	Power window can be operated by Intelligent Key button operation	SYSTEM DESCRIPTION
Automatic drive positioner	Automatic drive positioner system can be operated by door unlock operation	SYSTEM DESCRIPTION
Panic alarm	When Intelligent Key panic alarm button is pressed, horn sounds	SYSTEM DIAGRAM
