Physical Values

Terminal (Wire color)		Description		Condition		Standard	Reference value (Approx.)
+	-	Signal name	Input/Output	Condition		Standard	Reference value (Approx.)
6	-	Shield	-	-	-	-	-
7	-	Shield	-	-	-	-	-
8 (Y)	12 (B)	Camera image signal	Input	Ignition switch ON	When camera image is displayed.	Waveform according to camera image is input.	Courtesy of NISSAN NORTH AMERICA, INC.
9 (W)	12 (B)	Communication signal (DISP→CONT)	Output	Ignition switch ON	When adjusting display brightness.	Waveform of 1.5 V or less - 3.5 V or more is output.	Courtesy of NISSAN NORTH AMERICA, INC.
10 (B)	12 (B)	Communication signal (CONT→DISP)	Input	Ignition switch ON	-	Waveform of 1.5 V or less - 3.5 V or more is input.	Courtesy of NISSAN NORTH AMERICA, INC.
11 (SB)	12 (B)	Battery power supply	Input	Ignition switch OFF	-	9.0 - 16.0 V	Battery voltage
18 (R)	19 (W)	Composite image signal	Input	Ignition switch ON	When DVD, USB or AUX image is displayed	Waveform according to composite image is input.	Courtesy of NISSAN NORTH AMERICA, INC.

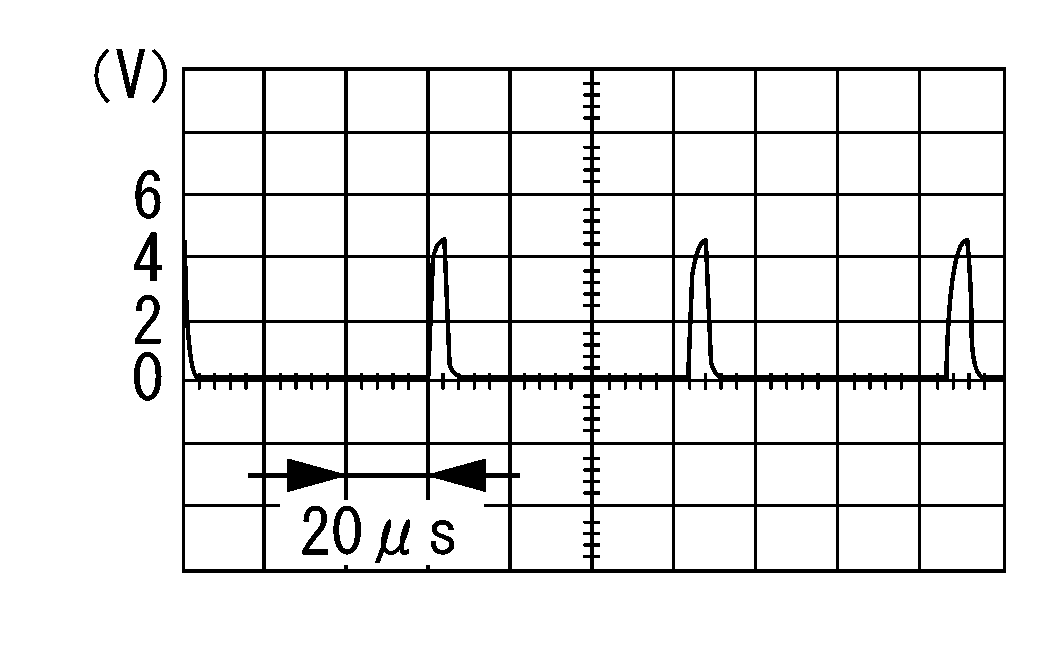

20 (B)	12 (B)	Composite image synchronizing signal	Input	Ignition switch ON	When DVD, USB or AUX image is displayed	Waveform according to composite image is input.	Courtesy of NISSAN NORTH AMERICA, INC.
22	-	Shield	-	-	-	-	-
23 (O)	12 (B)	ACC power supply	Input	Ignition switch ACC	-	6.0 - 16.0 V	Battery voltage
27	12 (B)	RGB digital image signal (-)	Input	-	-	-	-
28	12 (B)	RGB digital image signal (+)	Input	-	-	-	-
