Physical Values

Terminal (Wire color)		Description		Condition		Standard	Reference value (Approx.)
+	-	Signal name	Input/Output	Condition		Standard	Reference value (Approx.)
2 (BR)	13 (P)	Inverter VCC	Input	Ignition switch ACC	-	8.0 - 9.5 V	8.8 V
3 (O)	14 (SB)	Signal VCC	Output	Ignition switch ACC	-	8.0 - 9.5 V	8.8 V
5	-	Shield	-	-	-	-	-

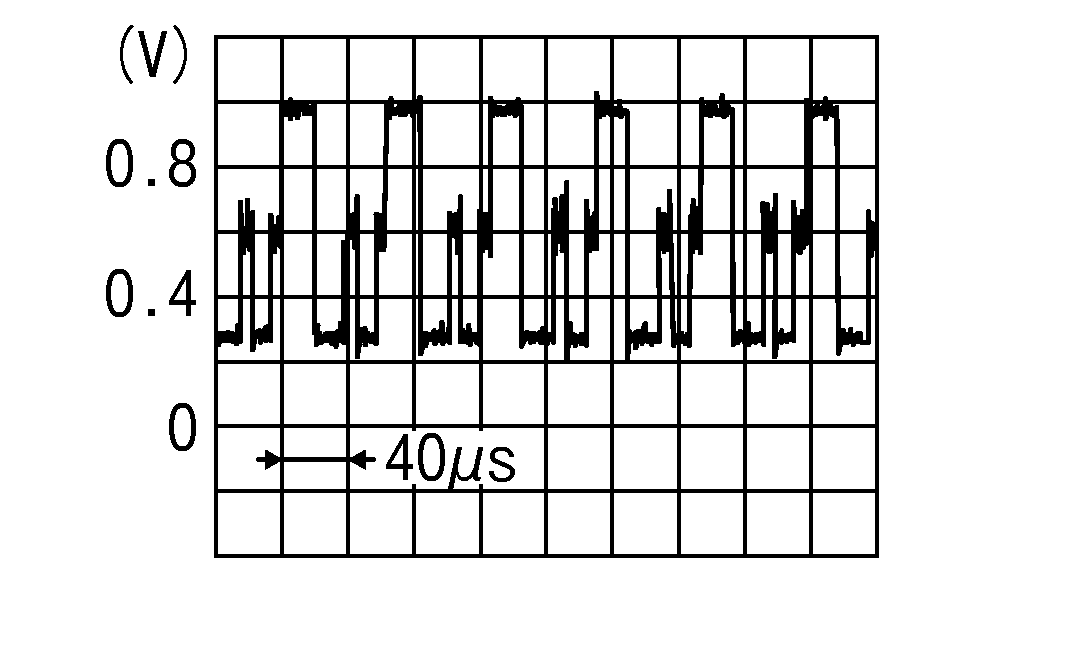

6 (W)	1 (B)	RGB image signal (G: green)	Input	Ignition switch ON	Start Confirmation/Adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on Display Diagnosis screen.	Outputs waveform synchronized with RGB image.	Courtesy of NISSAN NORTH AMERICA, INC.
7	-	Shield	-	-	-	-	-

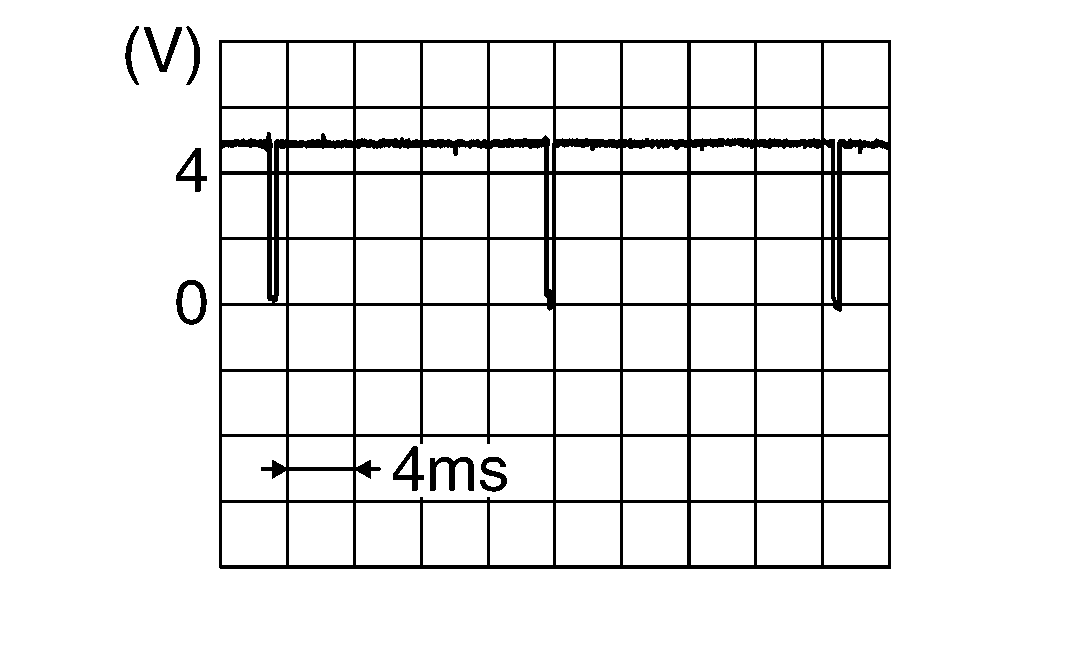

8 (G)	1 (B)	Horizontal synchronizing (HP) signal	Output	Ignition switch ON	-	Waveform of 1.0 V - 5.5 V is output.	Courtesy of NISSAN NORTH AMERICA, INC.
9 (B)	1 (B)	RGB area (YS) signal	Input	Ignition switch ON	At RGB image is displayed.	5.5 V or less	5.0 V
9 (B)	1 (B)	RGB area (YS) signal	Input	Ignition switch ON	At AUX image is displayed.	Waveform of 0.8 V - 5.5 V is input.	Courtesy of NISSAN NORTH AMERICA, INC.

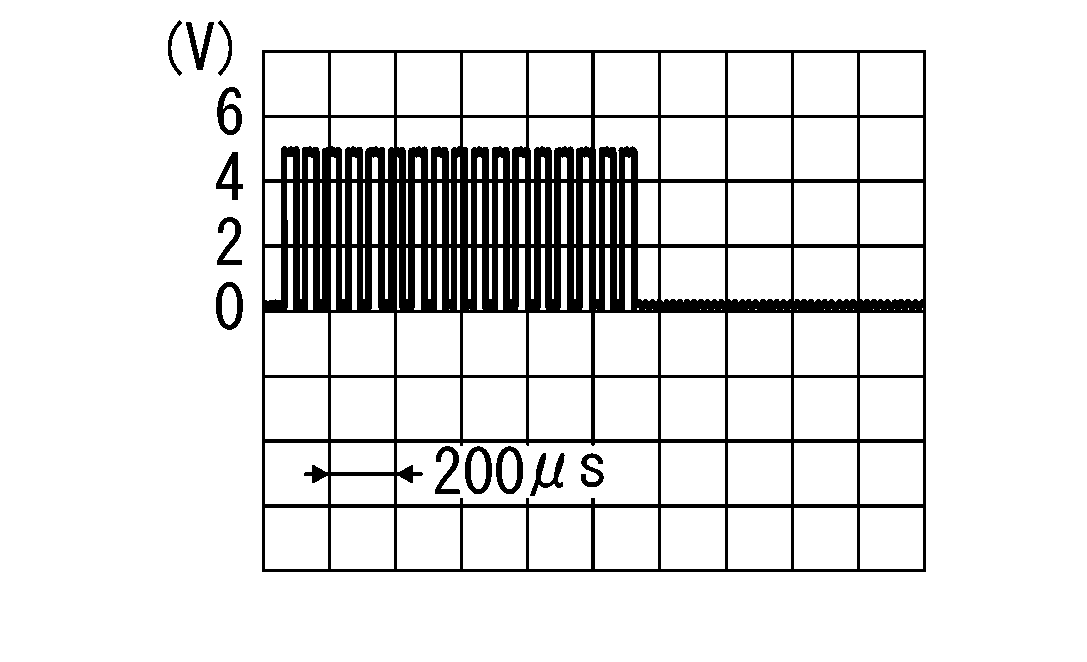

11 (B)	1 (B)	Communication signal (CONT→DISP)	Input	Ignition switch ON	When adjusting display brightness.	Waveform of 0.4 V - 5.3 V is input.	Courtesy of NISSAN NORTH AMERICA, INC.
15 (B)	4 (W)	Composite image signal	Input	Ignition switch ON	When DVD or AUX image is displayed.	Outputs waveform synchronized with composite image.	Courtesy of NISSAN NORTH AMERICA, INC.

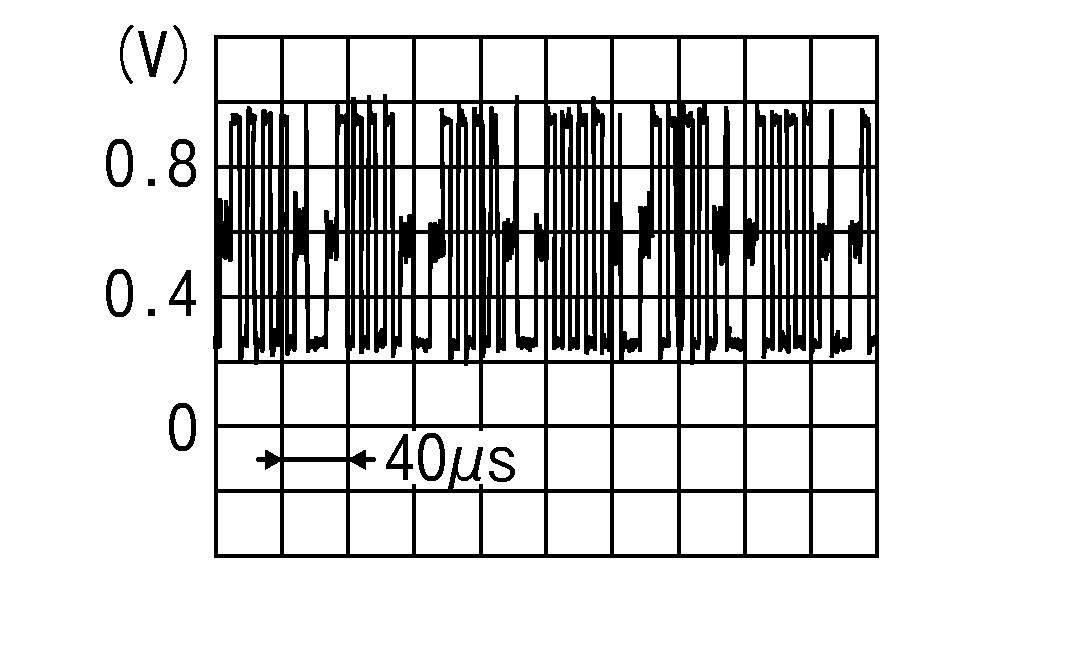

17 (R)	1 (B)	RGB image signal (R: red)	Input	Ignition switch ON	Start Confirmation/Adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on Display Diagnosis screen.	Outputs waveform synchronized with RGB image.	Courtesy of NISSAN NORTH AMERICA, INC.

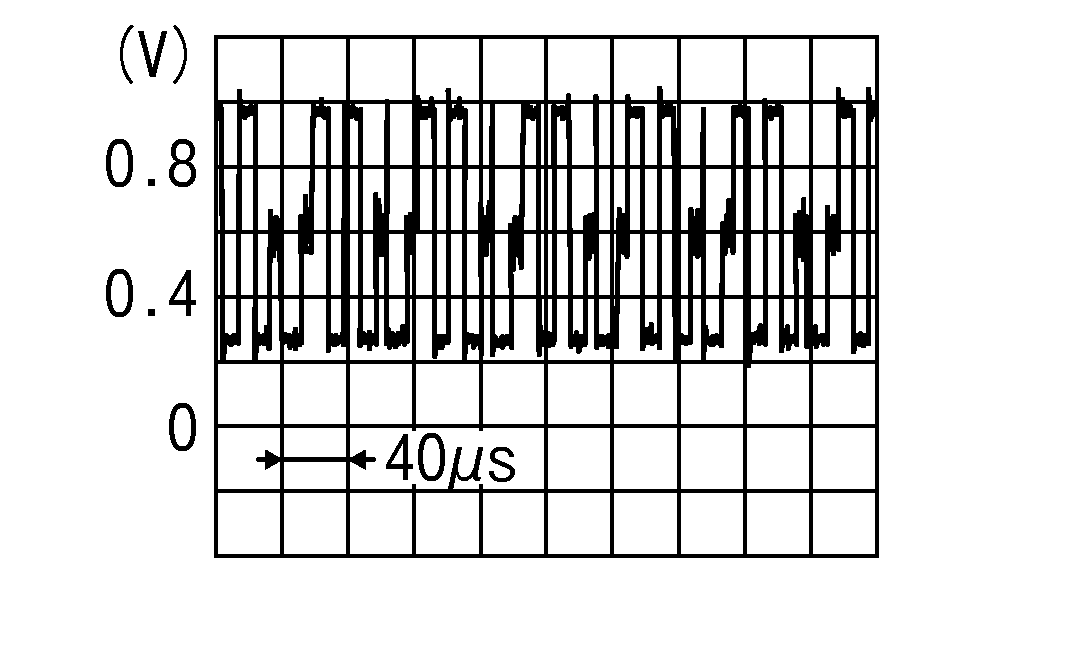

18 (B)	1 (B)	RGB image signal (B: blue)	Input	Ignition switch ON	Start Confirmation/Adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on Display Diagnosis screen.	Outputs waveform synchronized with RGB image.	Courtesy of NISSAN NORTH AMERICA, INC.

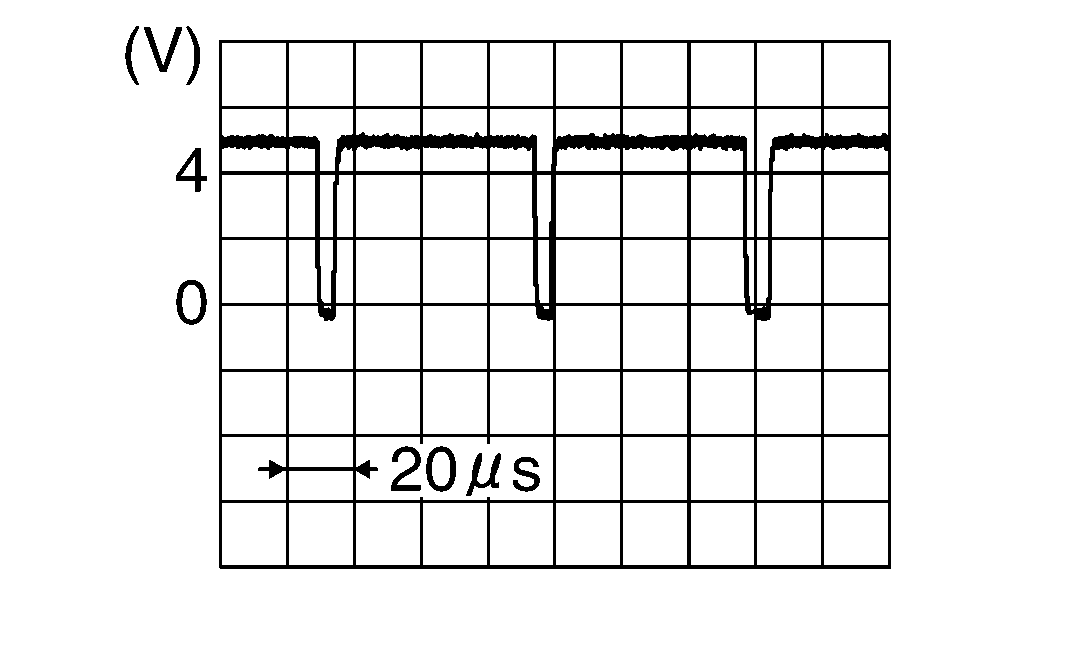

19 (W)	1 (B)	RGB synchronizing signal	Input	Ignition switch ON	-	Waveform of 0.8 V - 5.5 V is input.	Courtesy of NISSAN NORTH AMERICA, INC.
20 (R)	1 (B)	Vertical synchronizing (VP) signal	Output	Ignition switch ON	-	Waveform of 1.0 V - 5.5 V is output.	Courtesy of NISSAN NORTH AMERICA, INC.
21	-	Shield	-	-	-	-	-
22 (W)	1 (B)	Communication signal (DISP→CONT)	Output	Ignition switch ON	When adjusting display brightness.	Waveform of 0.5 V or less - 3.5 V or more is output.	Courtesy of NISSAN NORTH AMERICA, INC.
23	-	Shield	-	-	-	-	-
