Method Of Starting

  1. Start the engine.
  2. Turn the audio system OFF.

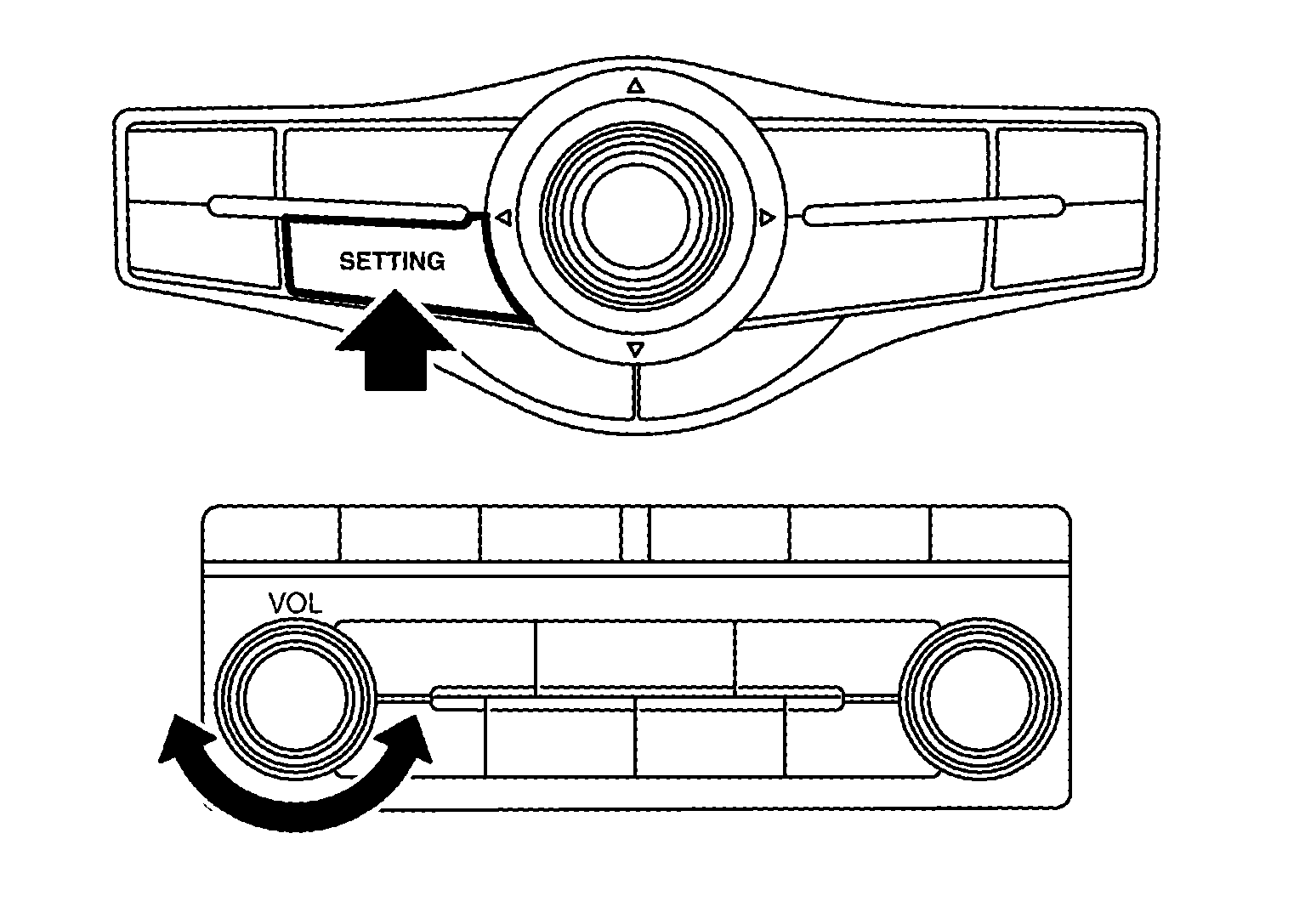

  3. While pressing the "SETTING" button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. (When the self - diagnosis mode is started, the trouble diagnosis initial screen is displayed.)
    G07054220Courtesy of NISSAN NORTH AMERICA, INC.
    • Shifting from current screen to previous screen is performed by pressing "BACK" button.
  4. Items of "Self Diagnosis" and "Confirmation/Adjustment" can be selected on the trouble diagnosis initial screen.
    G06625110Courtesy of NISSAN NORTH AMERICA, INC.
