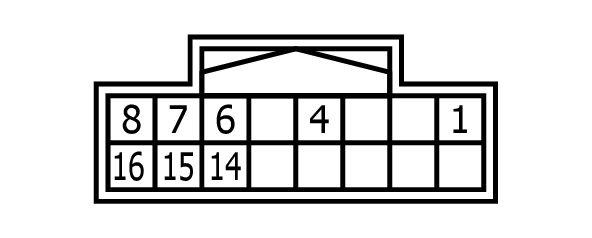

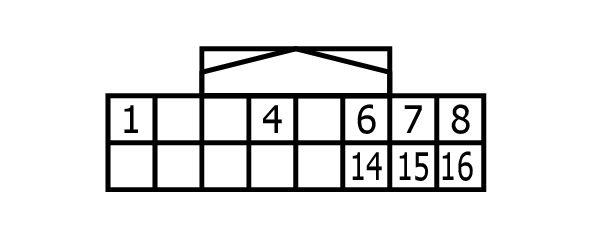

BSW Control Module Connector End View (M61)
Connector Types:
TH16FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
R |
SOW_SW |
| 4 |
P |
SOW_SW_IND |
| 6 |
B |
GND |
| 7 |
L |
BSW COMM-H |
| 8 |
Y |
BSW COMM-L |
| 14 |
L |
CAN-H |
| 15 |
P |
CAN-L |
| 16 |
G |
IGNITION |
