Occupant Detection System Control Unit Connector End View (B209)

Connector Types:  TH04FW-NH

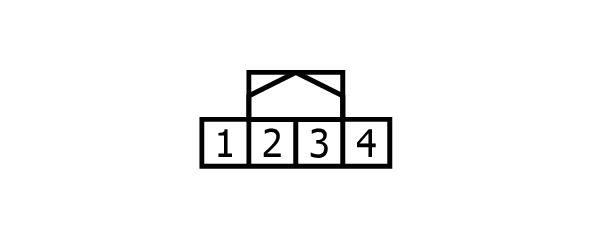

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

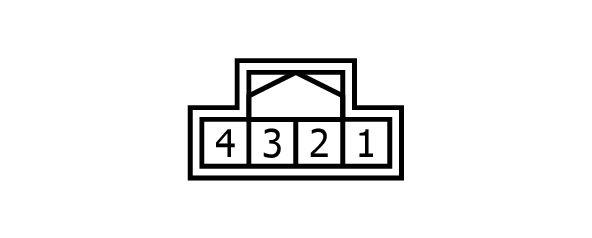

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	L	K-LINE
2	GR	GROUND
3	BR	COMMUNICATION
4	SB	IGN
