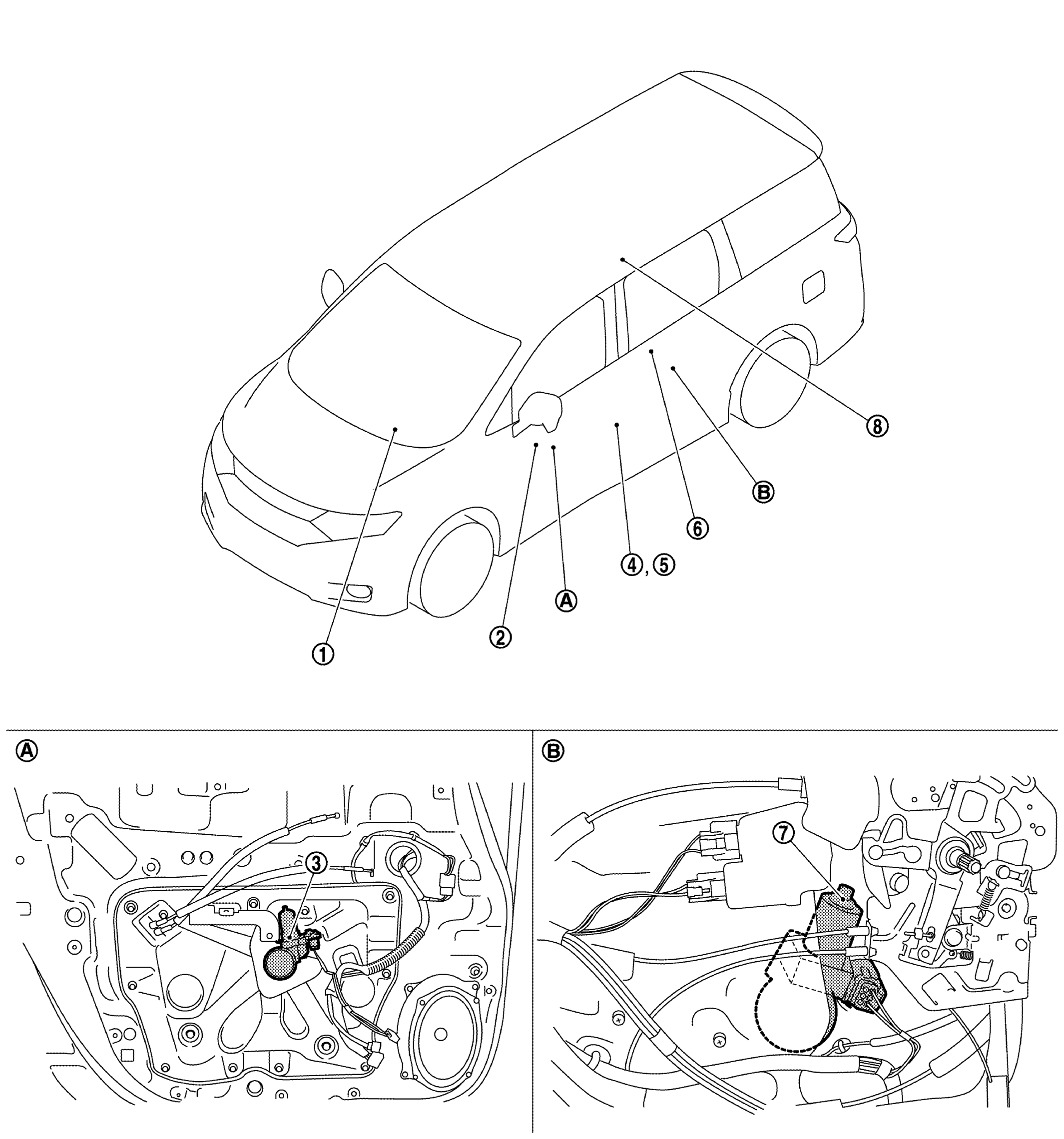

| 1. |
BCM |
- Supplies power supply to power window switch.
- Controls retained power.
- Receives key ID signal from remote keyless entry receiver.
Refer to COMPONENT LOCATION
for detailed installation location. |
| 2. |
Power window main switch |
Refer to POWER WINDOW MAIN SWITCH . |
| 3. |
Front power window motor (driver side) |
Refer to FRONT POWER WINDOW MOTOR (DRIVER SIDE) . |
| 4. |
Front door switch (driver side) |
Detects door open/close condition and transmits to BCM. Refer to FRONT DOOR SWITCH
. |
| 5. |
Front door lock assembly (driver side) (key cylinder switch) |
Transmits operation condition of key cylinder switch to power window main switch. Refer to FRONT DOOR LOCK ASSEMBLY (DRIVER SIDE)
. |
| 6. |
Sliding door power window switch LH |
Refer to SLIDING DOOR POWER WINDOW SWITCH . |
| 7. |
Sliding door power window motor LH |
Refer to SLIDING DOOR POWER WINDOW MOTOR . |
| 8. |
Remote keyless entry receiver |
Receives key ID signal from the Intelligent Key, and then transmits to BCM.
Refer to COMPONENT LOCATION
for detailed installation location. |
