Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

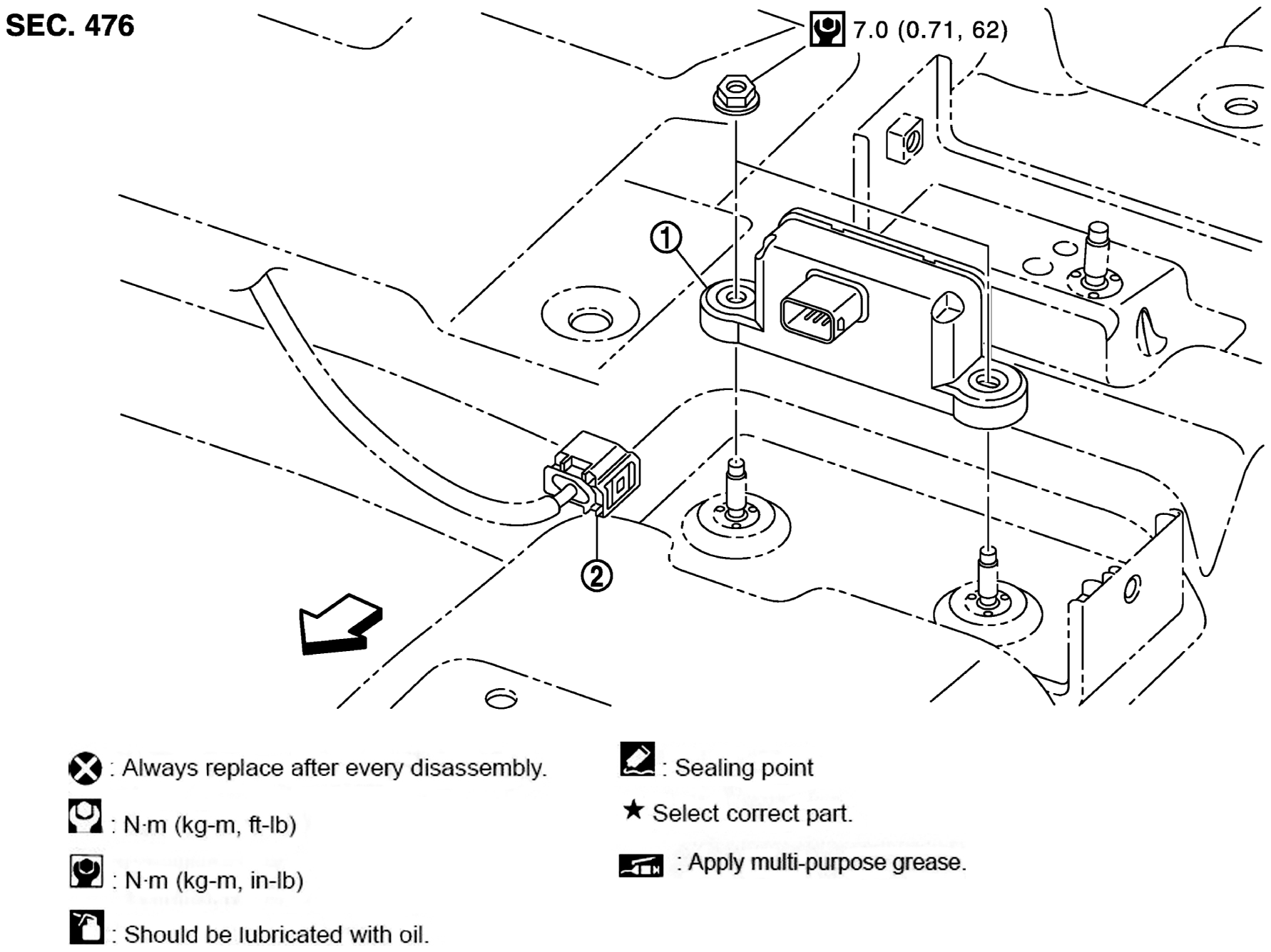

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Yaw rate/side G sensor
2.
Yaw rate/side G sensor harness connector
: Vehicle front
: N•m (kg - m, in - lb)
