Exploded View

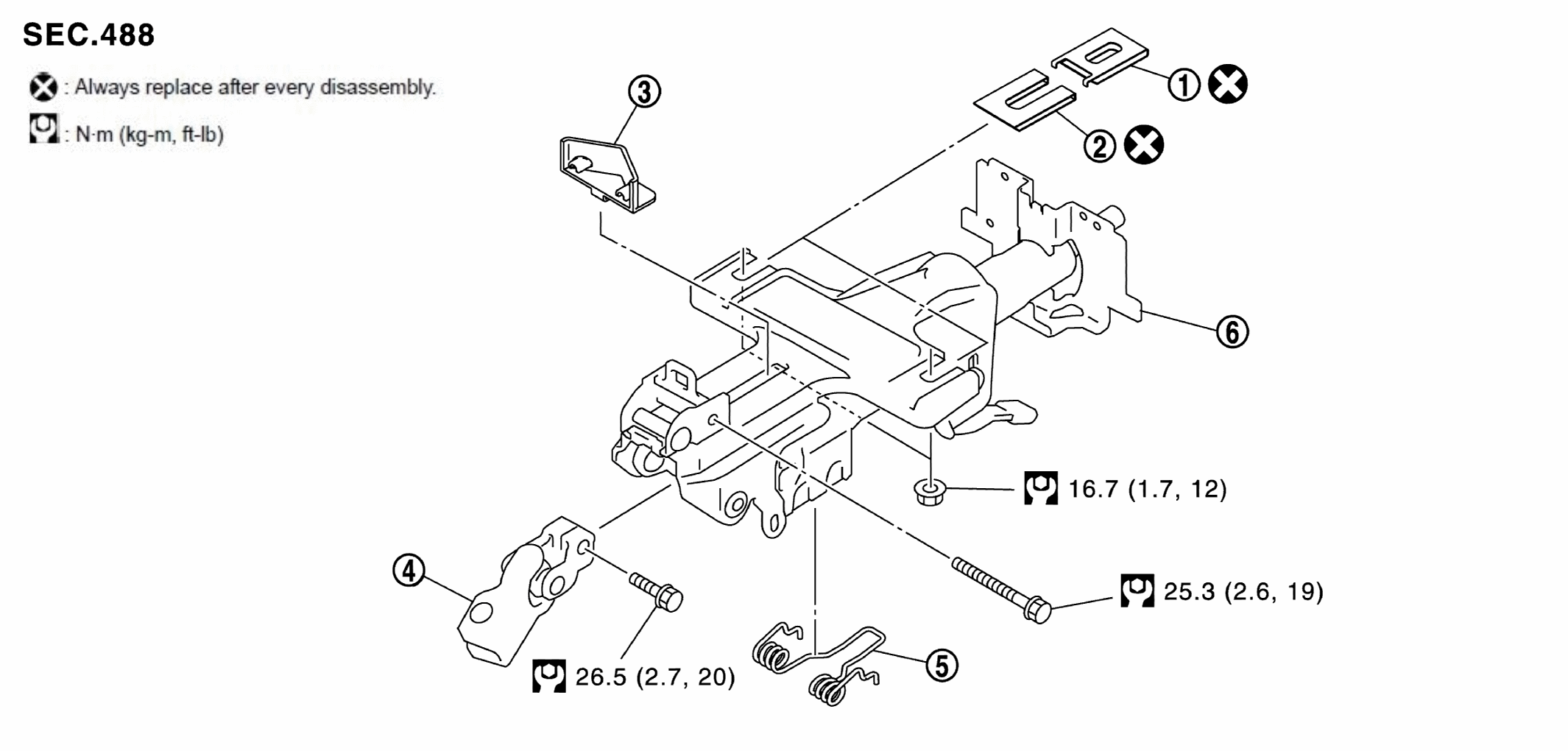

Fig 1: Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Slide plate (outer)	2.	Slide plate (inner)	3.	Cover
4.	Upper joint	5.	Spring	6.	Steering column assembly
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
