Exploded View

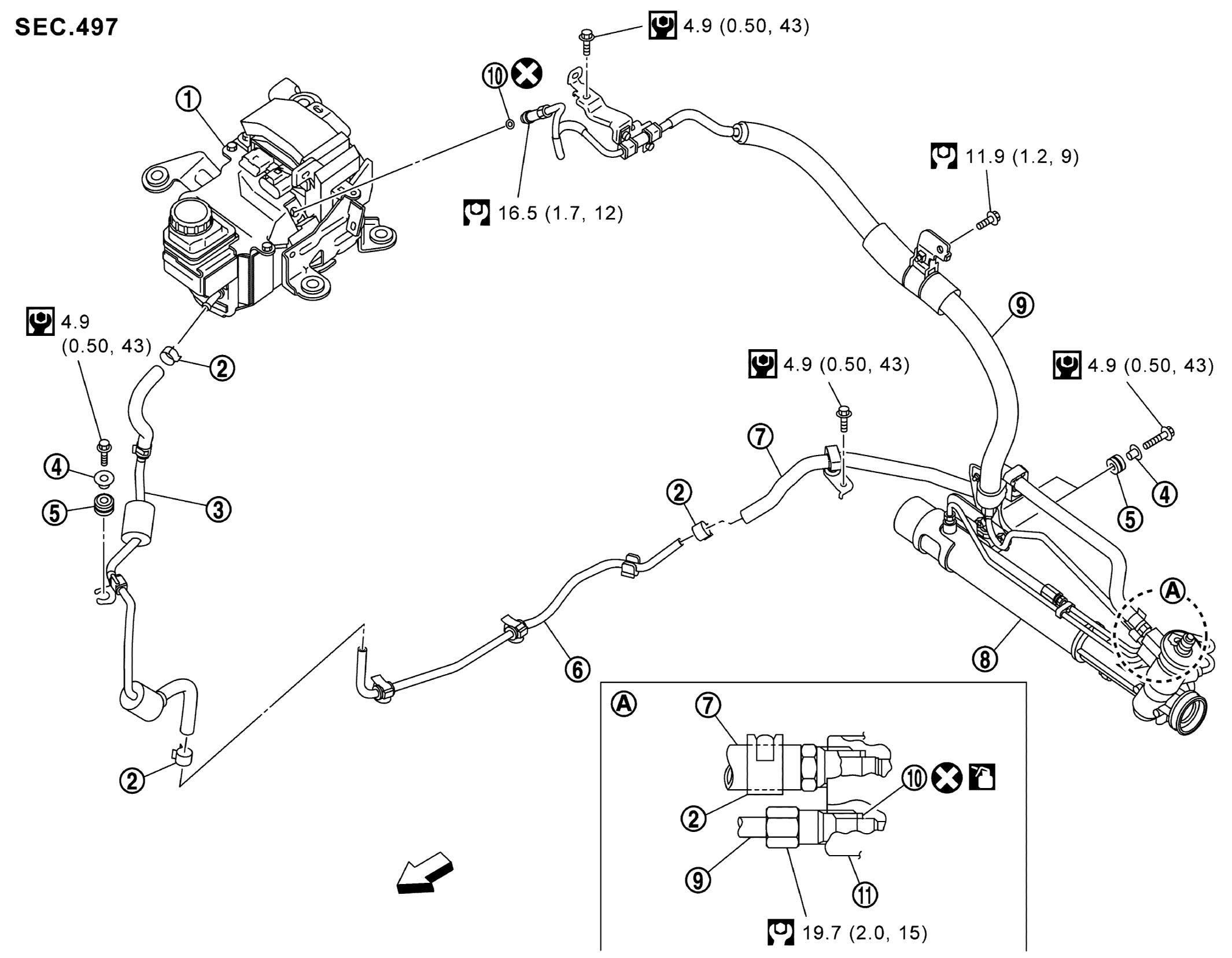

Fig 1: Hydraulic Line With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering oil pump assembly	2.	Clamp	3.	Return hose assembly
4.	Collar	5.	Bushing	6.	Return tube
7.	Return hose	8.	Steering gear assembly	9.	High pressure piping
10.	O-ring	11.	Gear housing assembly
A.	Location in steering gear assembly
: Vehicle front
: N•m (kg - m, in - lb)
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
