Exploded View

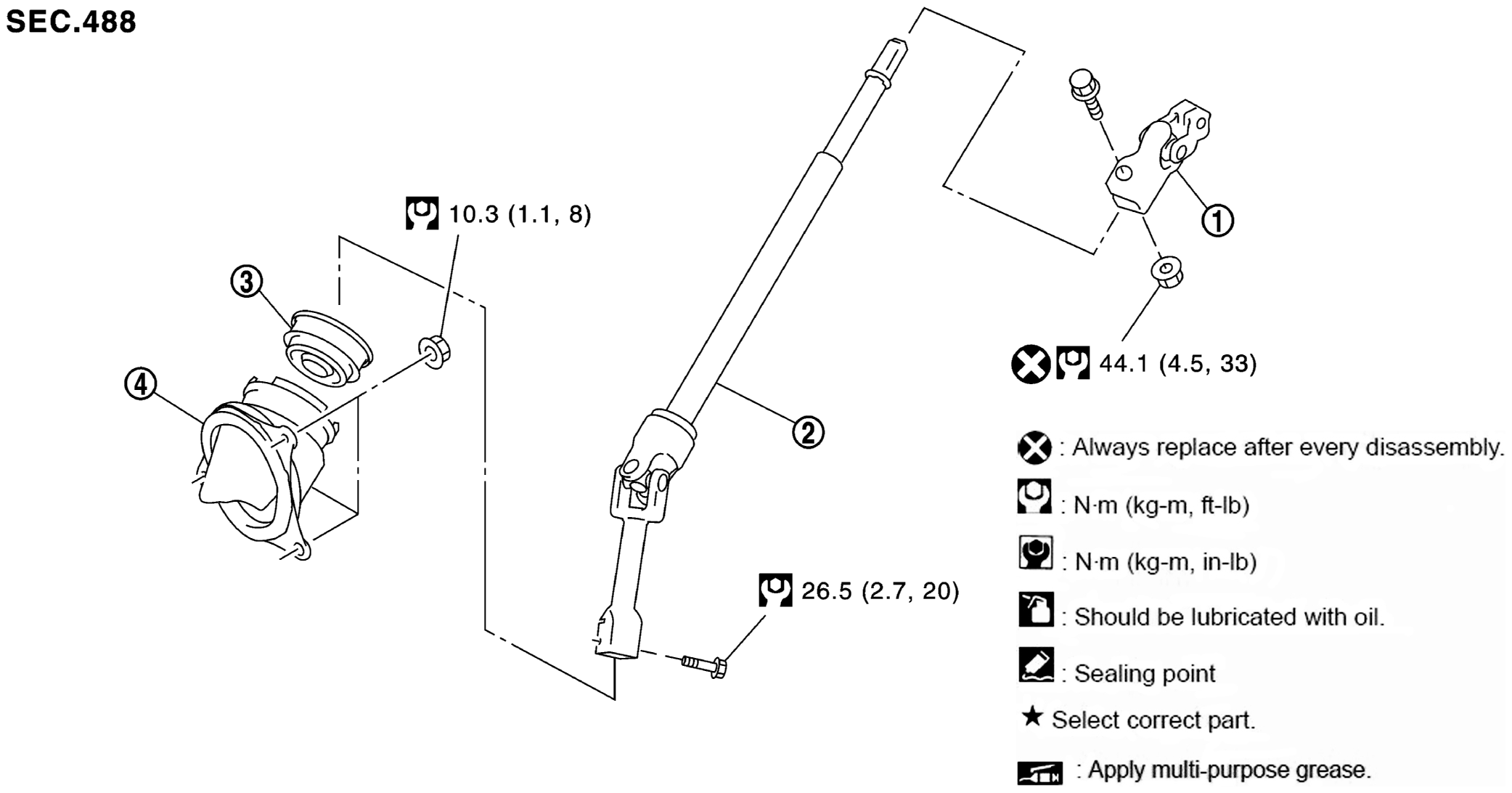

Fig 1: Steering Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper joint	2.	Intermediate shaft	3.	Hole cover seal
4.	Hole cover
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
