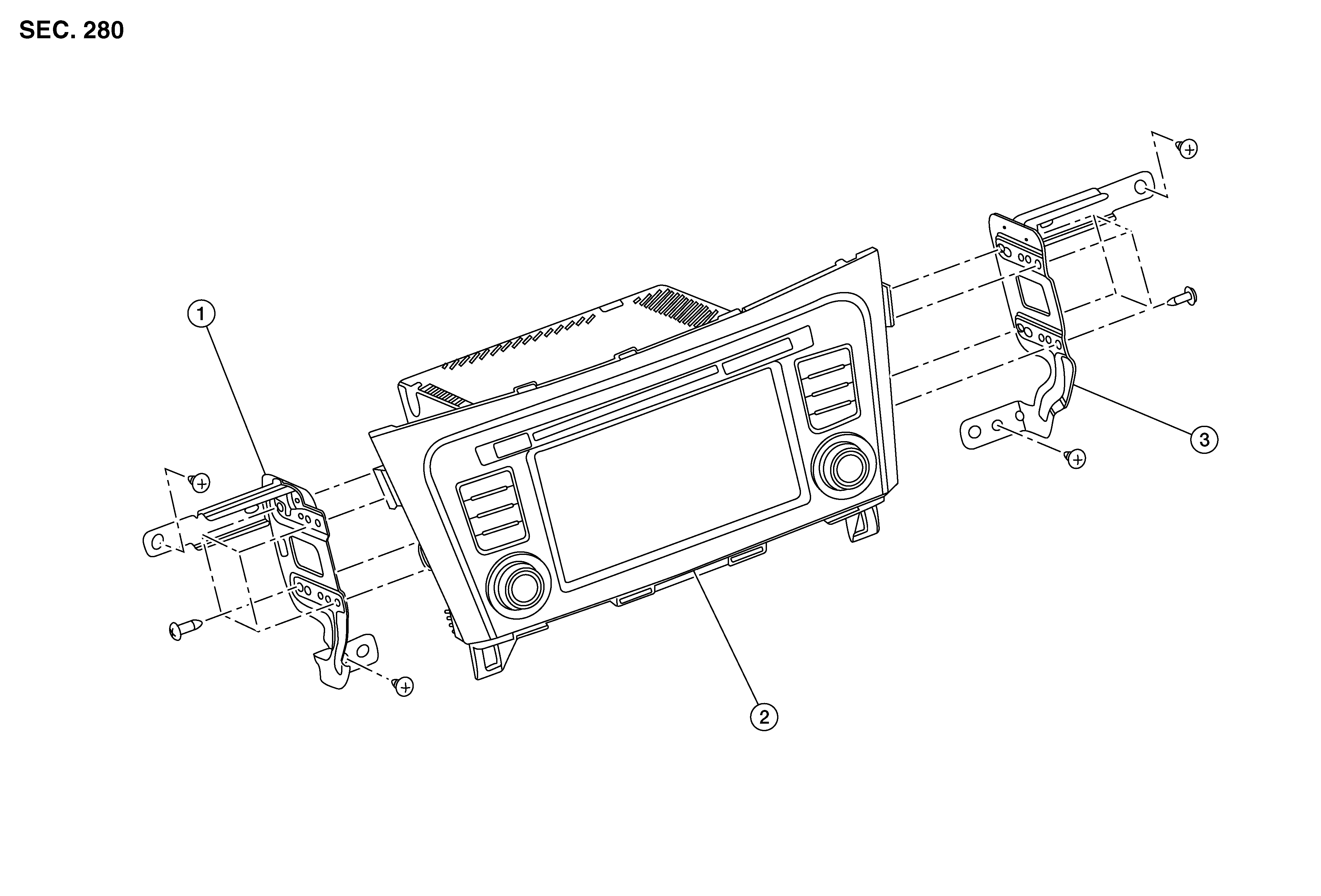

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
AV control unit bracket (LH)
2.
AV control unit
3.
AV control unit bracket (RH)
