ICC System Display (On The Information Display)

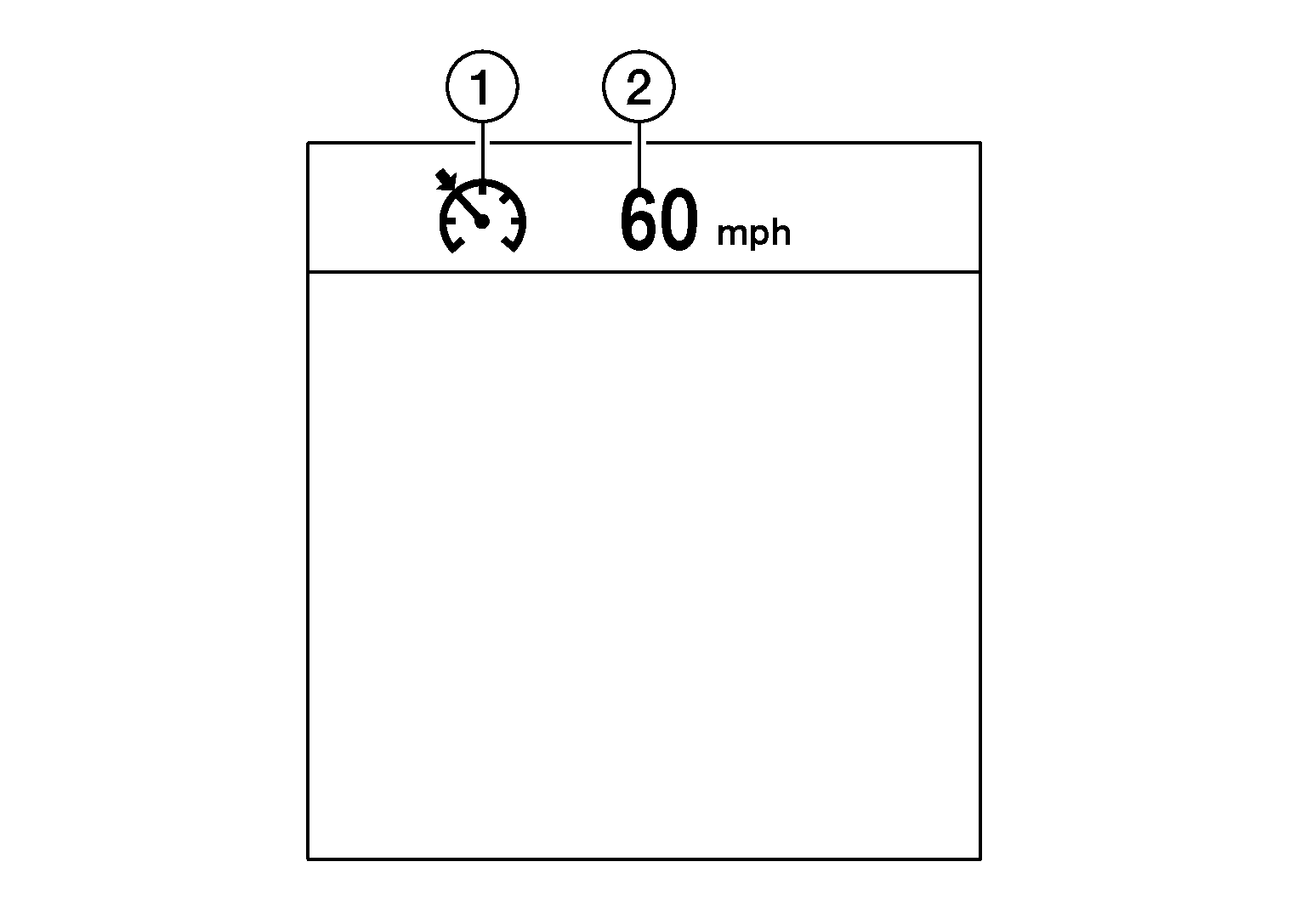

GNSALOIA0593ZZ-593Courtesy of NISSAN NORTH AMERICA, INC.
No. Display item Description
1 MAIN switch indicator (gray) White: Indicates that the main switch is ON (ICC system ON)
MAIN switch indicator (yellow) Orange: Indicates that a malfunction occurred in the ICC system
MAIN switch indicator (green) Green: Indicates that the cruising speed is set.
2 Set speed indicator Indicates that the set conventional (fixed speed) cruise control mode is controlled
