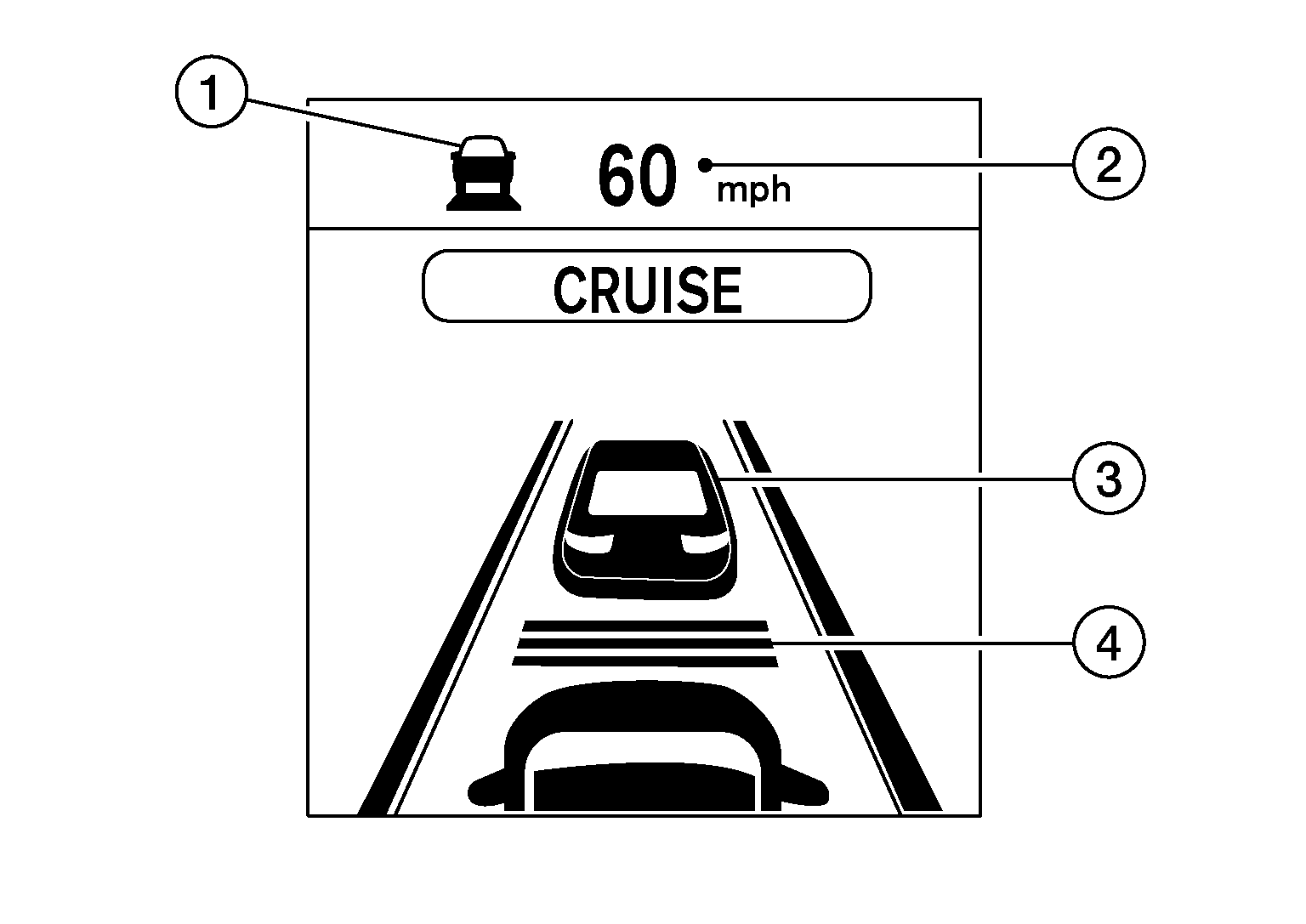

| 1 |
Main switch indicator (gray) |
Gray: Indicates the main switch is ON (ICC system ON) |
| Main switch indicator (yellow) |
Orange: Indicates that a malfunction occurred in the ICC system |
| Main switch indicator (green) |
Green: Indicates that the cruising speed is set |
| 2 |
Set vehicle speed indicator |
- Indicates the set vehicle speed
- Indicates 32 km/h (20 MPH) when setting less than 32 km/h (20 MPH)
|
| 3 |
Vehicle ahead detection indicator |
Indicates whether it detects a vehicle ahead |
| 4 |
Set distance indicator |
Indicates the selected distance between vehicles set with the DISTANCE switch |
