Exploded View With Torque Specifications

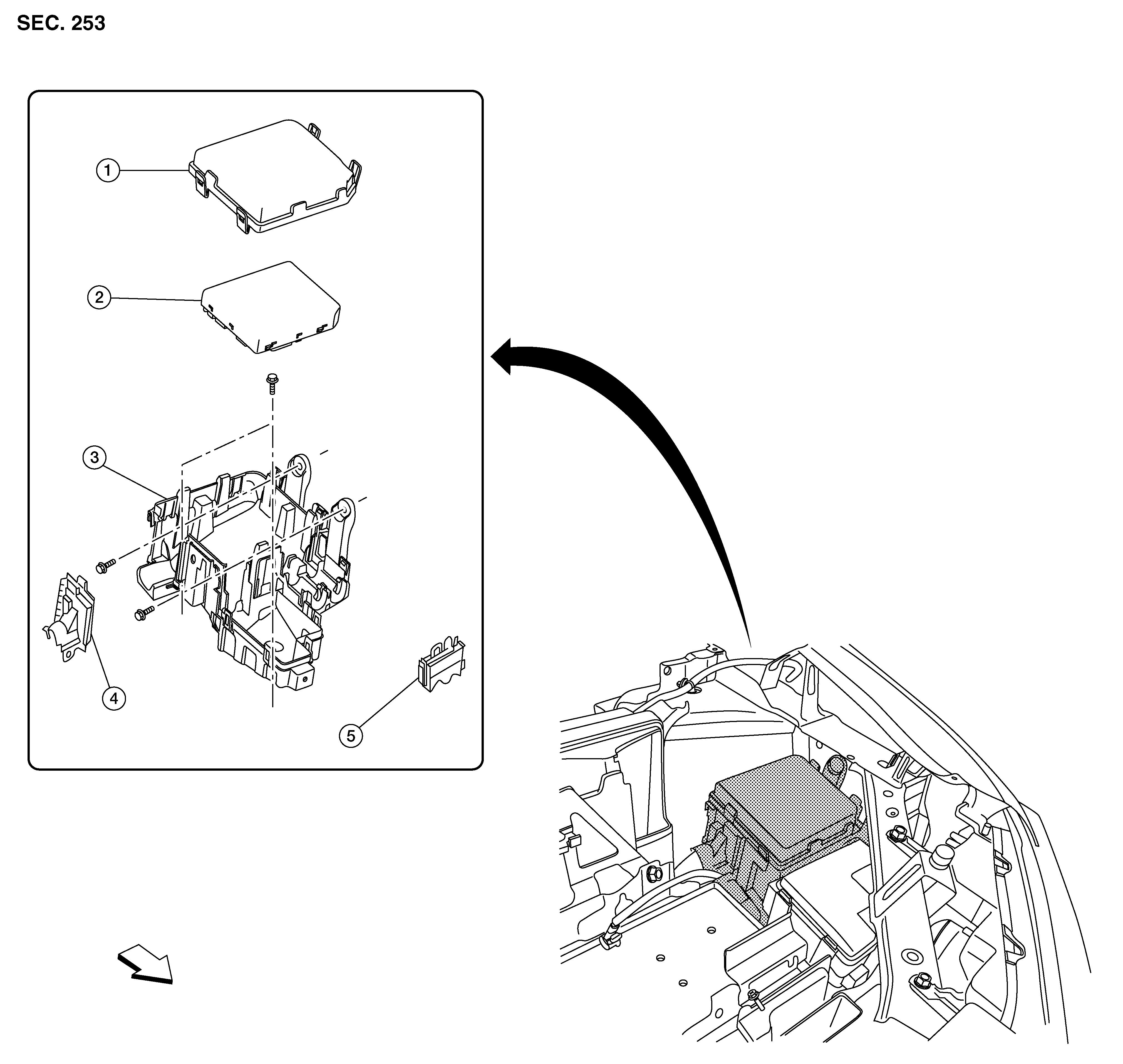

GNSALMIA0705ZZ-705Courtesy of NISSAN NORTH AMERICA, INC.
1. IPDM E/R cover 2. IPDM E/R 3. IPDM E/R case
4. IPDM E/R harness cover A 5. IPDM E/R harness cover B ARROW Front
