Repair and Diagnosis (Single Page)
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heater & Air Conditioning Control System (Automatic Air Conditioning) (Except Hybrid)
>>
System Description
>>
Operation
>>
Switch Name And Function
>>
Control Operation
>>
A/C Switch Assembly
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

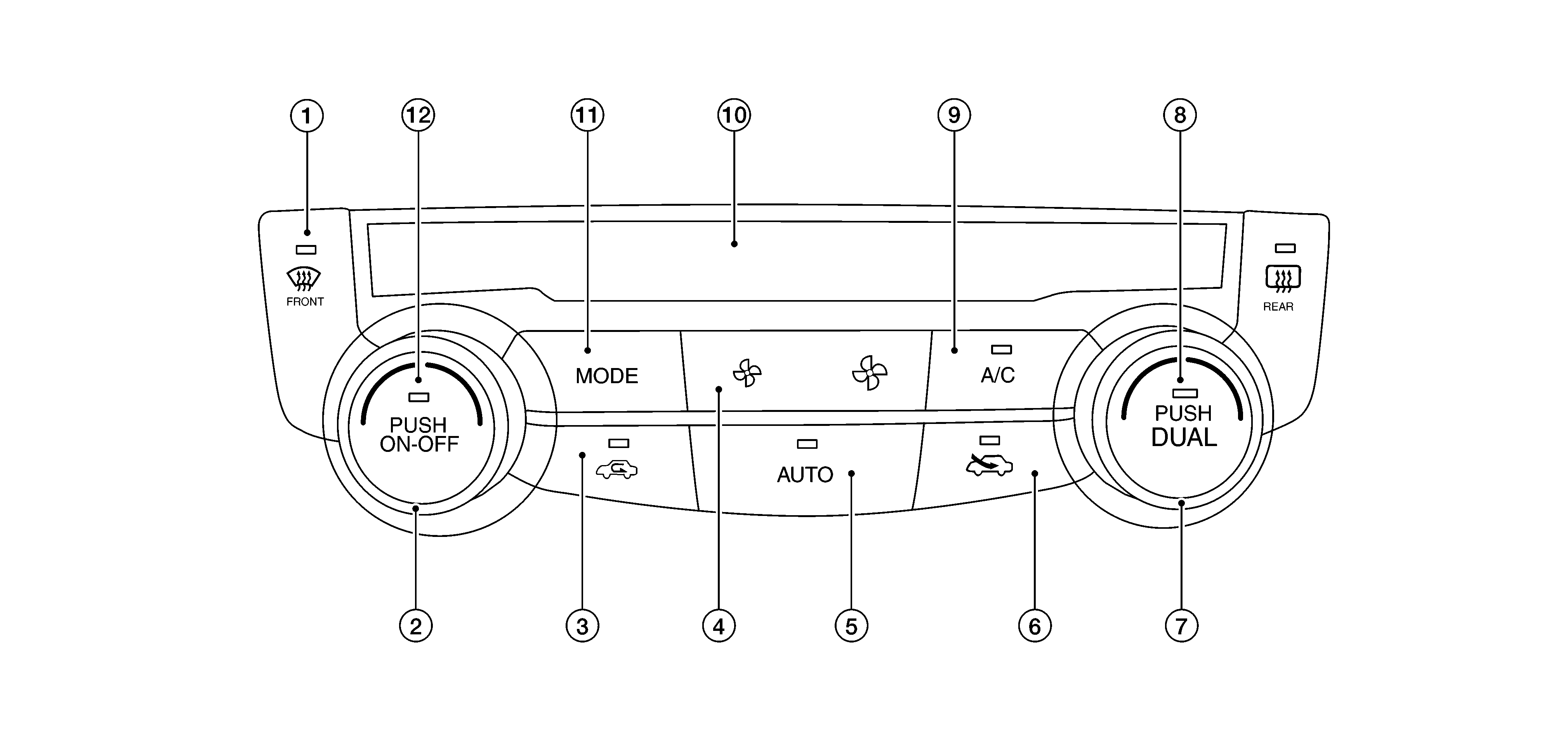

A/C Switch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Defroster switch
2.
Temperature control dial (driver side)
3.
Recirculation switch
4.
Fan control switch
5.
AUTO switch
6.
Fresh air switch
7.
Temperature control dial (passenger side)
8.
DUAL switch
9.
A/C switch
10.
Display
11.
Mode switch
12.
ON/OFF switch
