Exploded View

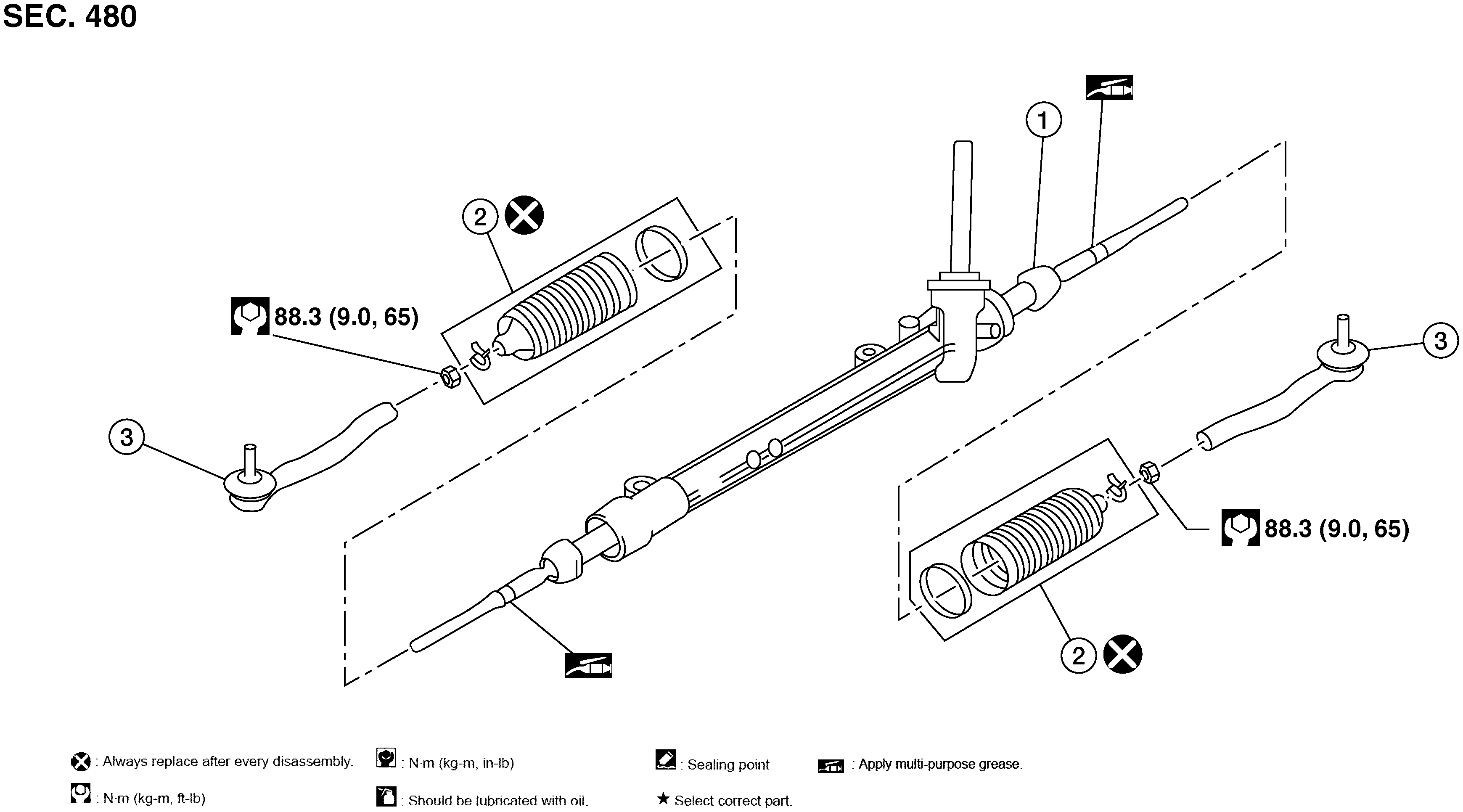

Fig 1: Steering Gear And Linkage Unit Disassembly And Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering gear
2.
Boot
3.
Outer socket
