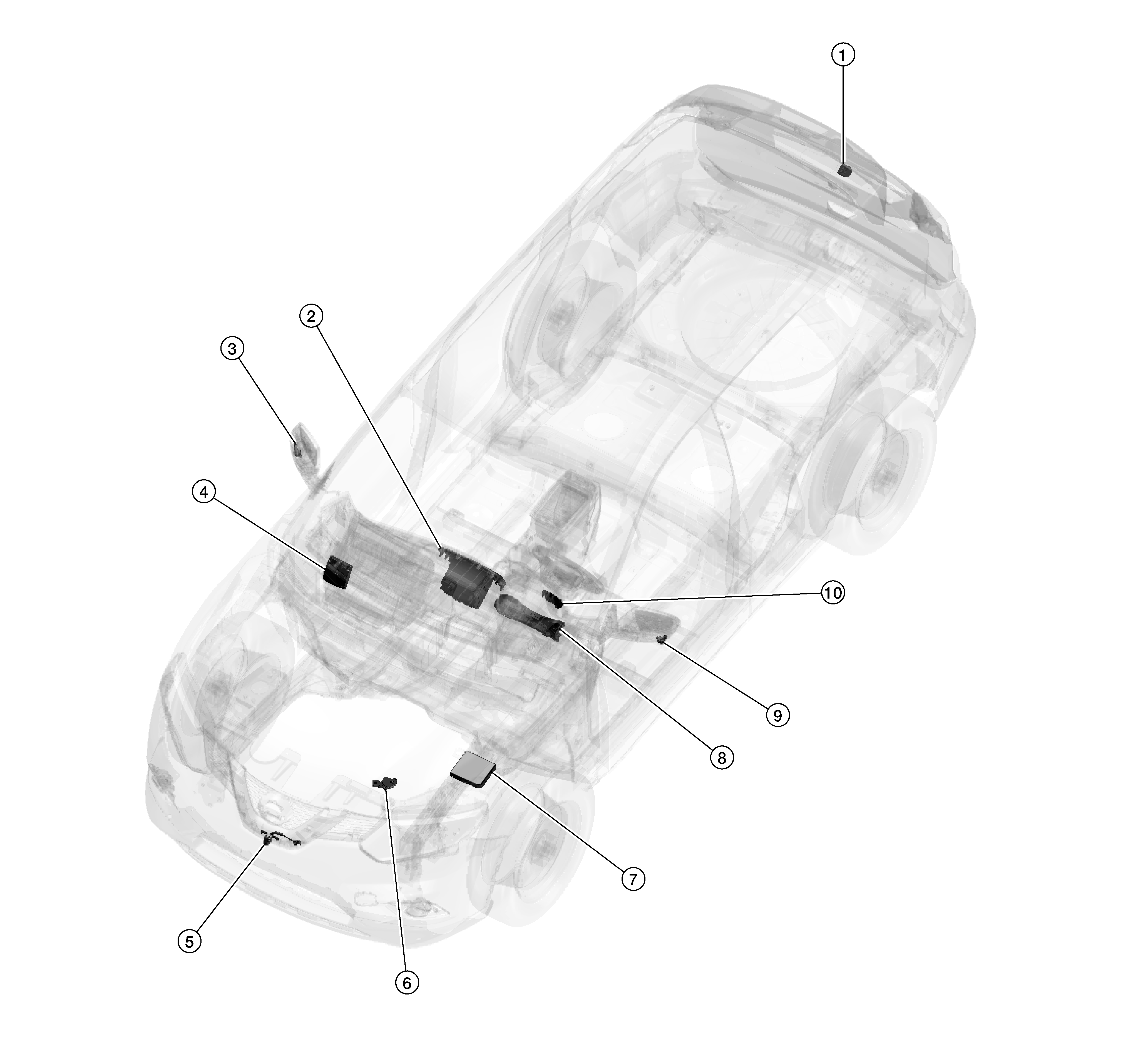

Component Location
WARNING: This page is about a different variant/trim than selected.
| No. | Component | Function |
|---|---|---|
| 1. | Rear view camera | Refer to REAR VIEW CAMERA . |
| 2. | AV control unit | Refer to AV CONTROL UNIT . |
| 3. | Door mirror RH | Refer to SIDE CAMERAS . |
| 4. | Around view monitor control unit | Refer to AROUND VIEW MONITOR CONTROL UNIT . |
| 5. | Front camera | Refer to FRONT CAMERA . |
| 6. | Transmission range switch | Refer to TRANSMISSION RANGE SWITCH . |
| 7. | IPDM E/R | Refer to COMPONENT LOCATION . |
| 8. | Combination meter | Refer to COMBINATION METER . |
| 9. | Door mirror LH | Refer to SIDE CAMERAS . |
| 10. | Steering angle sensor | Refer to STEERING ANGLE SENSOR . |
