Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. Refer to REMOVAL AND INSTALLATION (BATTERY) .
  2. Remove instrument lower panel LH and instrument side finisher LH. Refer to REMOVAL AND INSTALLATION .
  3. Remove fuse block (J/B) screws (A) and position (BCM) aside.

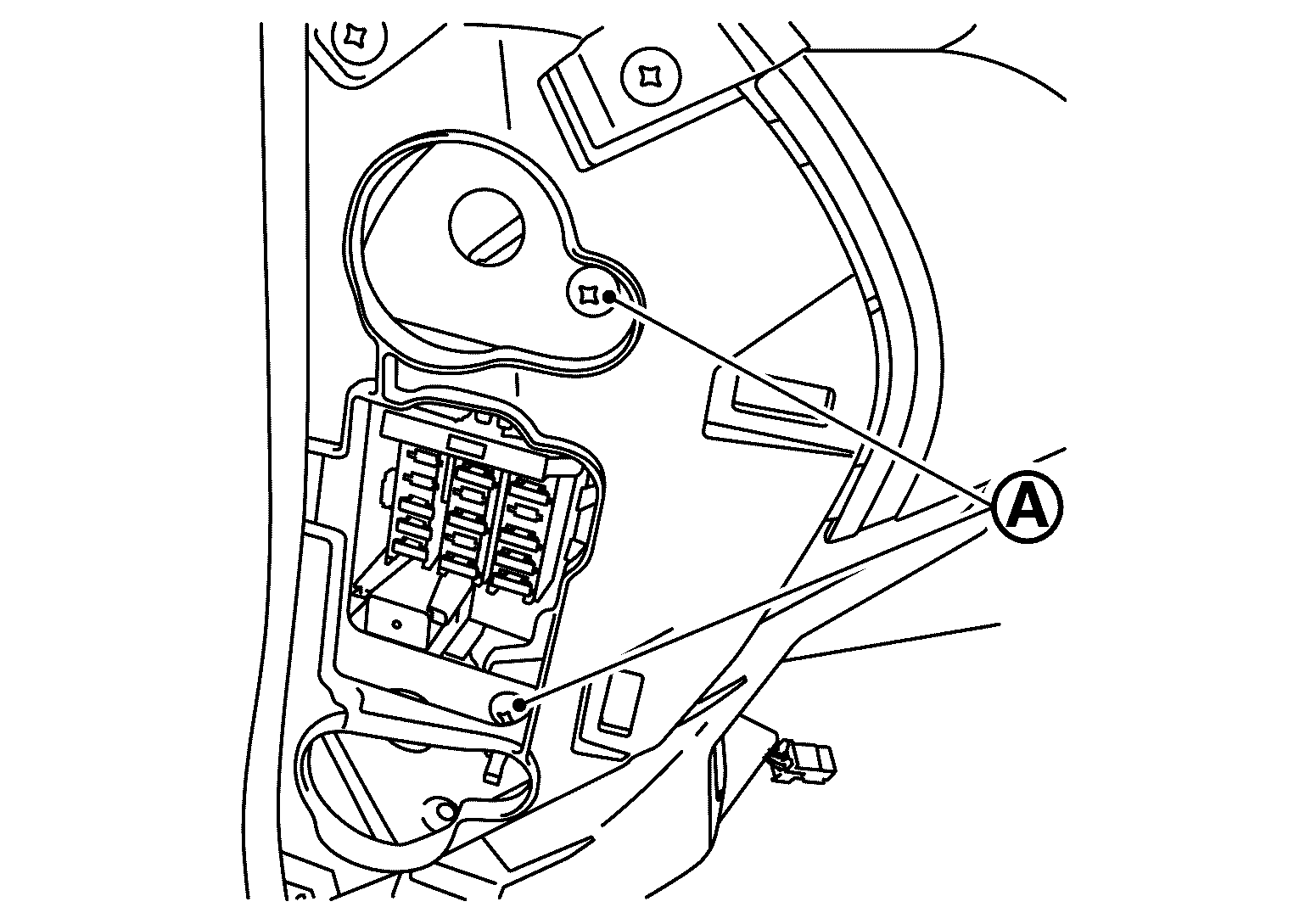

    Fig 1: Fuse Block Screws
    G08991638Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove harness clip (A).

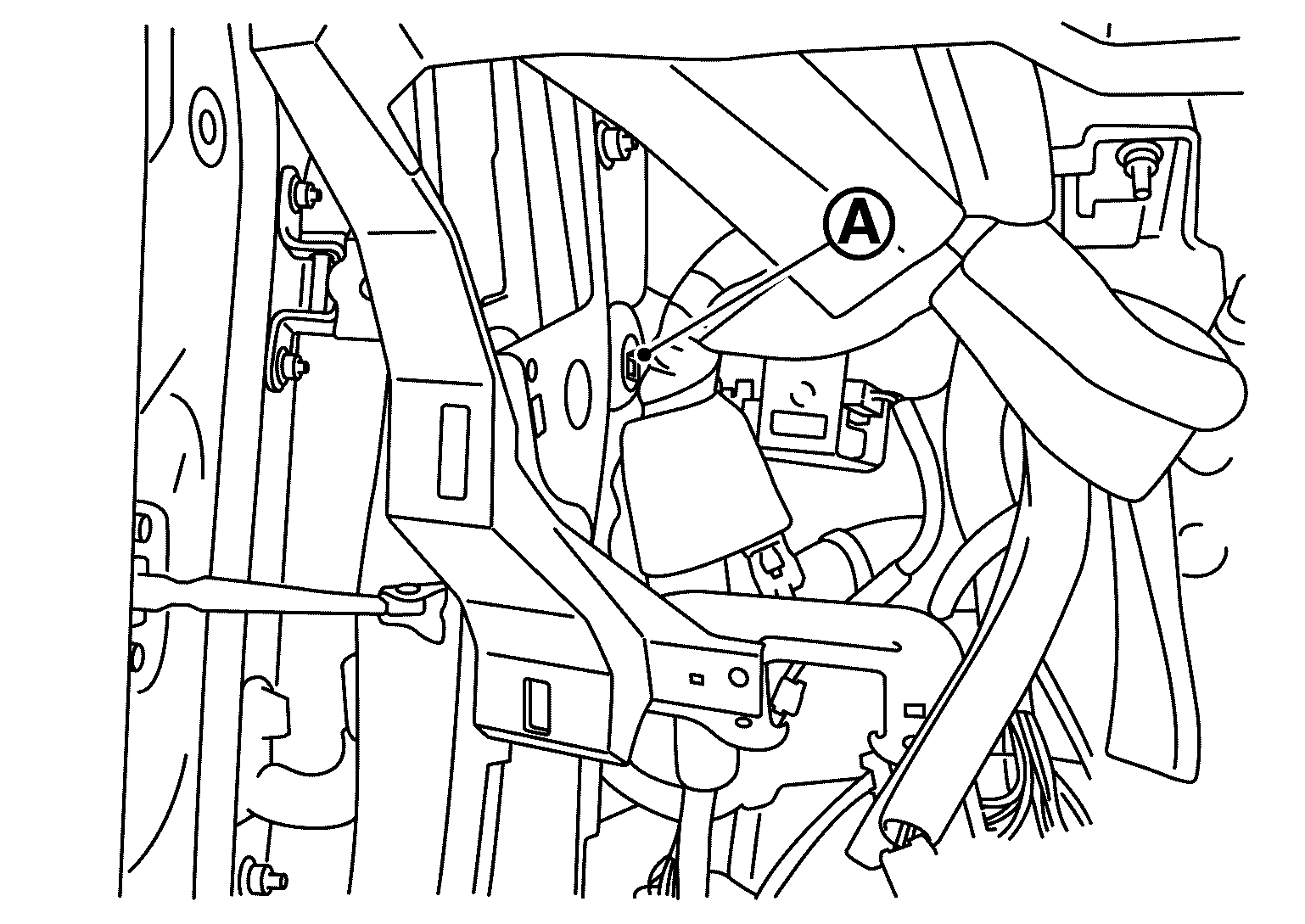

    Fig 2: Harness Clip
    G08991639Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the screws (A) from the BCM (1).

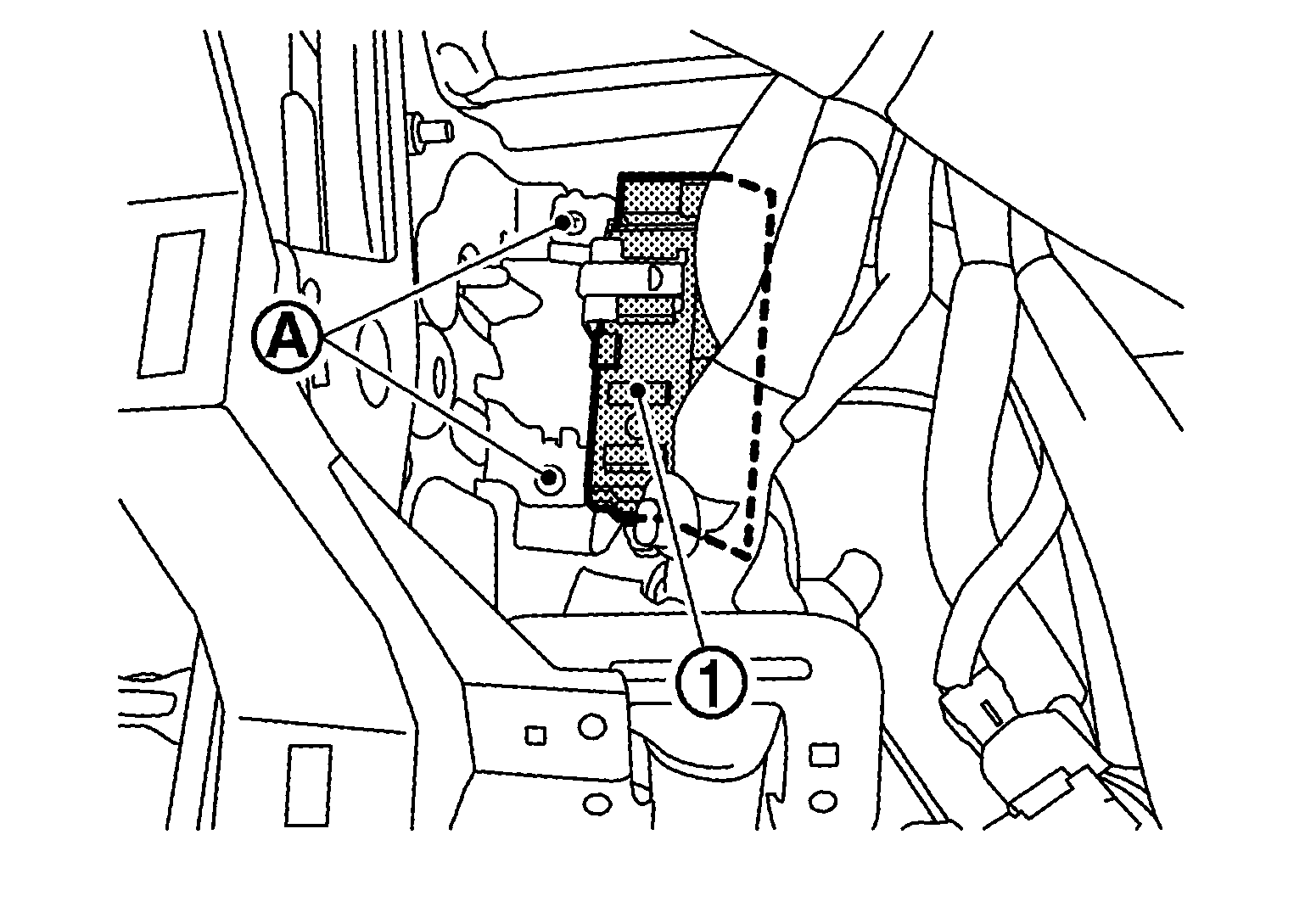

    Fig 3: BCM And Screws
    G08991640Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect the harness connectors and remove the BCM.
