Exploded View With Torque Specifications

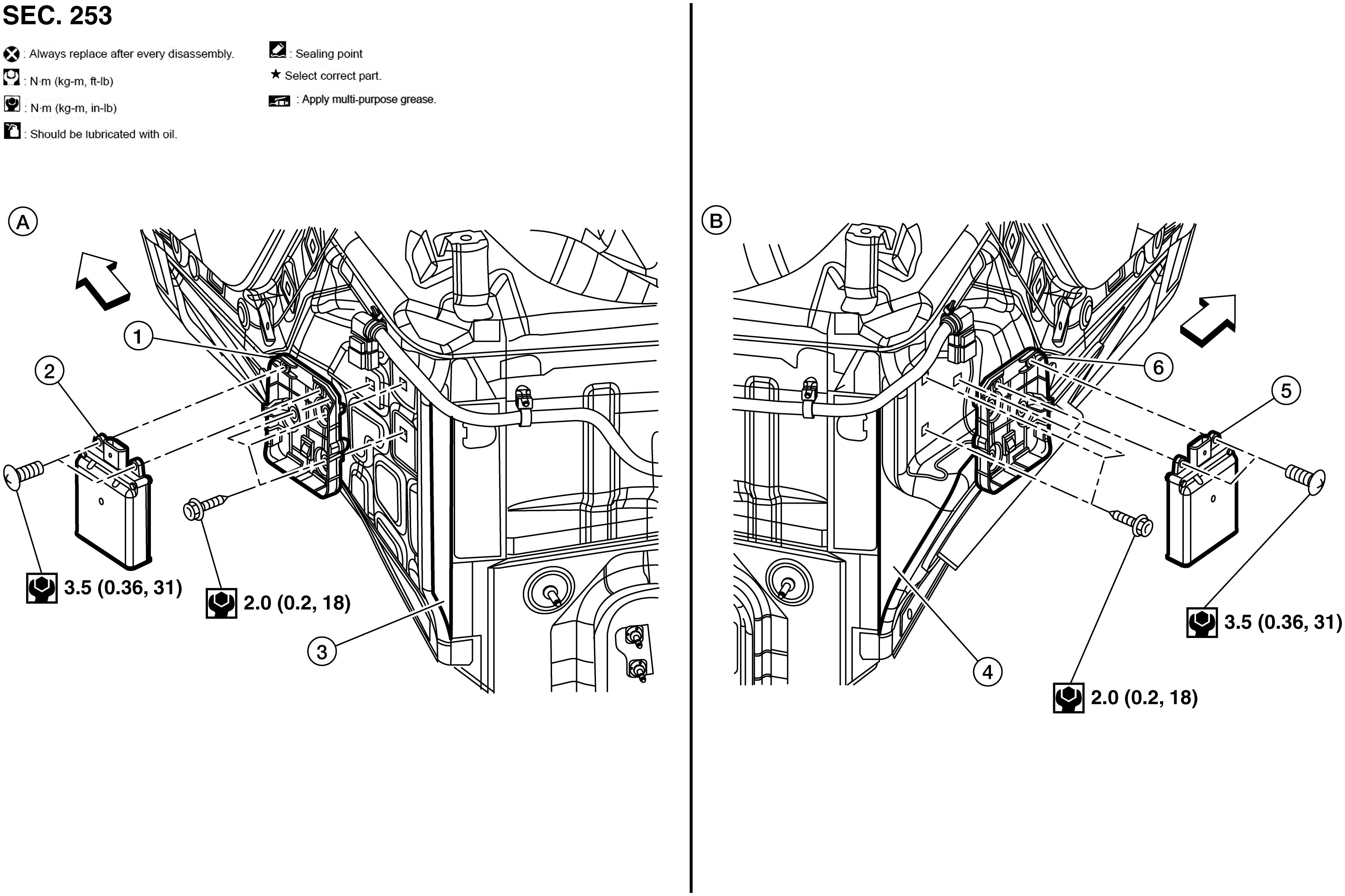

GNSAWOIA0191ZZ-191Courtesy of NISSAN NORTH AMERICA, INC.
1. Side radar bracket (LH) 2. Side radar (LH) 3. Rear fender (LH)
4. Rear fender (RH) 5. Side radar (RH) 6. Side radar bracket (RH)
A. LH side B. RH side ARROW Front
