Brake Pedal Position Switch / Stop Lamp Switch

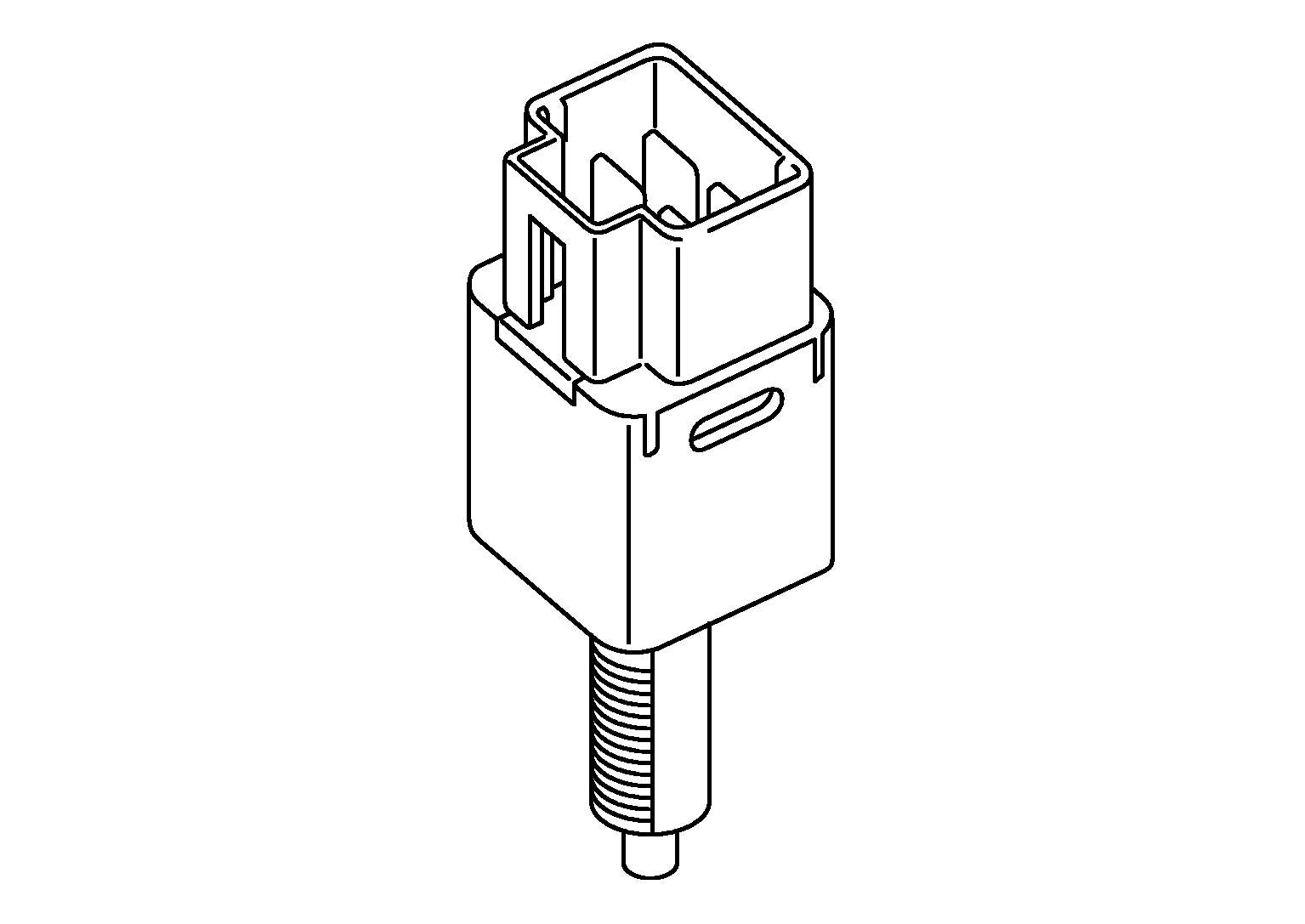

Brake pedal position switch is installed at the upper part of the brake pedal and detects a brake operation performed by the driver.

Courtesy of NISSAN NORTH AMERICA, INC.
Brake pedal position switch is turned OFF when depressing the brake pedal.
Brake pedal position switch signal is input to ECM. Brake pedal position switch signal is transmitted from ECM to ADAS control unit via CAN communication.

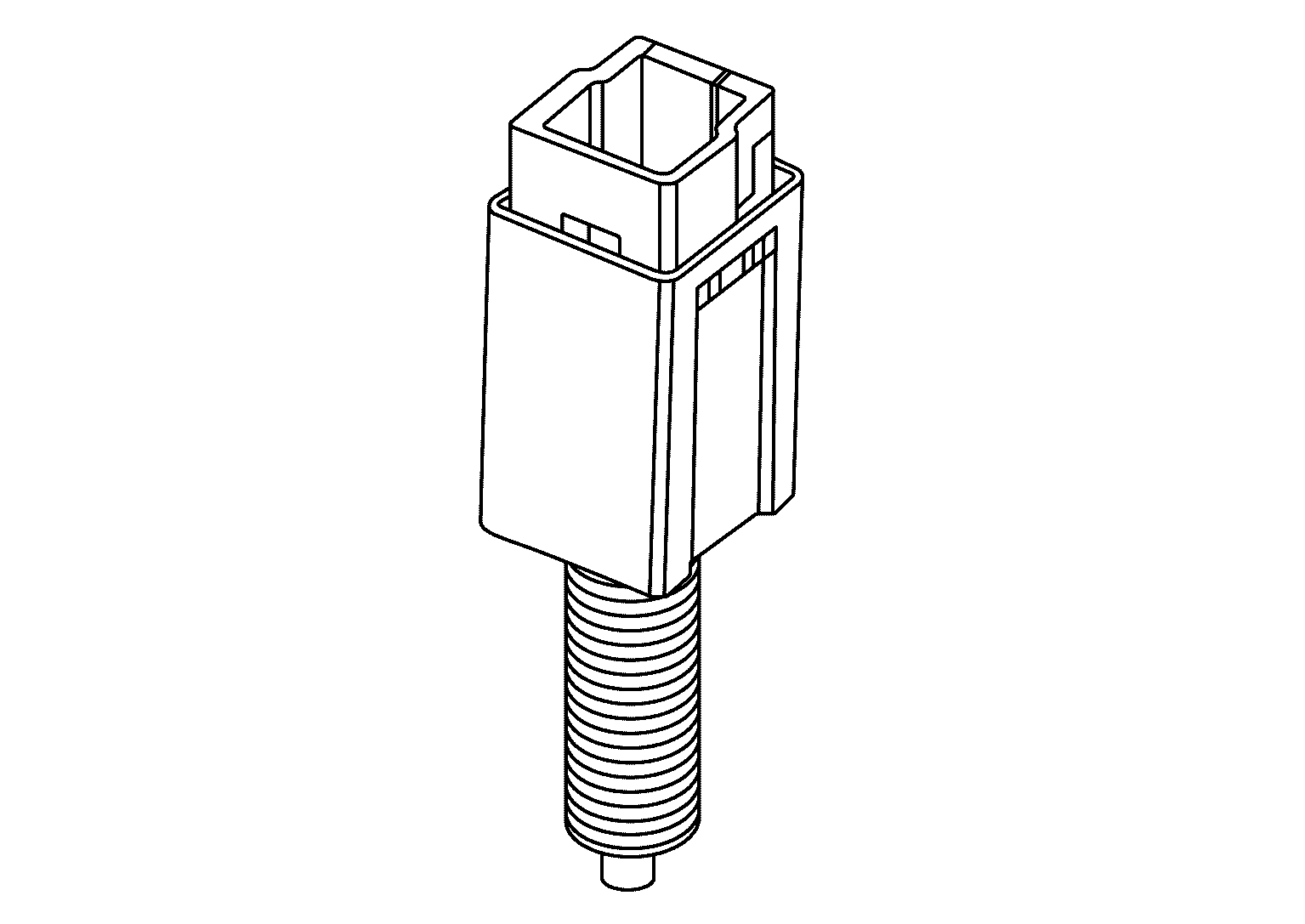

Stop lamp switch is installed at the upper part of the brake pedal and detects a brake operation performed by the driver.

Courtesy of NISSAN NORTH AMERICA, INC.
Stop lamp switch is turned ON when depressing the brake pedal.
Stop lamp switch signal is input to ECM and ABS actuator and electric unit (control unit). Stop lamp switch signals are transmitted from ECM and ABS actuator and electric unit (control unit) to ADAS control unit via CAN communication.
