Exploded View With Torque Specifications

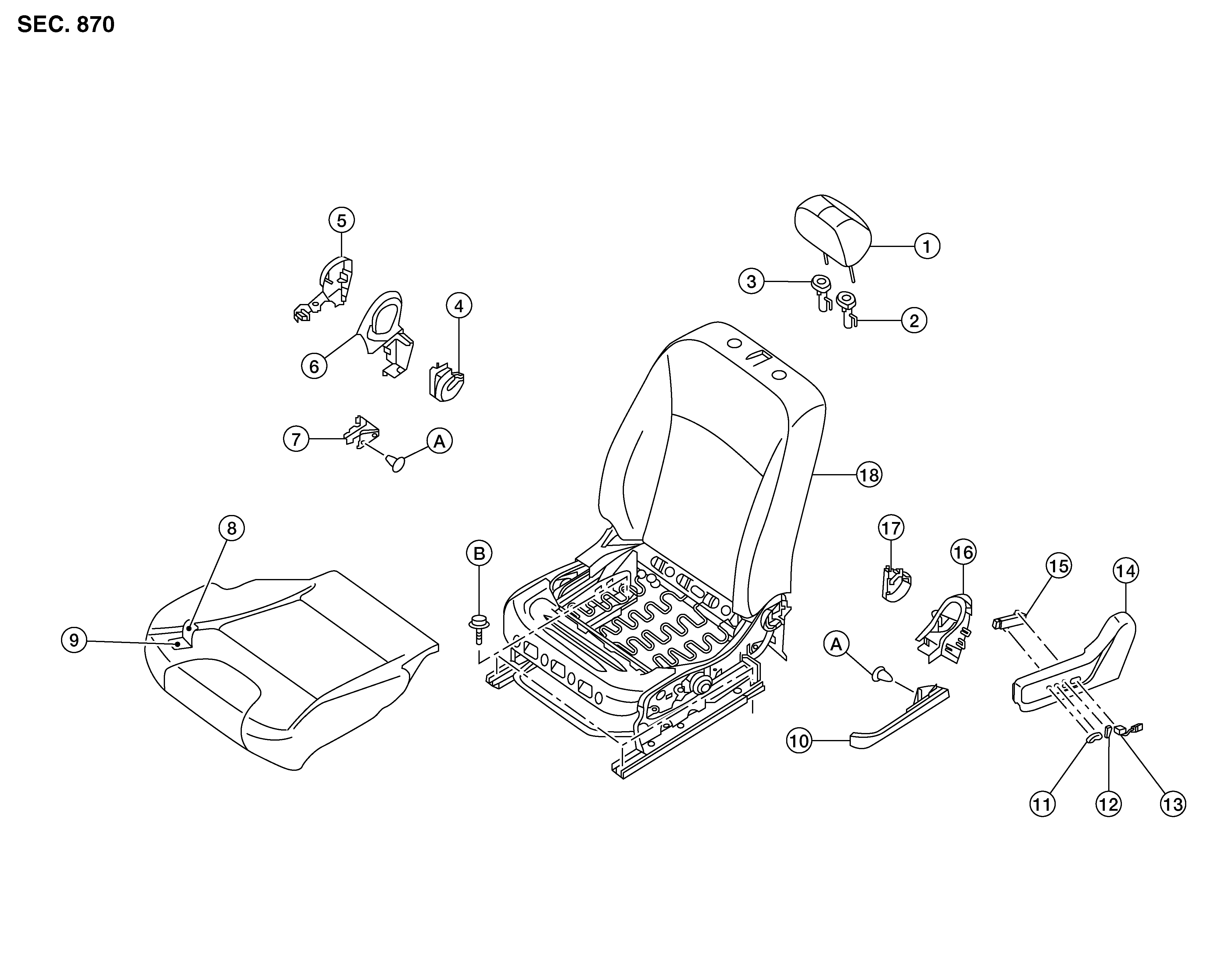

POWER SEAT
| 1. | Headrest | 2. | Headrest holder (locked) | 3. | Headrest holder (free) |
| 4. | Recline mechanism cover (RH) | 5. | Seat cushion outside finisher (RH) | 6. | Seat cushion inside finisher (RH) |
| 7. | Slide cover (RH) | 8. | Seat cushion trim | 9. | Seat cushion pad |
| 10. | Slide cover (LH) | 11. | Seat slide knob | 12. | Seat recline knob |
| 13. | Lumbar support switch | 14. | Seat cushion outer finisher (LH) | 15. | Power seat switch |
| 16. | Seat cushion inner finisher (LH) | 17. | Recline mechanism cover (LH) | 18. | Seat assembly |
| A. | Clip | B. | Refer to INSTALLATION |

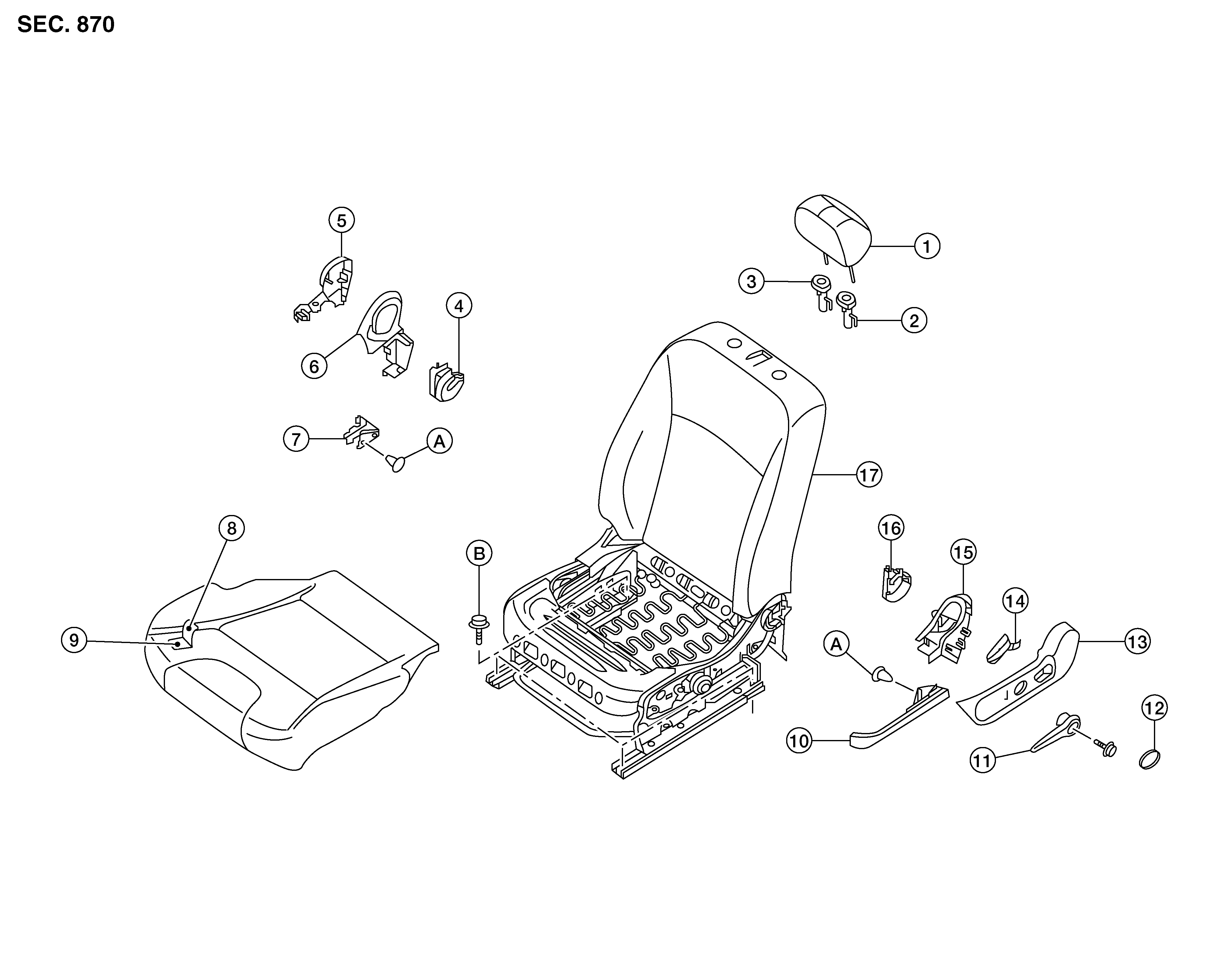

MANUAL SEAT
| 1. | Headrest | 2. | Headrest holder (locked) | 3. | Headrest holder (free) |
| 4. | Recline mechanism cover (RH) | 5. | Seat cushion outer finisher (RH) | 6. | Seat cushion inner finisher (RH) |
| 7. | Slide cover (RH) | 8. | Seat cushion trim | 9. | Seat cushion pad |
| 10. | Slide cover (LH) | 11. | Lift lever | 12. | Lift lever finisher |
| 13. | Seat cushion outer finisher (LH) | 14. | Recline lever | 15. | Seat cushion inner finisher (LH) |
| 16. | Recline mechanism cover (LH) | 17. | Seat assembly | A. | Clip |
| B. | Refer to INSTALLATION |
