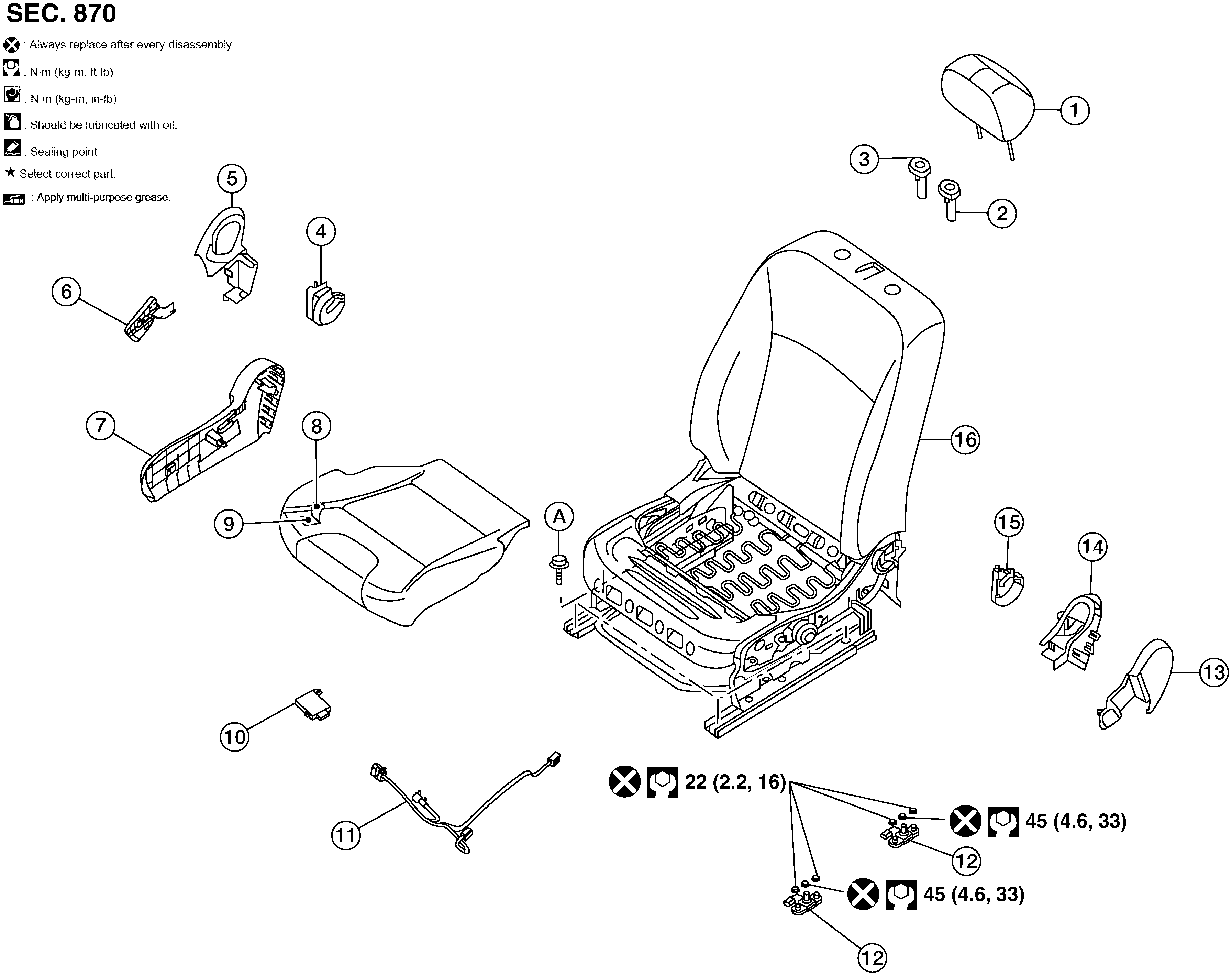

Exploded View With Torque Specifications
PASSENGER SEAT
| 1. | Headrest | 2. | Headrest holder (locked) | 3. | Headrest holder (free) |
| 4. | Recline mechanism cover (RH) | 5. | Seat cushion inner finisher (RH) | 6. | Recline lever |
| 7. | Seat cushion outer finisher (RH) | 8. | Seat cushion trim | 9. | Seat cushion pad |
| 10. | Occupant classification system control unit | 11. | Occupant classification system harness | 12. | Occupant classification system sensor |
| 13. | Seat cushion outer finisher (LH) | 14. | Seat cushion inner finisher (LH) | 15. | Recline mechanism cover (LH) |
| 16. | Seat assembly | A. | Refer to INSTALLATION |
