Exploded View With Torque Specifications

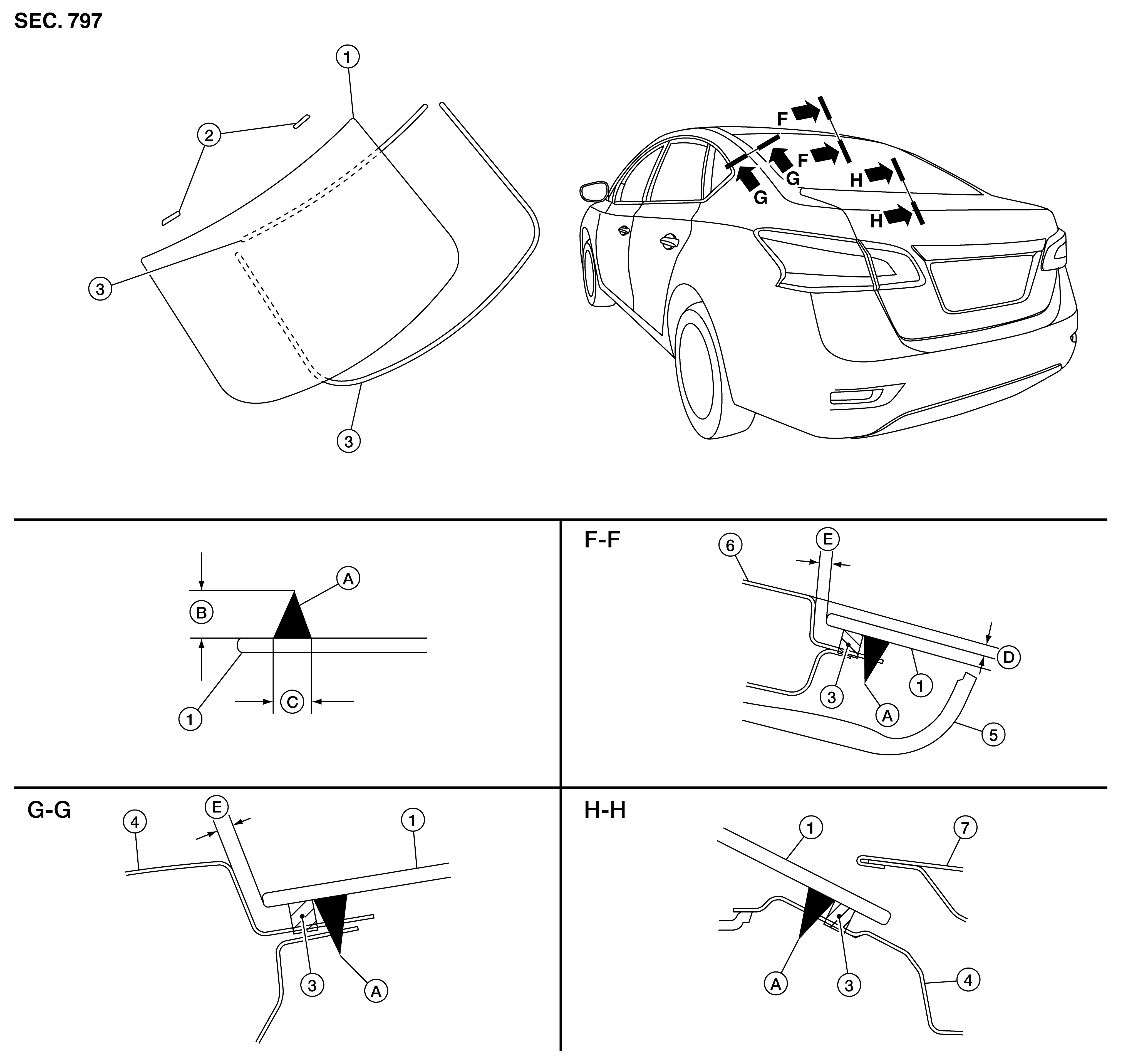

GNSALKIA2819ZZ-819Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear window glass 2. Spacer 3. Rubber dam
4. Body side outer 5. Headlining 6. Roof panel
7. Trunk lid A. Adhesive B. 12 mm (0.5 in)
C. 7 mm (0.3 in) D. 2.0 mm (0.08 in) E. 3 mm (0.1 in)
