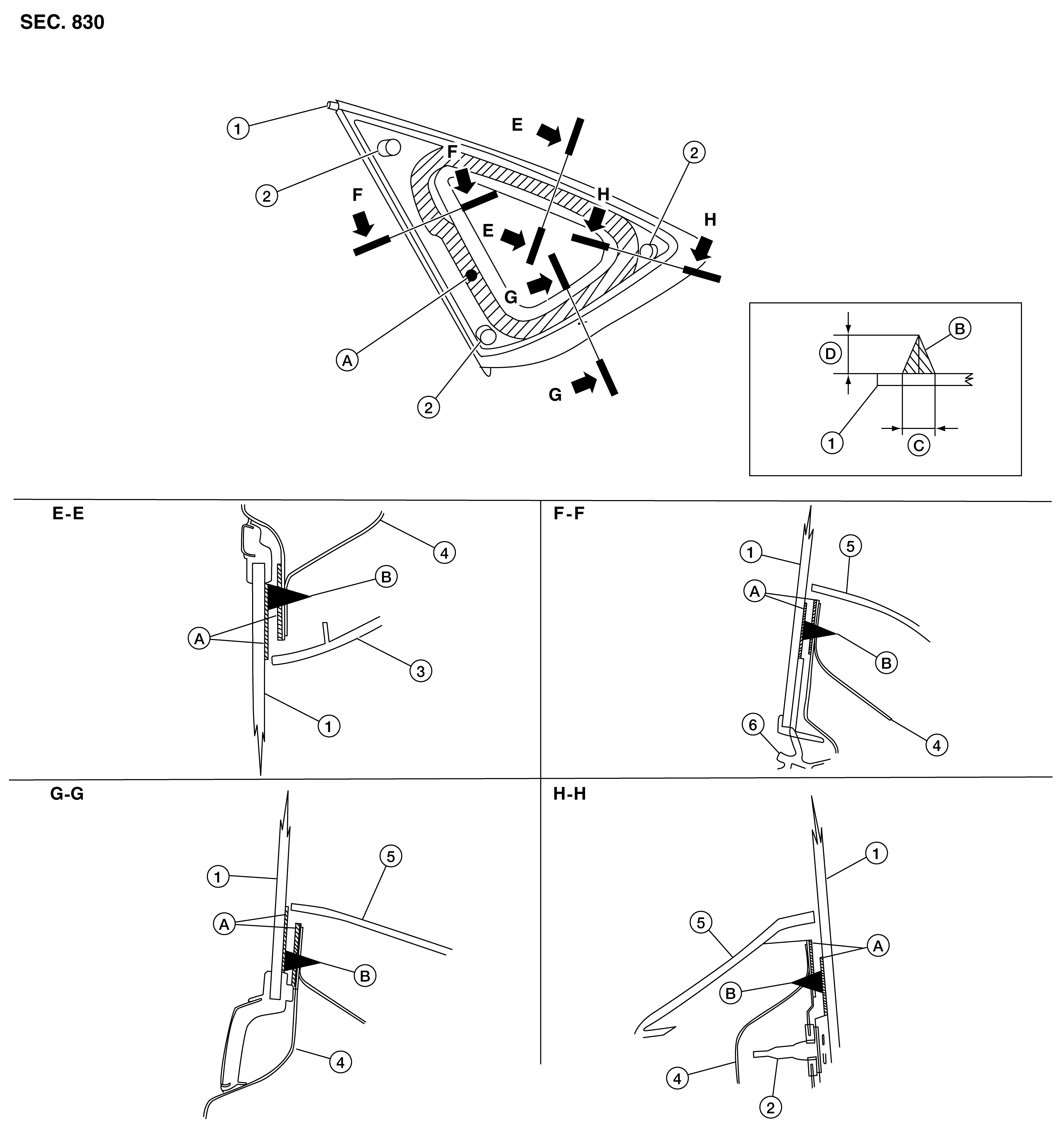

Side Window Glass: Components
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Side window glass
2.
Spacer
3.
Headlining
4.
Rear body pillar
5.
Rear pillar finisher
6.
Rear door weather-strip
A.
Primer area
B.
Adhesive
C.
7 mm (0.3 in)
D.
12 mm (0.5 in)
Courtesy of NISSAN NORTH AMERICA, INC.
