Communication Diagnosis

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the DISP button, and the M-CAN message transmission error history screen is displayed.

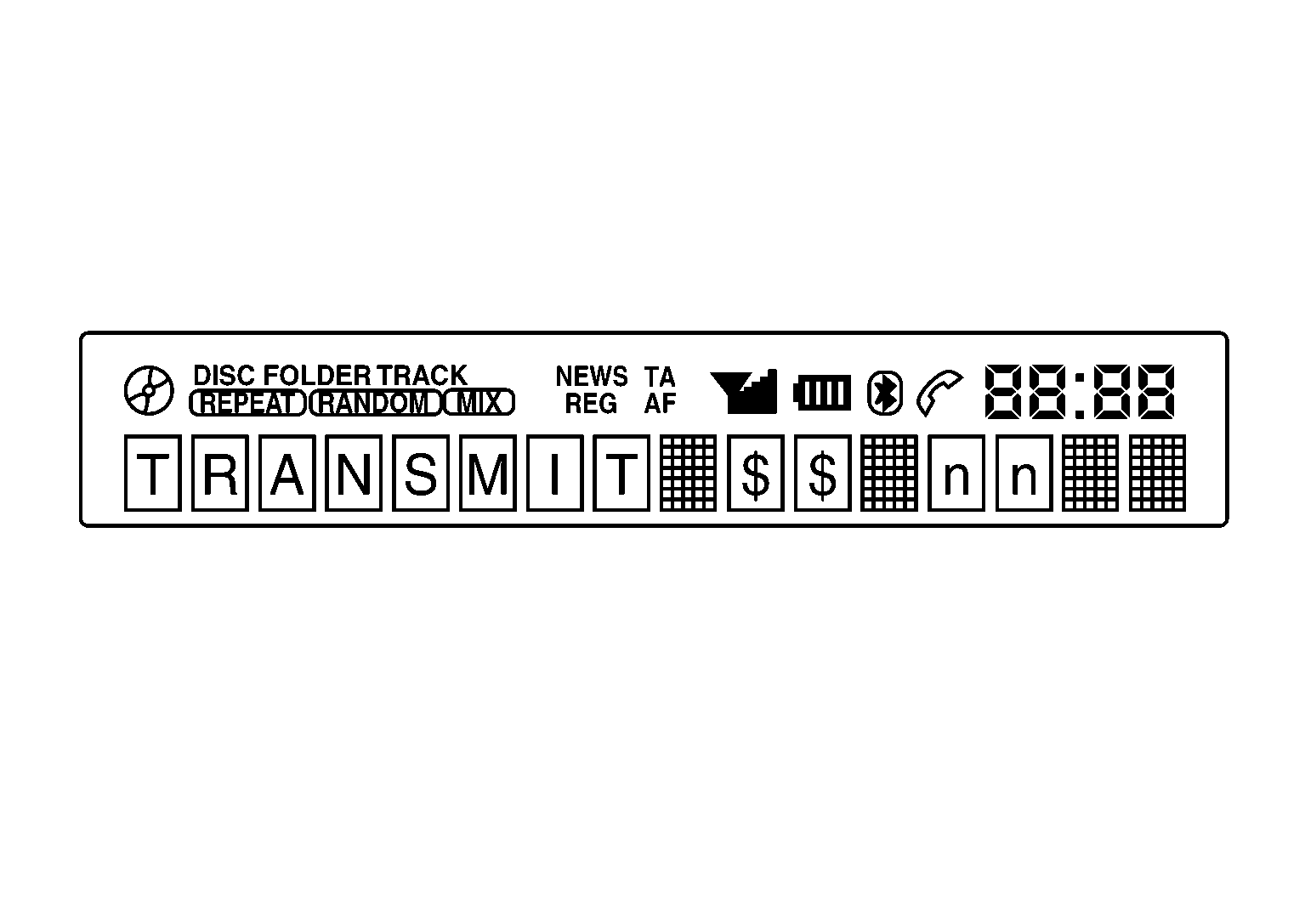

    Fig 1: Display -- M-CAN Message Transmission Error History Screen
    G08687005Courtesy of NISSAN NORTH AMERICA, INC.
  2. Press the DISP button again, and the TEL $$ nn (CMF message reception error history from M-CAN TEL) screen is displayed.
  3. Press the DISP button again, and the TROUBLE DEL. (deletion of M-CAN message communication history) screen is displayed. To retain the M-CAN message communication history and return to the communication diagnosis mode screen, press the DISP button.
  4. To proceed to the M-CAN message communication history deletion screen, press the SEEK/TRACK SEEK button. The REC DEL-NO? (selection of M-CAN message communication history deletion) screen is displayed. To cancel M-CAN message communication history deletion, wait 6 seconds and you will be returned to the TROUBLE DEL. (deletion of M-CAN message communication history) screen. To proceed with M-CAN message communication history deletion, press the SEEK/TRACK SEEK button again.
  5. The REC DEL-YES?@ (selection of M-CAN message communication history deletion) screen is displayed. To cancel M-CAN message communication history deletion, press the SEEK/TRACK TRACK button and you will be returned to the REC DEL-NO? (selection of M-CAN message communication history deletion) screen. To proceed with M-CAN message communication history deletion, wait 6 seconds and the communication history deletion will be executed. After the communication history deletion has been executed, you will be returned to the TROUBLE DEL. (deletion of M-CAN message communication history) screen. To return to the communication diagnosis mode screen, press the DISP button.
