Component Inspection

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ICC BRAKE HOLD RELAY

Apply battery voltage to ICC brake hold relay terminals 1 and 2, and then check for continuity under the following conditions:

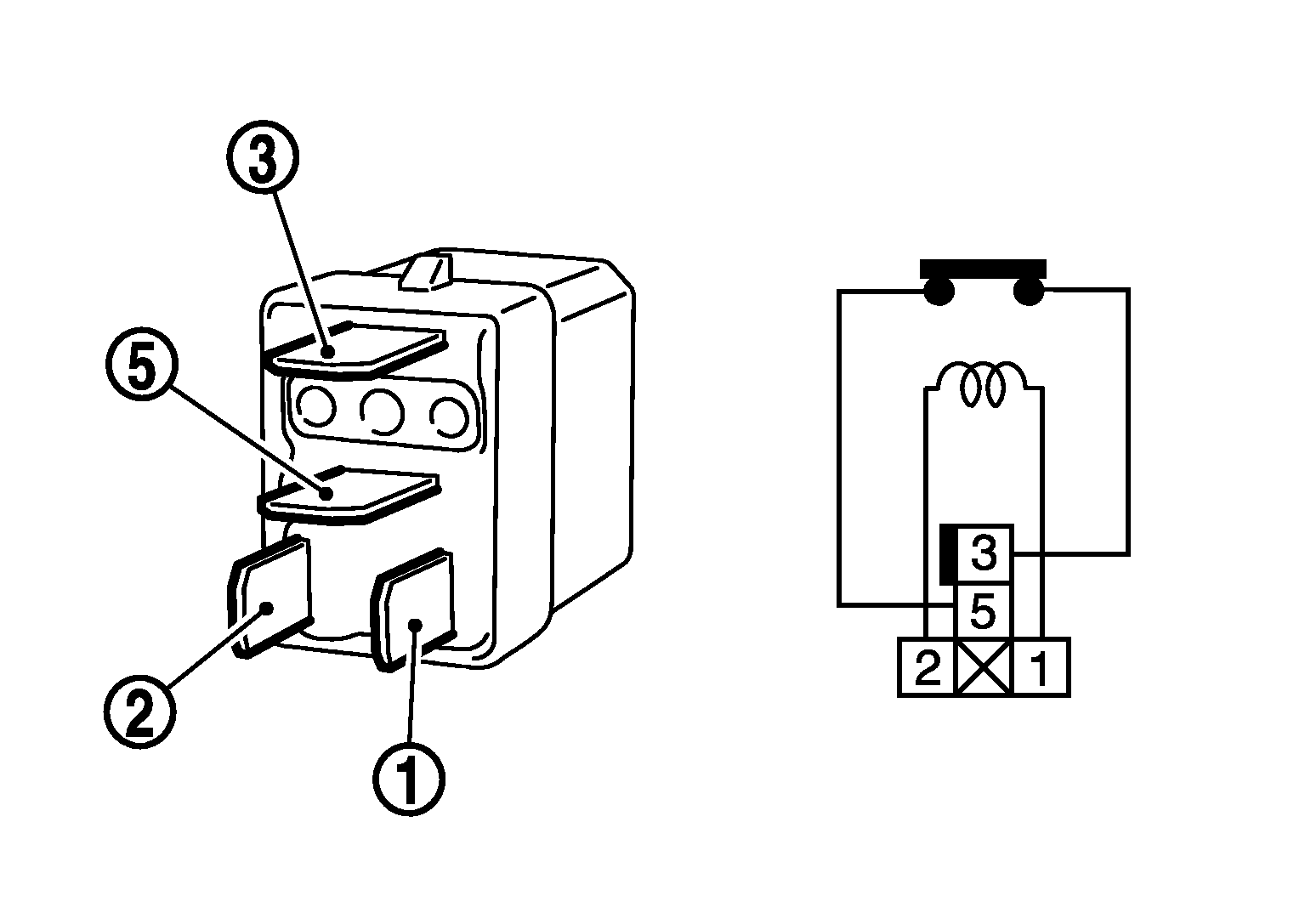

Fig 1: Checking Continuity Between ICC Brake Hold Relay Terminals

Courtesy of NISSAN NORTH AMERICA, INC.

ICC brake hold relay		Condition	Continuity
Terminals		Condition	Continuity
3	5	When the battery voltage is applied	Yes
3	5	When the battery voltage is not applied	No

Is the inspection result normal?

YES

Inspection End.

Replace ICC brake hold relay.
