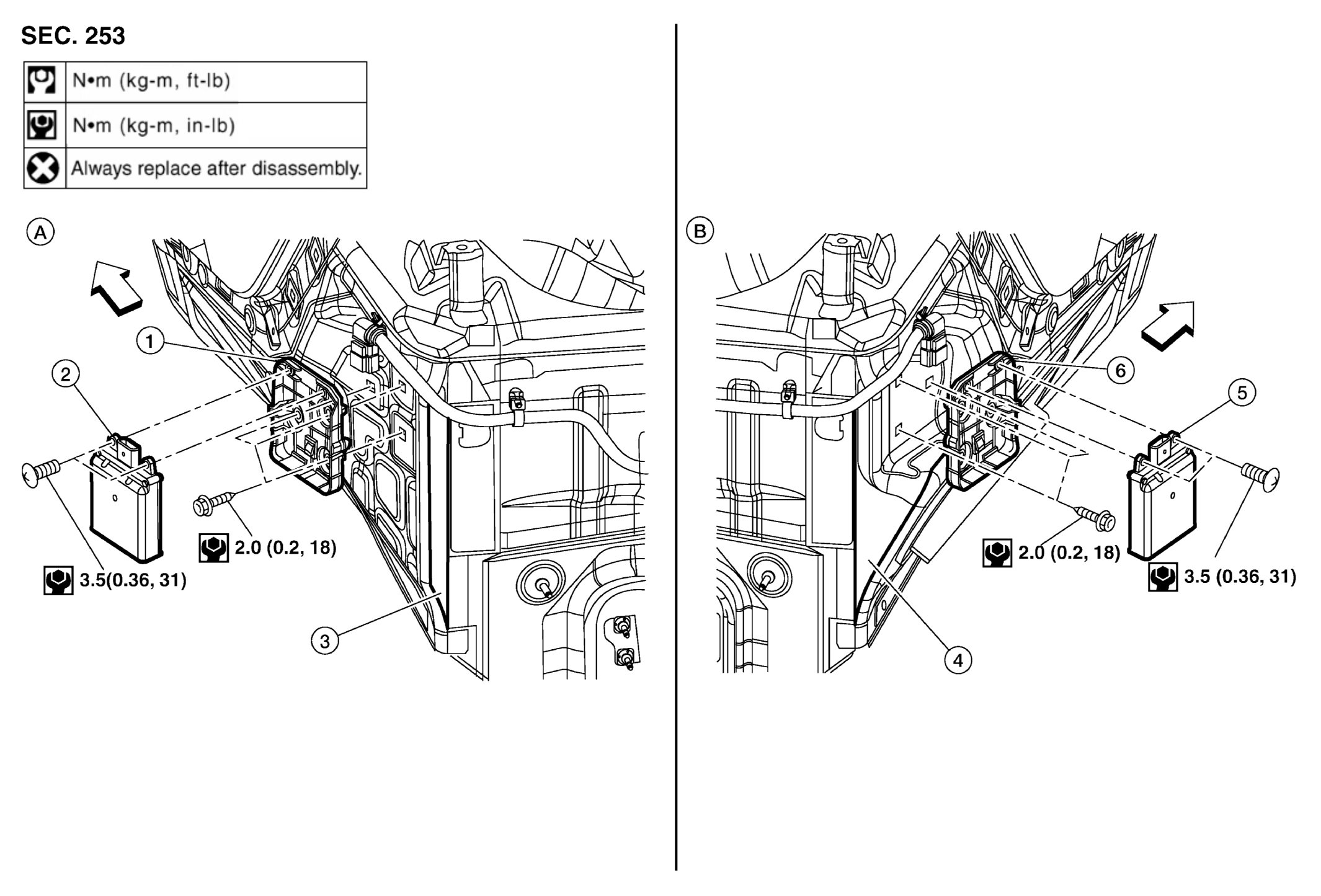

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Side radar bracket (LH) |
2. |
Side radar (LH) |
3. |
Rear fender (LH) |
| 4. |
Rear fender (RH) |
5. |
Side radar (RH) |
6. |
Side radar bracket (RH) |
| A. |
LH side |
B. |
RH side |
 |
Front |
| |
|
|
|
|
|
