Switch Name And Function

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

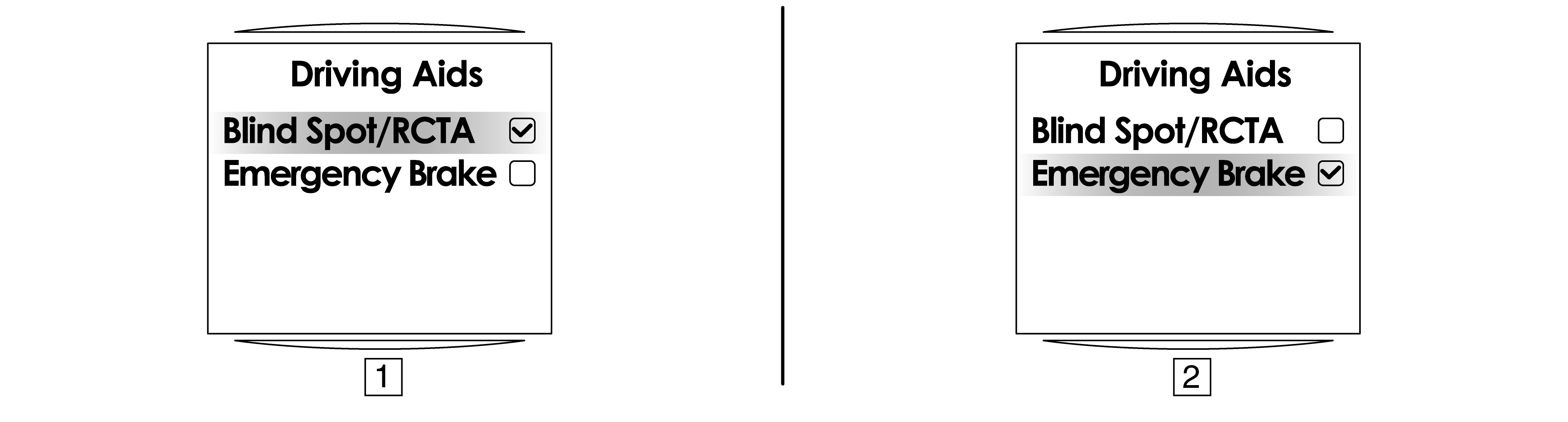

Fig 1: BSW/RCTA/FEB
GNSALOIA0371GB-371Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
1. BSW/RCTA system setting screen
(Integral switch settings screen)
The setting of BSW/RCTA system can be switched between ON and OFF on the combination meter information display.
NOTE:

When the Blind Spot Warning system is turned ON or OFF, the Rear Cross Traffic Alert system is turned ON or OFF simultaneously.

2. FEB system setting screen
(Integral switch settings screen)
The setting of FEB system can be switched between ON and OFF on the combination meter information display.
