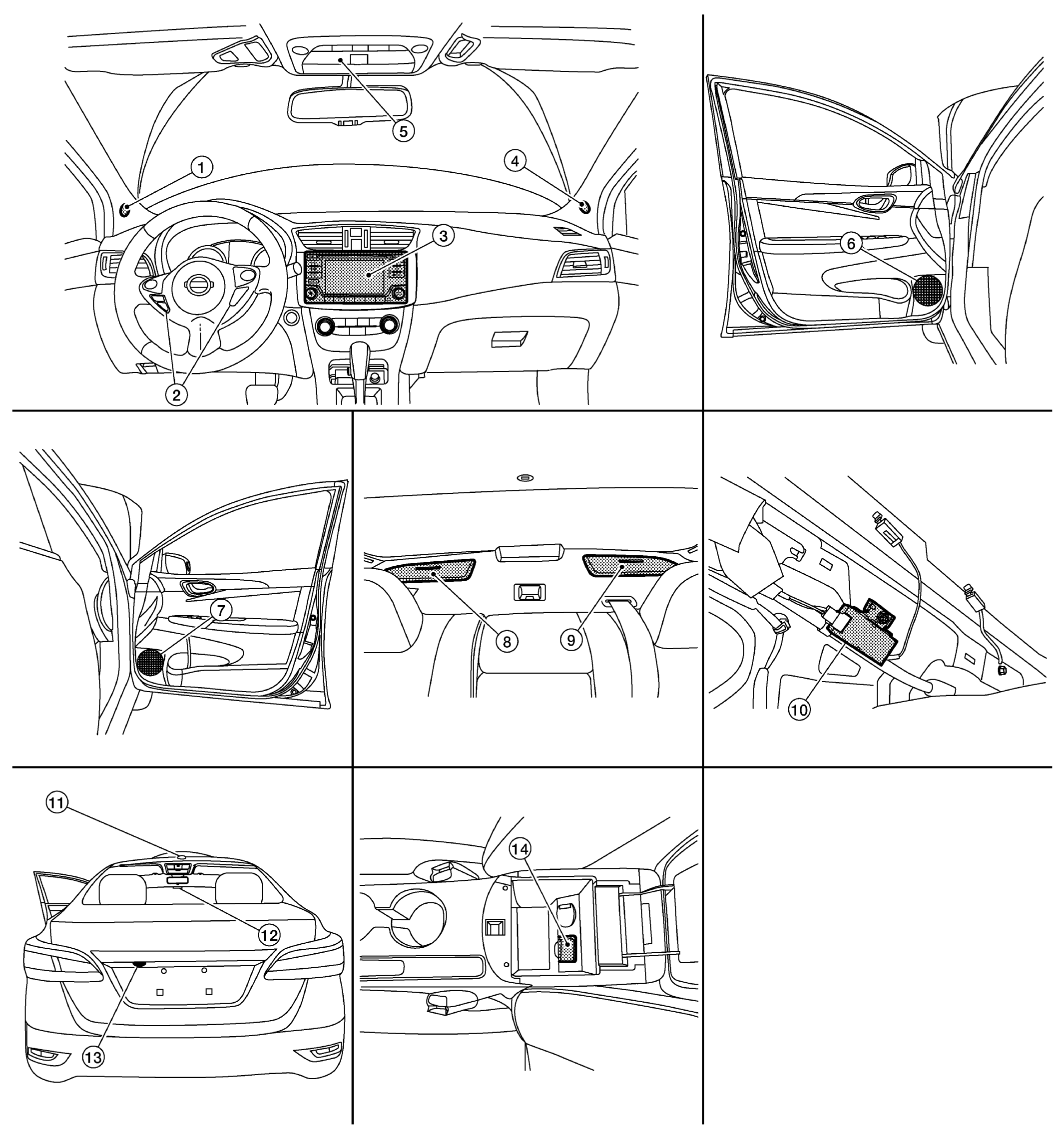

Component Parts Location
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front tweeter LH | 2. | Steering switches | 3. | AV control unit |
| 4. | Front tweeter RH | 5. | Microphone | 6. | Front door speaker LH |
| 7. | Front door speaker RH | 8. | Rear speaker RH | 9. | Rear speaker LH |
| 10. | Antenna amp. | 11. | Satellite antenna | 12. | Window antenna |
| 13. | Rear view camera | 14. | USB interface and AUX jack |
