Fuel Injection Timing - Sequential Direct Injection Gasoline System
WARNING:
This page is about a different variant/trim than selected.

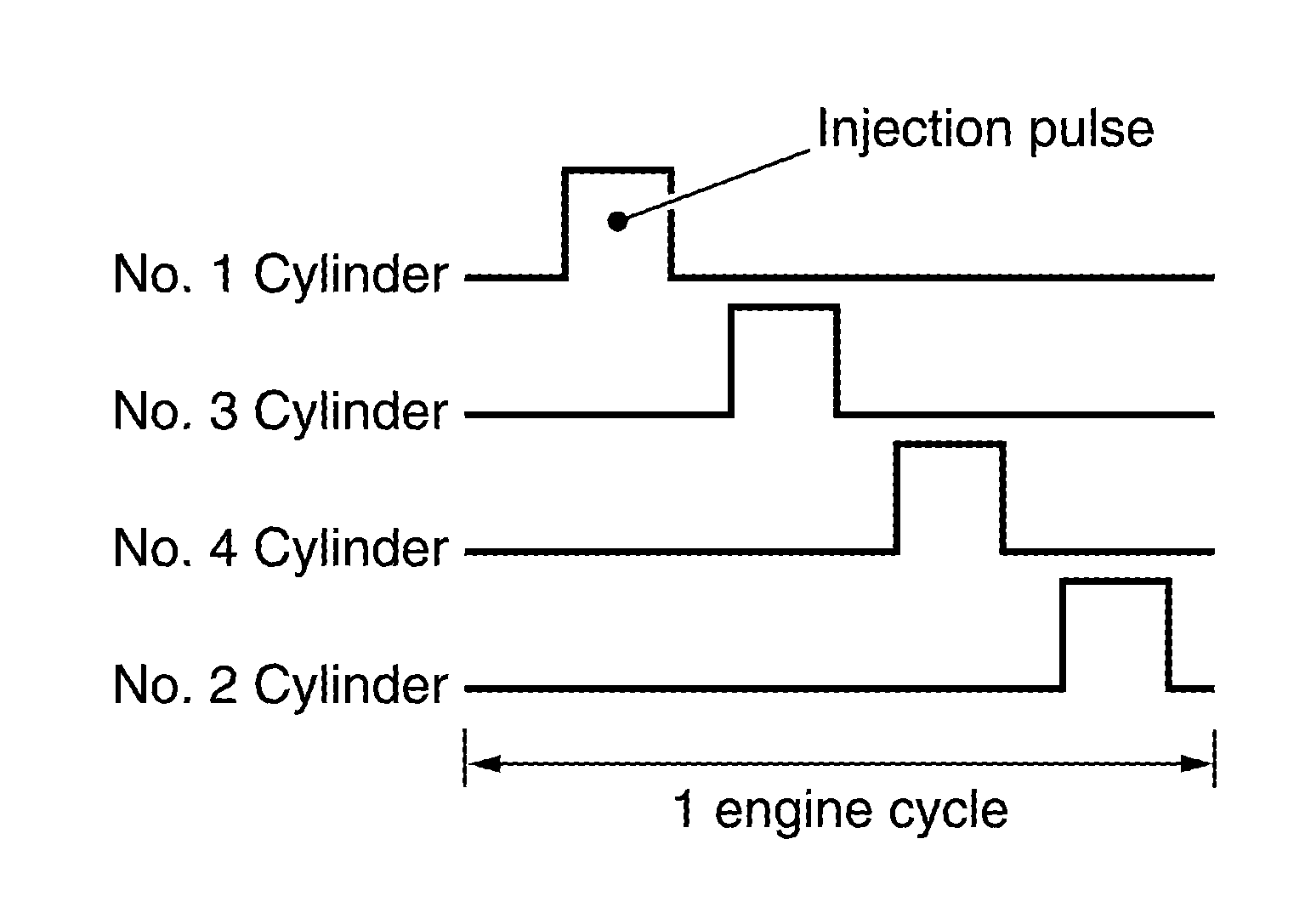

Fuel is injected into each cylinder during each engine cycle according to the ignition order.
Courtesy of NISSAN NORTH AMERICA, INC.
