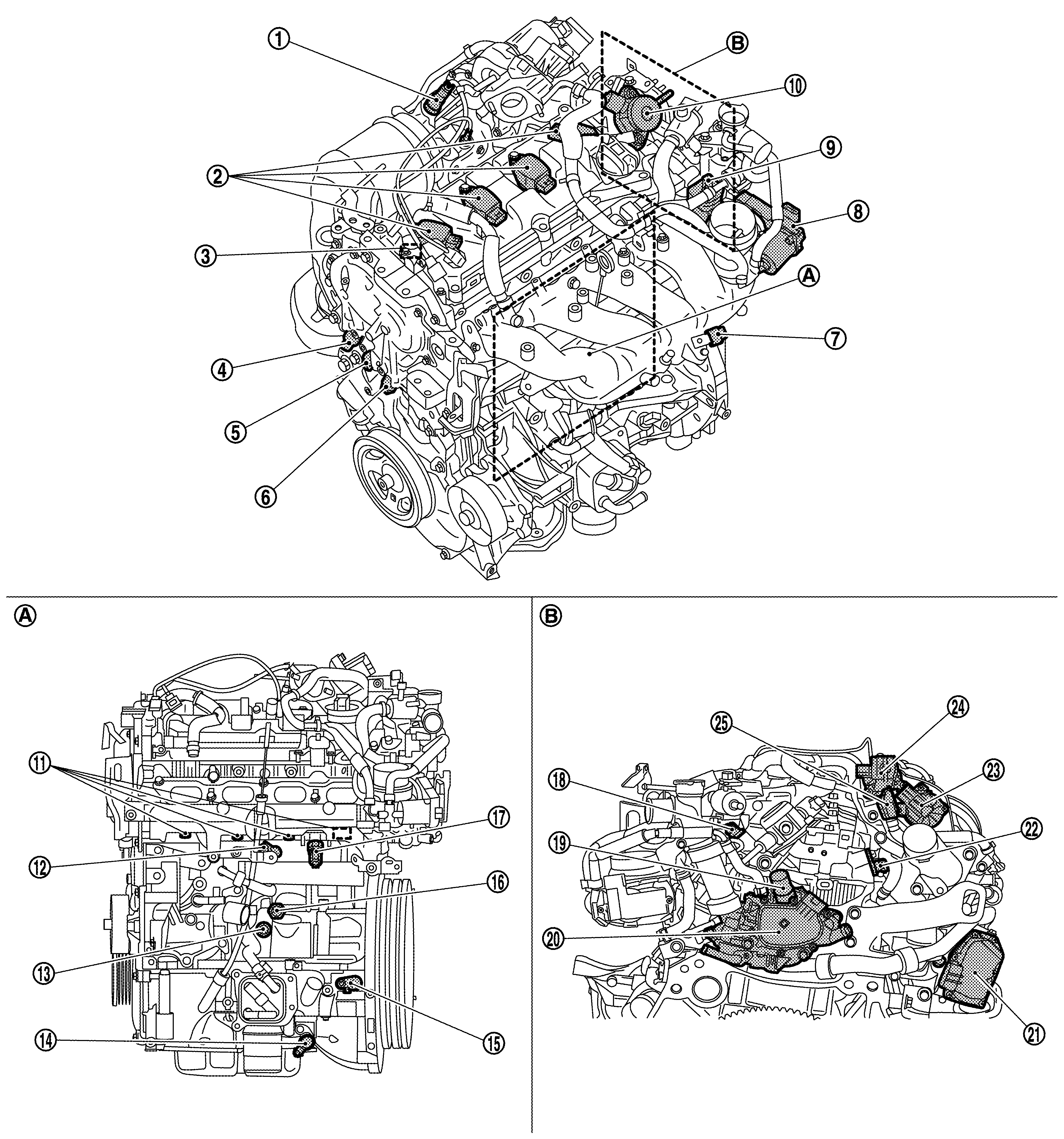

| 1. |
Air fuel ratio (A/F) sensor 1 |
2. |
Ignition coil (with power transistor) |
3. |
PCV valve |
| 4. |
Exhaust valve timing control solenoid valve |
5. |
Intake valve timing intermediate lock control solenoid valve |
6. |
Intake valve timing control solenoid valve |
| 7. |
Manifold absolute pressure sensor |
8. |
Electric throttle control actuator |
9. |
Intake manifold runner control valve |
| 10. |
High pressure fuel pump |
11. |
Fuel injector |
12. |
Knock sensor |
| 13. |
Engine oil temperature sensor |
14. |
Engine oil pressure control solenoid valve |
15. |
Crankshaft position sensor |
| 16. |
Engine oil pressure sensor |
17. |
Fuel rail pressure sensor |
18. |
Camshaft position sensor |
| 19. |
Engine coolant temperature sensor |
20. |
Multi - way control valve |
21. |
EGR volume control valve |
| 22. |
Exhaust valve timing control position sensor |
23. |
Electric wastegate control actuator |
24. |
Turbocharger bypass control valve |
| 25. |
EGR pressure sensor |
|
|
|
|
| A. |
Cylinder block left side |
B. |
Engine rear end |
|
|
