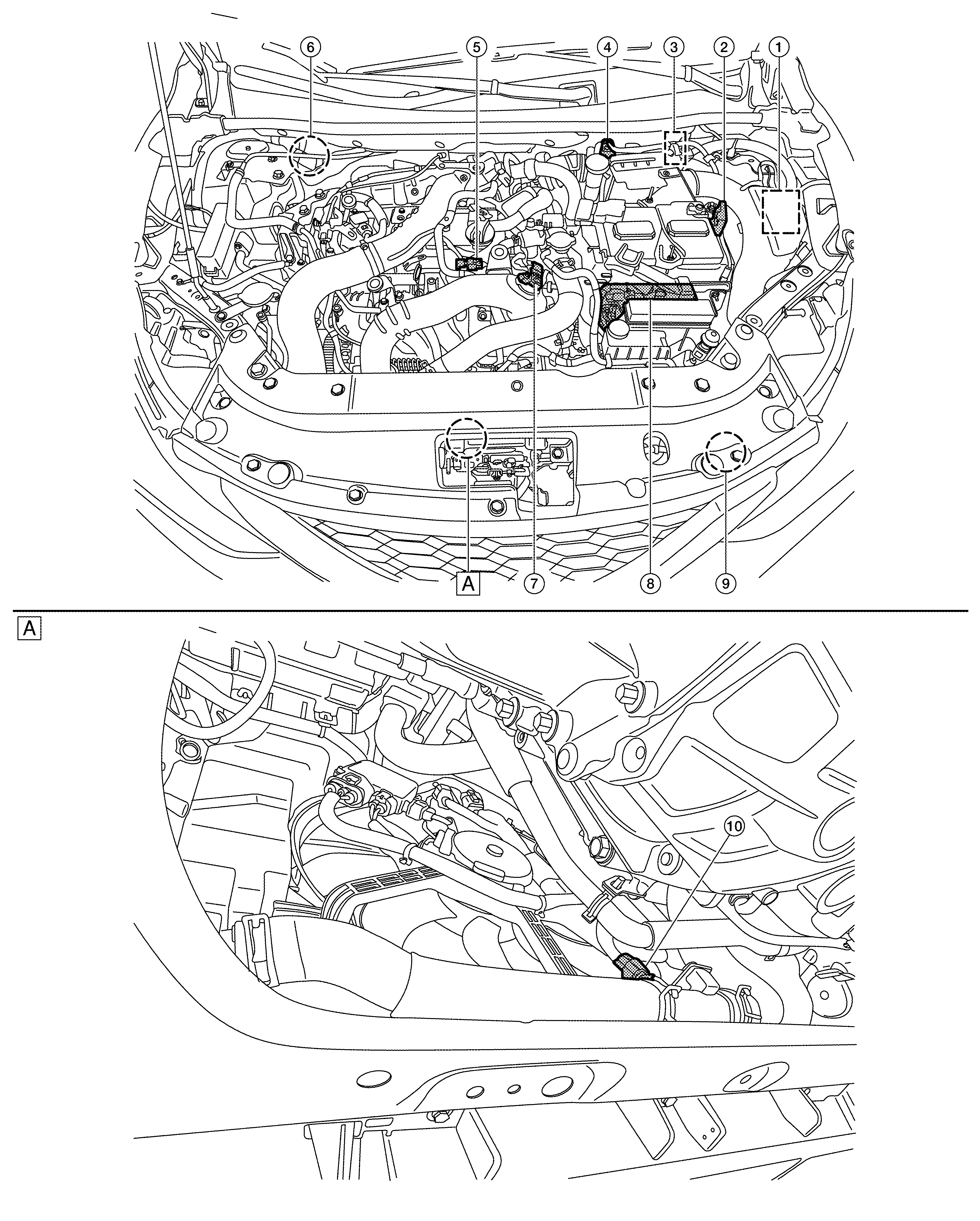

Engine Room Compartment
| 1. | IPDM E/R | 2. | Battery current sensor | 3. | TCM (CVT models) |
| 4. | Mass air flow sensor | 5. | EVAP canister purge volume control solenoid valve | 6. | ABS actuator and electric unit (control unit) |
| 7. | Turbocharger boost sensor | 8. | ECM | 9. | Refrigerant pressure sensor |
| 10. | Engine coolant temperature sensor 2 | ||||
| A. | Lower front side of engine compartment |
