Combination Switch Matrix
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

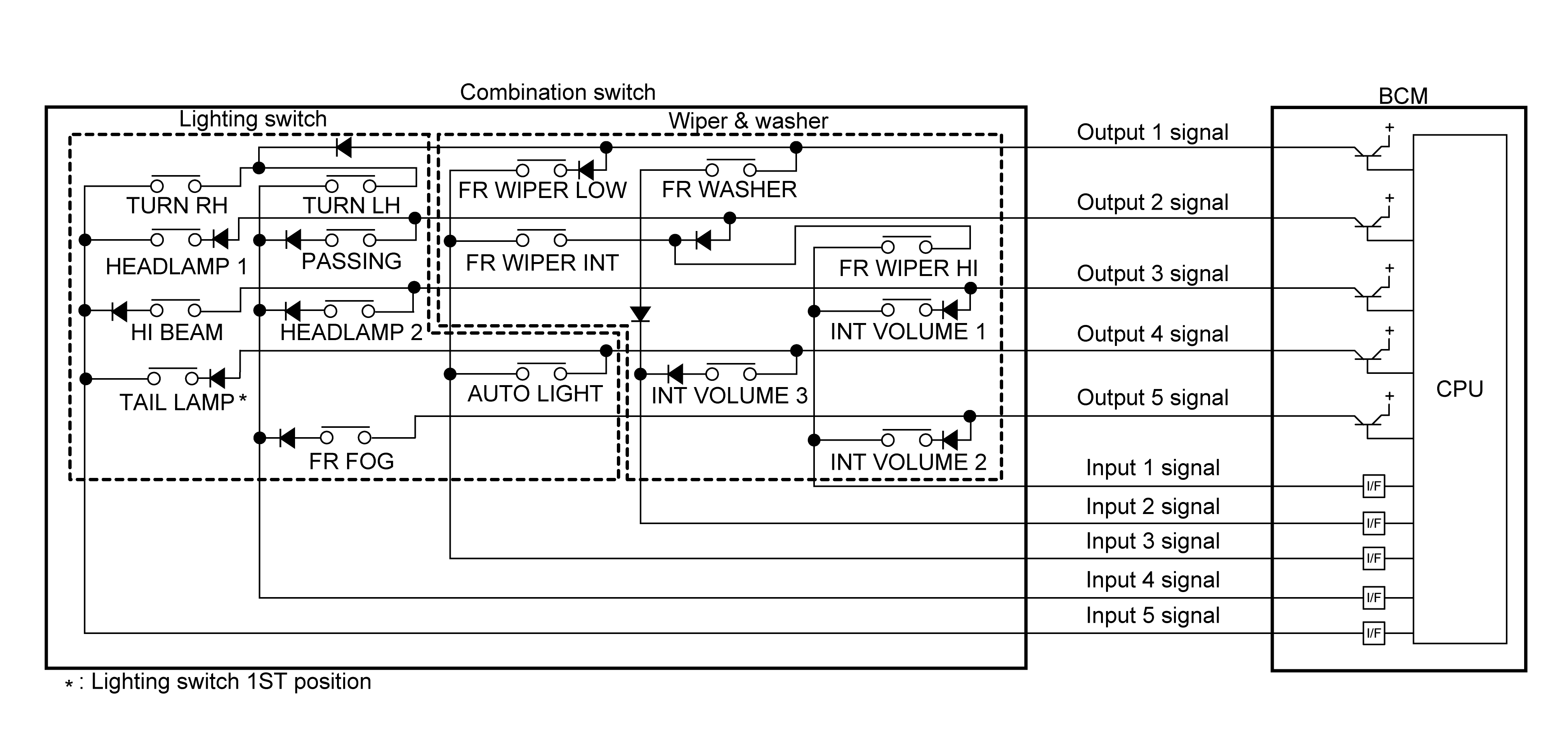

Combination switch circuit
COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST
| System | INPUT 1 | INPUT 2 | INPUT 3 | INPUT 4 | INPUT 5 |
|---|---|---|---|---|---|
| OUTPUT 1 | - | FR WASHER | FR WIPER LOW | TURN LH | TURN RH |
| OUTPUT 2 | FR WIPER HI | - | FR WIPER INT | PASSING | HEADLAMP 1 |
| OUTPUT 3 | INT VOLUME 1 | - | - | HEADLAMP 2 | HI BEAM |
| OUTPUT 4 | - | INT VOLUME 3 | AUTO LIGHT | - | TAIL LAMP |
| OUTPUT 5 | INT VOLUME 2 | - | - | FR FOG | - |
