Turbocharger Boost Sensor
WARNING: This page is about a different variant/trim than selected.

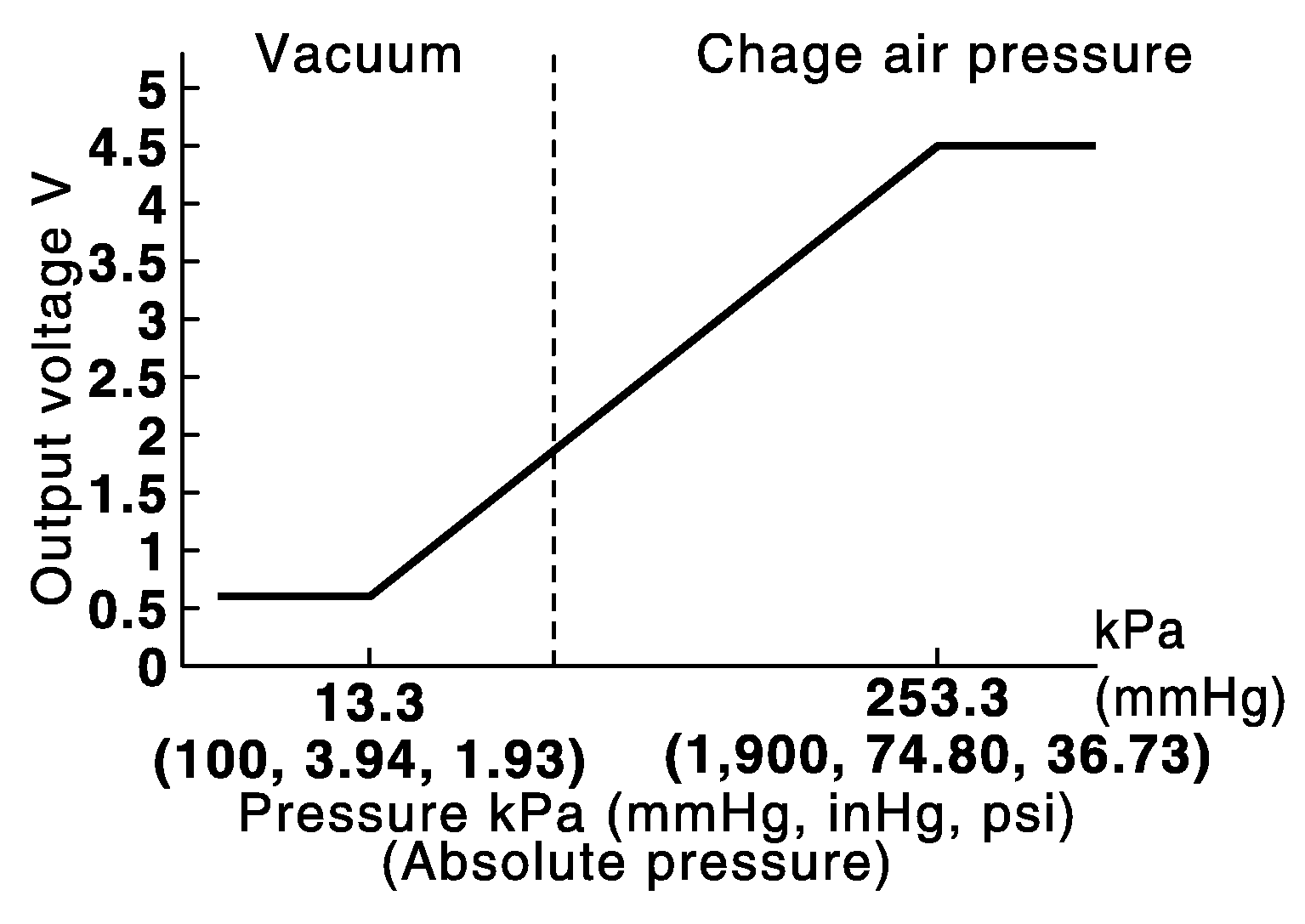

The turbocharger boost sensor detects the pressure of the outlet side of the intercooler. When increasing the pressure, the output voltage of the sensor to the ECM increases.
