Switches And Indicators

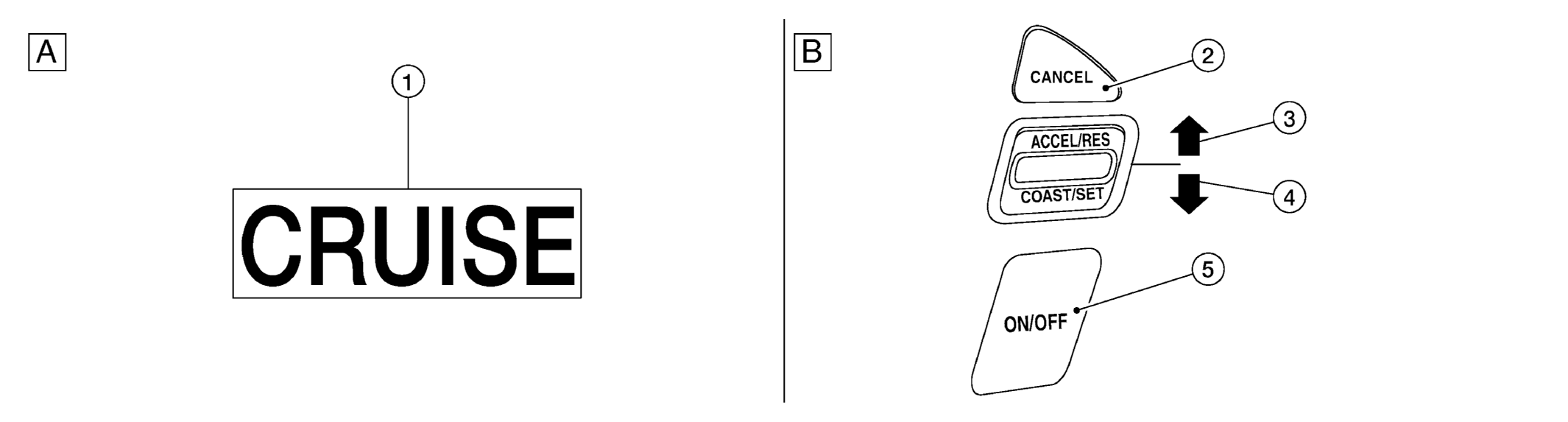

GNSALBIA2898ZZ-898Courtesy of NISSAN NORTH AMERICA, INC.
1. CRUISE indicator lamp 2. CANCEL switch 3. ACCELERATE/RESUME switch
4. COAST/SET switch 5. ASCD MAIN switch
A. On the combination meter B. On the steering wheel
