Steering Gear - Non-XD Models

Unit: mm (in)

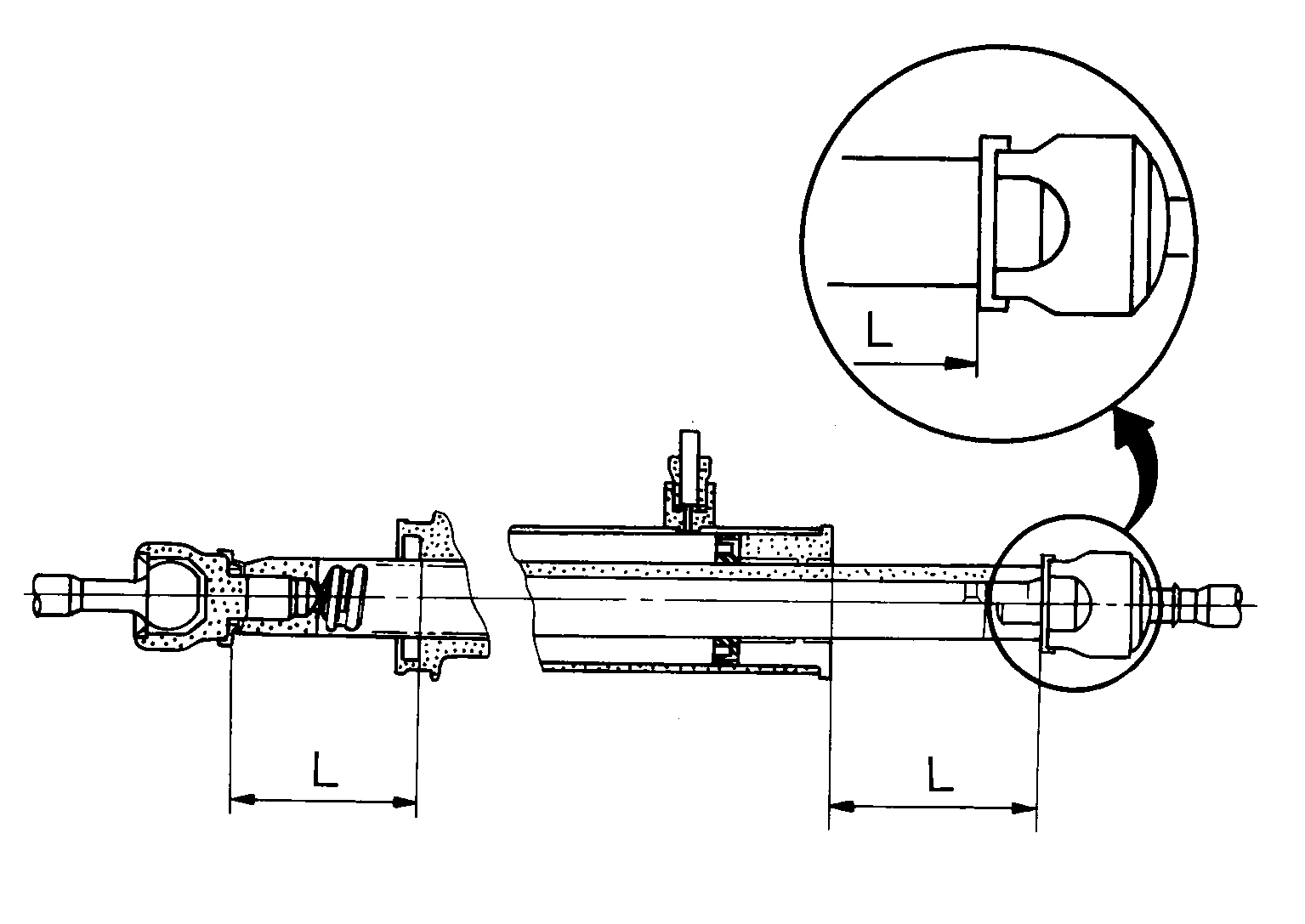

GNSSTC0034D-034Courtesy of NISSAN NORTH AMERICA, INC.


Item Standard
Rack stroke neutral position (L) 85.5 (3.360)
Rack sliding force 191-249 N (19.5-25.4 kg-f, 42.9-56.0 lb-f)
