Exploded View

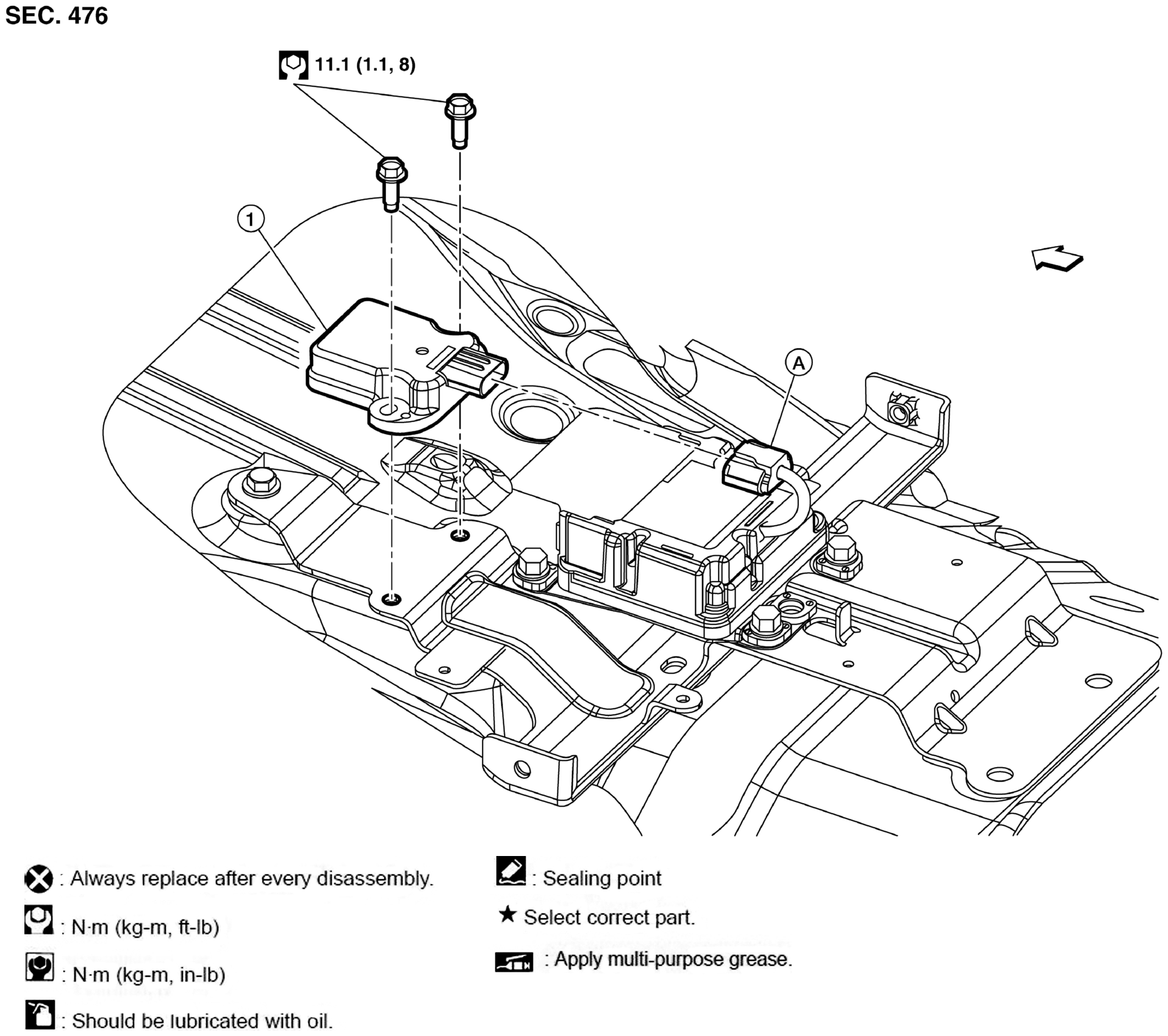

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications
GNSALFIA0648ZZ-648ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Yaw rate/side/decel G sensor A. Harness connector ARROW Front
