Body Compartment

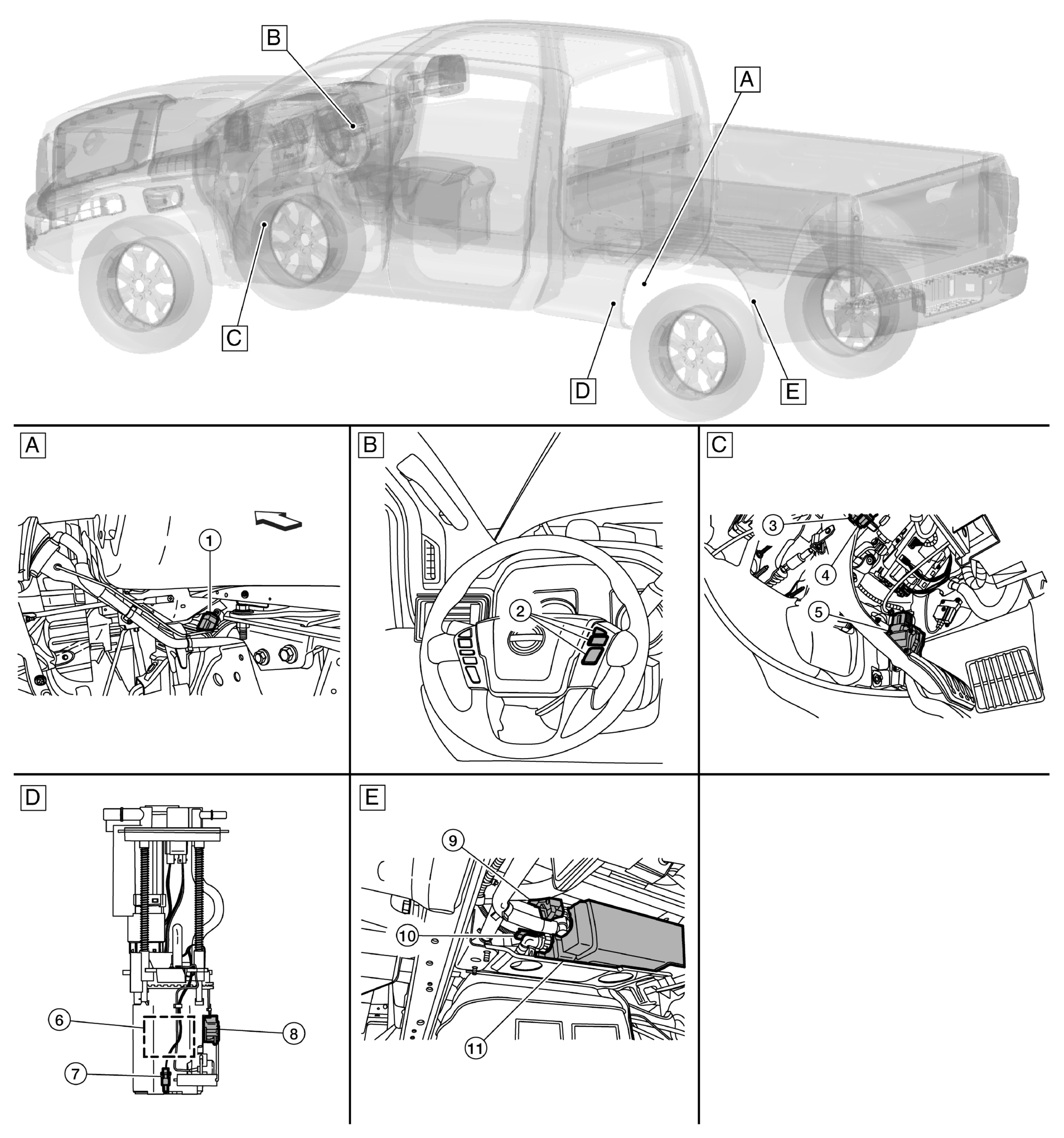

GNSALBIA2951ZZ-951Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Left Rear Wheel Area WZ-B Steering Wheel WZ-C Pedal Periphery
WZ-D Inside Fuel Tank WZ-E Behind Fuel Tank
ARROW : Vehicle Front
No. Component Parts Function
WHITE-1 Fuel Pump Control Module (FPCM) FUEL PUMP CONTROL MODULE
WHITE-2 ASCD Steering Switch ASCD STEERING SWITCH
WHITE-3 Stop Lamp Switch BRAKE PEDAL POSITION SWITCH & STOP LAMP SWITCH
WHITE-4 Brake Pedal Position Switch
WHITE-5 Accelerator Pedal Position Sensor ACCELERATOR PEDAL POSITION SENSOR
WHITE-6 Fuel Pump FUEL PUMP CONTROL MODULE
WHITE-7 Fuel Tank Temperature Sensor
WHITE-8 Fuel Level Sensor Unit
WHITE-9 EVAP Canister Vent Control Valve EVAP CANISTER VENT CONTROL VALVE
WHITE-10 EVAP Control System Pressure Sensor EVAP CONTROL SYSTEM PRESSURE SENSOR
WHITE-11 EVAP Canister EXPLODED VIEW WITH TORQUE SPECIFICATIONS
