Exploded View

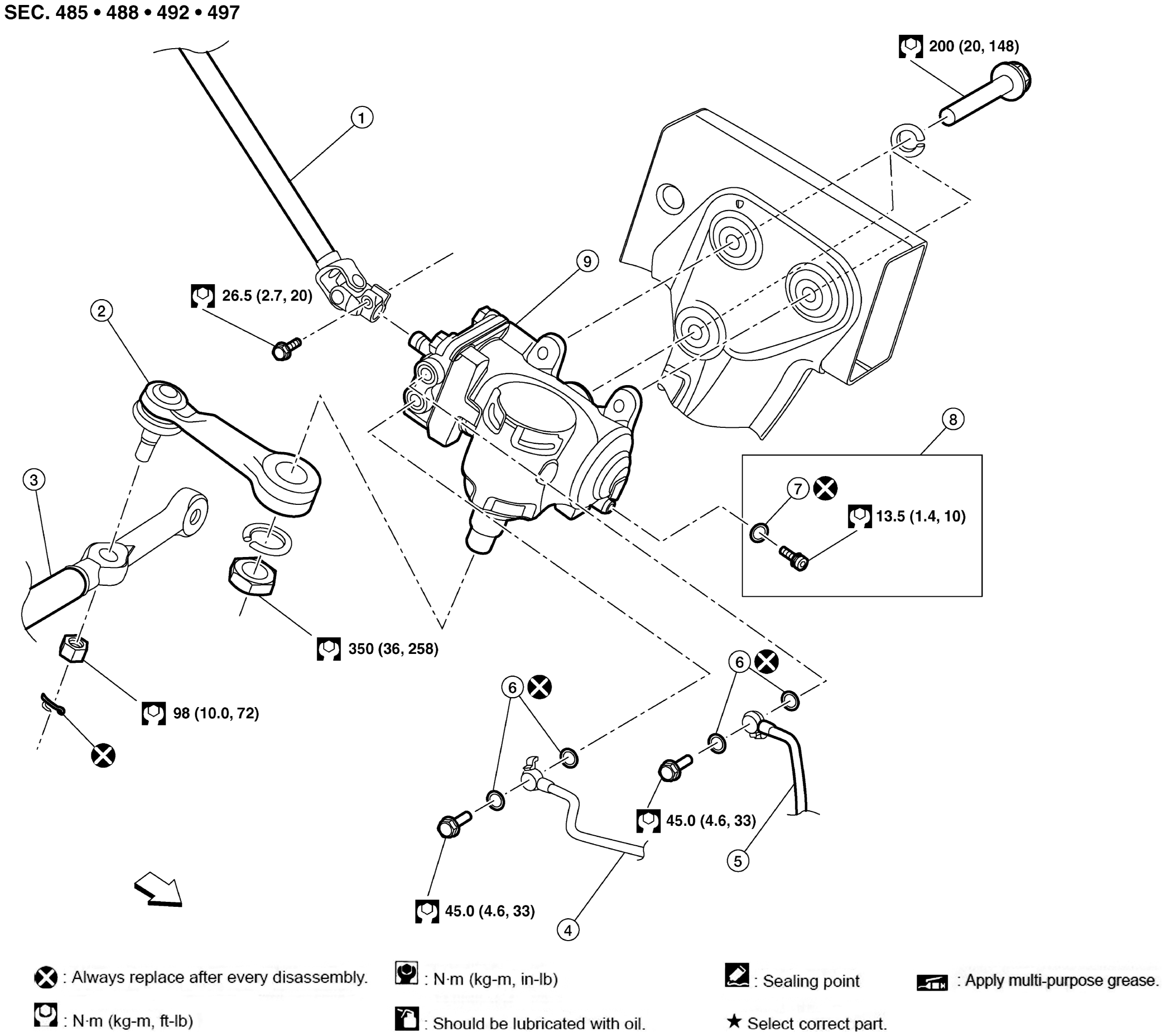

Fig 1: Steering Box With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering lower joint	2.	Pitman arm	3.	Relay rod
4.	Power steering return line	5.	Power steering pressure line	6.	Copper sealing washer
7.	Drain plug o-ring	8.	Drain plug	9.	Steering box
	Front
