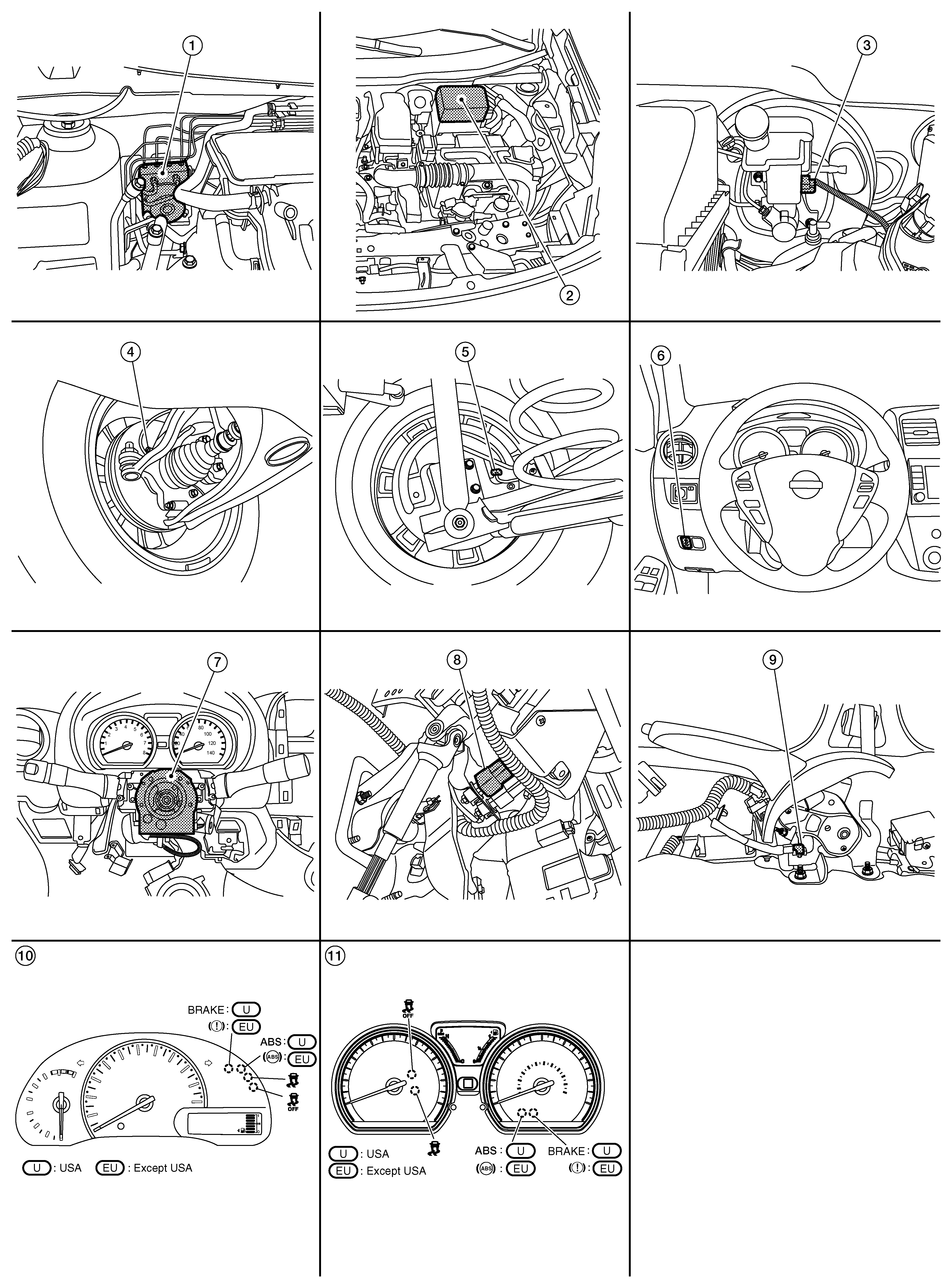

Component Location
| 1 | ABS actuator and electric unit (control unit) | 2 | IPDM E/R | 3 | Brake fluid level switch (view with IPDM E/R removed) |
| 4 | Front wheel sensor | 5 | Rear wheel sensor | 6 | VDC OFF switch |
| 7 | Steering angle sensor (view with steering wheel and spiral cable removed) |
8 | Stop lamp switch | 9 | Parking brake switch (view with console removed) |
| 10 | Combination meter (type A) | 11 | Combination meter (type B) |
