Component Location

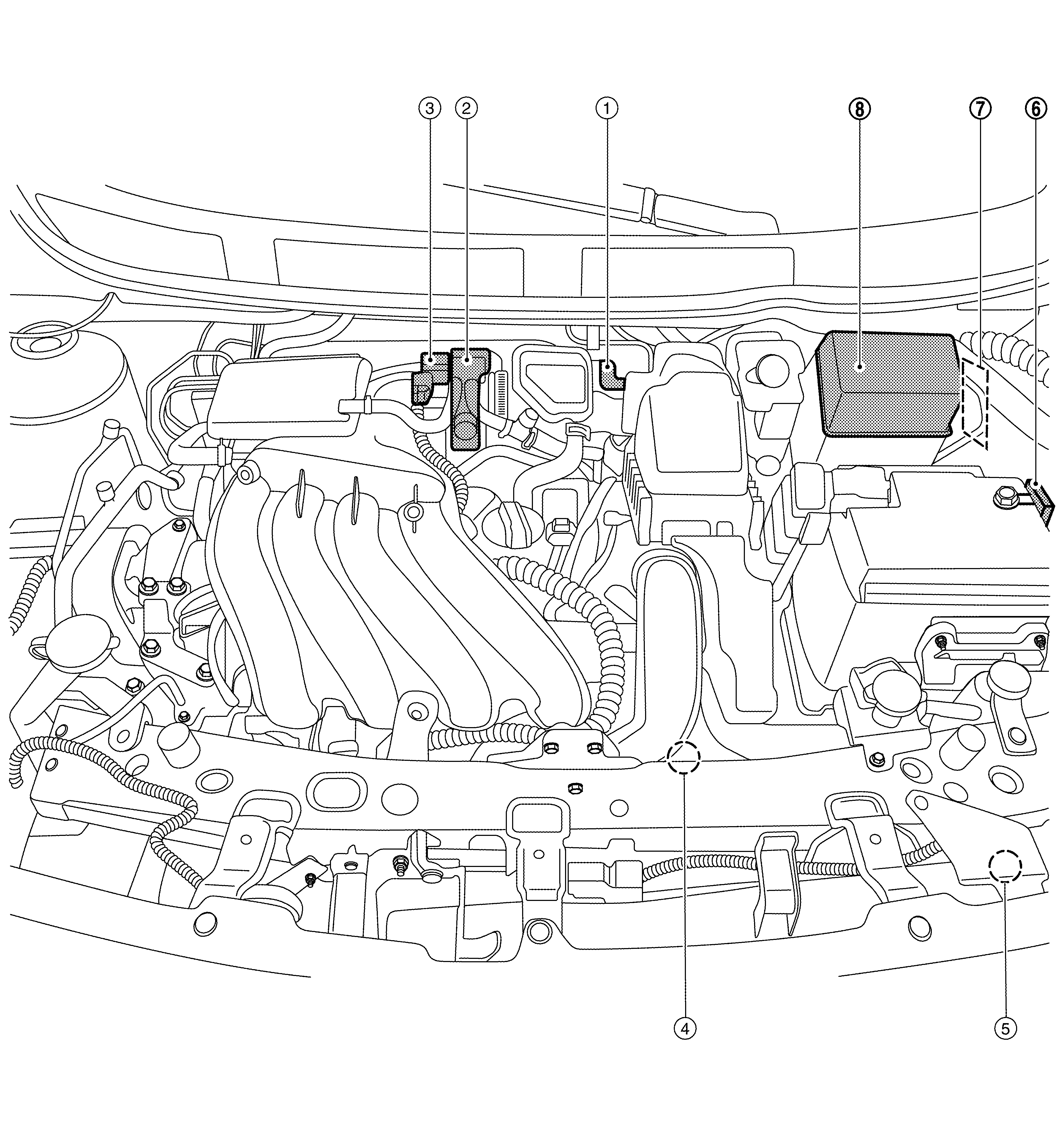

| 1. | Mass air flow sensor (with intake air temperature sensor) |
2. | Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
3. | EVAP canister purge volume control solenoid valve |
| 4. | Cooling fan motor | 5. | Refrigerant pressure sensor Refer to COMPONENT LOCATION . |
6. | Battery current sensor (with built in battery temperature sensor* 1 )* 2 |
| 7. | ECM | 8. | IPDM E/R Refer to COMPONENT LOCATION . |
||
| * 1 | : Not used | ||||
| * 2 | : CVT models |
| 1. | Ignition coil No. 4 (with power transistor) |
2. | Ignition coil No. 3 (with power transistor) |
3. | Ignition coil No. 2 (with power transistor) |
| 4. | Ignition coil No. 1 (with power transistor) |
5. | PCV valve | 6. | Intake valve timing control solenoid valve |
| 7. | Engine oil pressure sensor | 8. | Engine oil temperature sensor | 9. | Knock sensor |
| 10. | Engine coolant temperature sensor | 11. | Intake camshaft position sensor | 12. | Exhaust camshaft position sensor |
| 13. | Exhaust valve timing control solenoid valve | 14. | Fuel injector No. 1 (Front) | 15. | Fuel injector No. 1 (Rear) |
| 16. | Fuel injector No. 2 (Front) | 17. | Fuel injector No. 2 (Rear) | 18. | Fuel injector No. 3 (Front) |
| 19. | Fuel injector No. 3 (Rear) | 20. | Fuel injector No. 4 (Front) | 21. | Fuel injector No. 4 (Rear) |
| 22. | Crankshaft position sensor | ||||
| A. | Engine front right side | B. | Left view of the engine | C. | Engine rear right side |
| 1. | A/F sensor 1 | 2. | Heated oxygen sensor 2 |

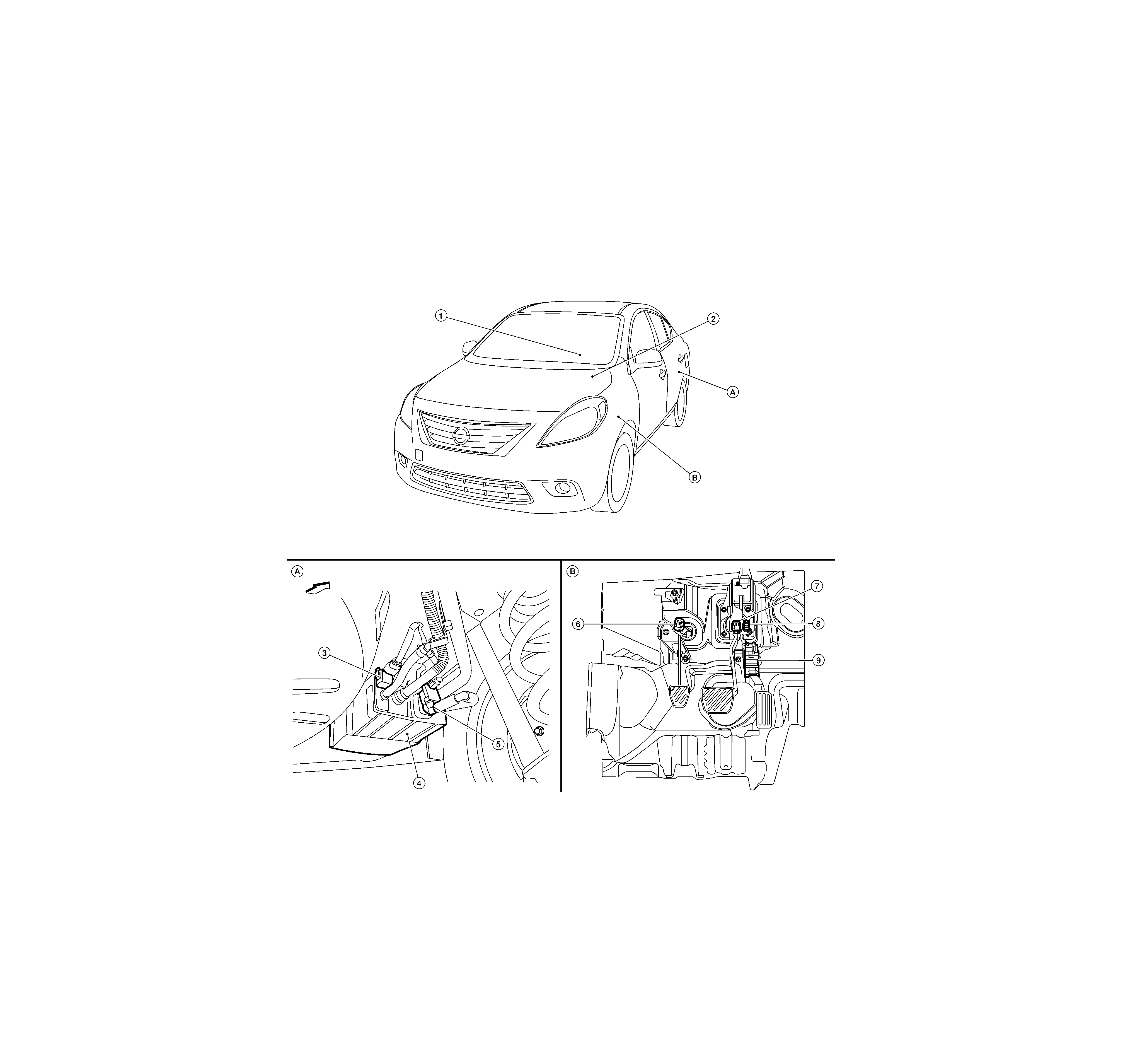

| 1. | ASCD steering switch | 2. | Fuel pump (with fuel level sensor unit and fuel pressure regulator) Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS . |
3. | EVAP control system pressure sensor |
| 4. | EVAP canister | 5. | EVAP canister vent control valve | 6. | Not applicable |
| 7. | Stop lamp switch | 8. | Brake pedal position switch | 9. | Accelerator pedal position sensor |
| A. | Spare tire housing left side | B. | Periphery of pedals | ||
| : Vehicle front |
