Component Parts Location

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

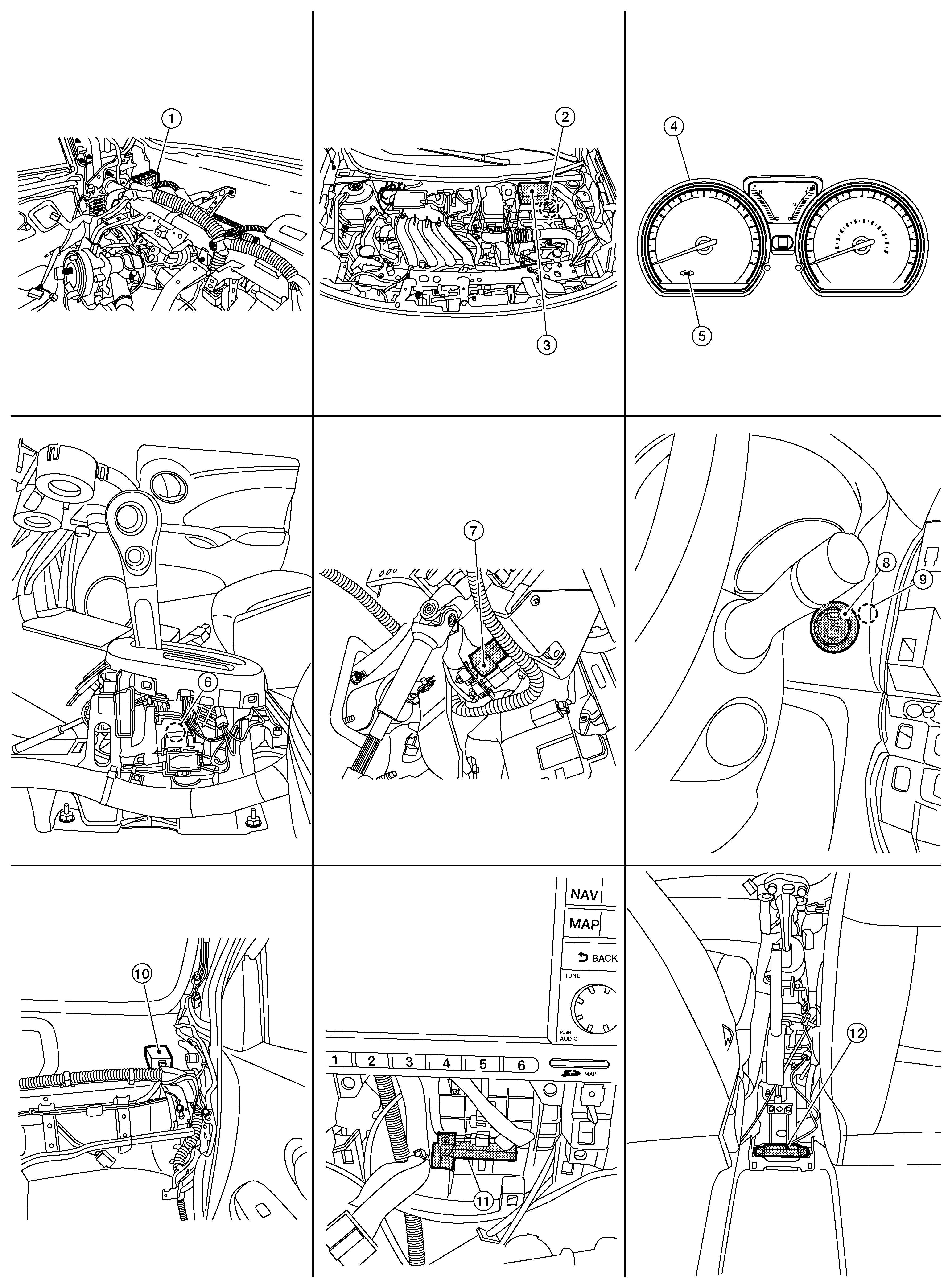

Fig 1: Security Control System (With Intelligent Key) Components Location (1 Of 2)
GNSALKIA3609ZZ-609Courtesy of NISSAN NORTH AMERICA, INC.

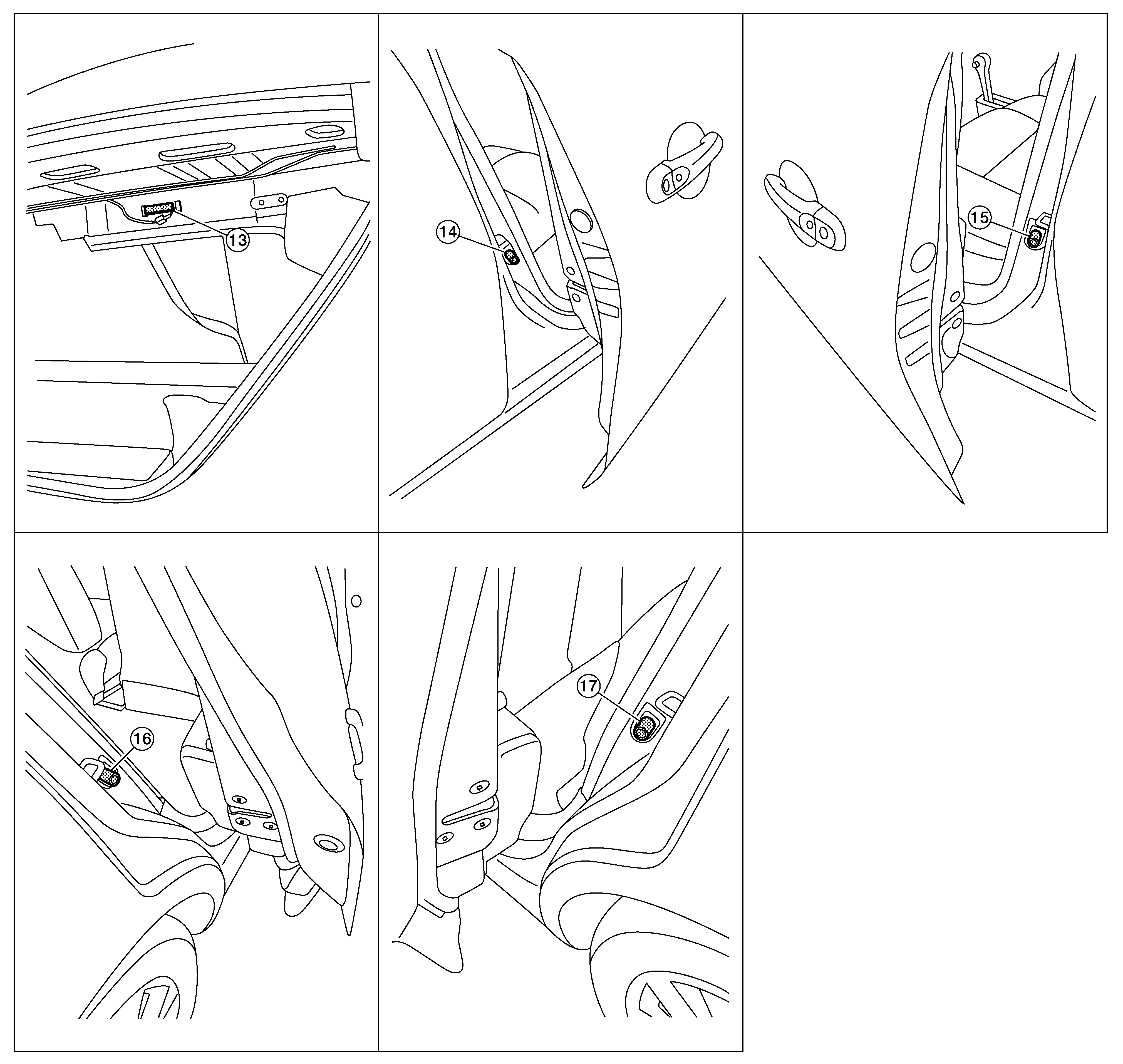

Fig 2: Security Control System (With Intelligent Key) Components Location (2 Of 2)
GNSAWKIA2489ZZ-489Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with instrument panel removed) 2. ECM 3. IPDM E/R
4. Combination meter 5. Security indicator lamp 6. CVT shift selector (park position switch) (view with center console removed)
7. Stop lamp switch 8. Push-button ignition switch 9 NATS antenna amp.
10. Remote keyless entry receiver (view with instrument panel removed) 11. Inside key antenna (instrument center) 12. Inside key antenna (console) (view with center console removed)
13. Inside key antenna (trunk room) 14. Front door switch RH 15. Front door switch LH
16. Rear door switch RH 17. Rear door switch LH
