Descriptions For Clips

Replace any clips which are damaged during removal or installation.

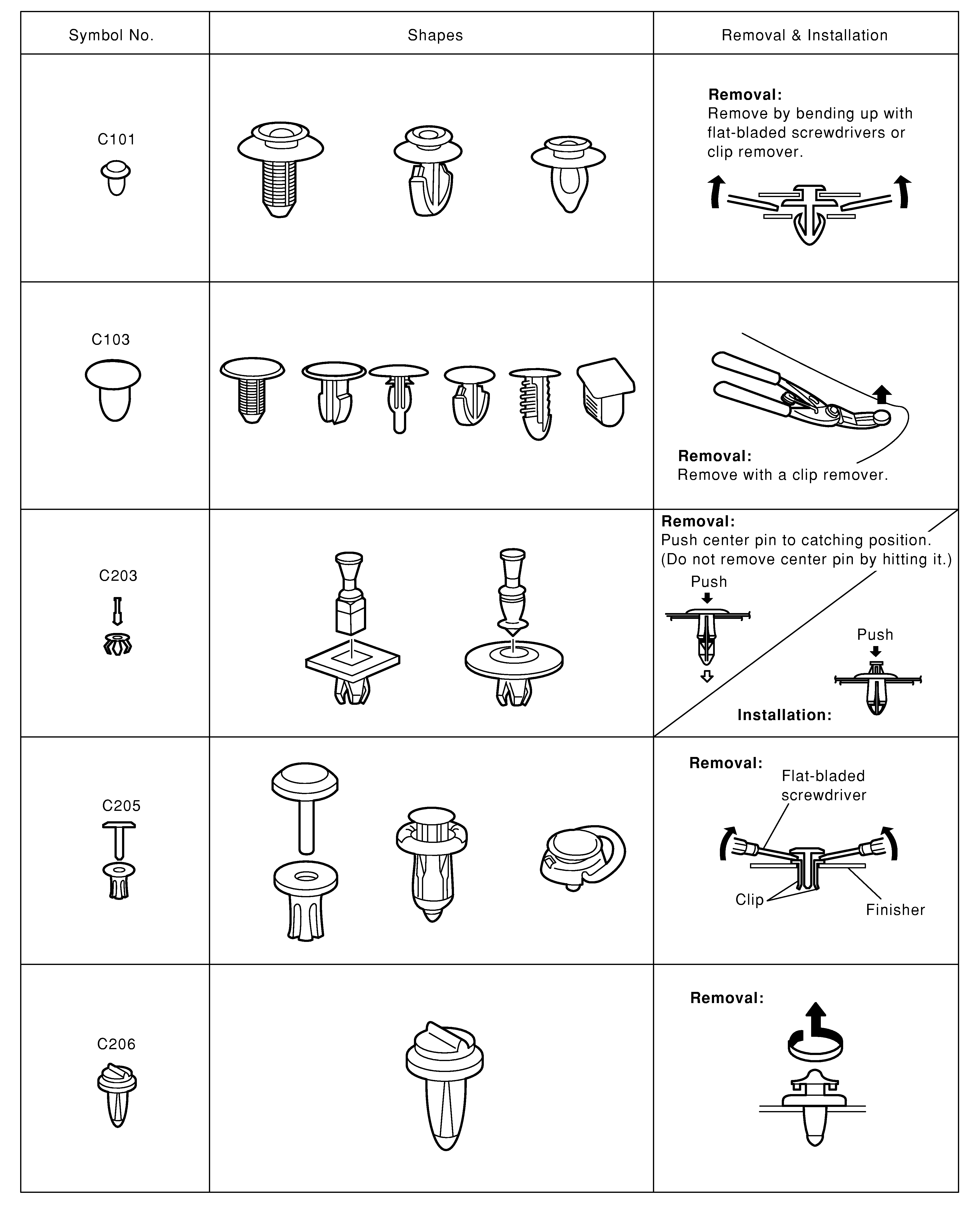

G04077514Courtesy of NISSAN NORTH AMERICA, INC.

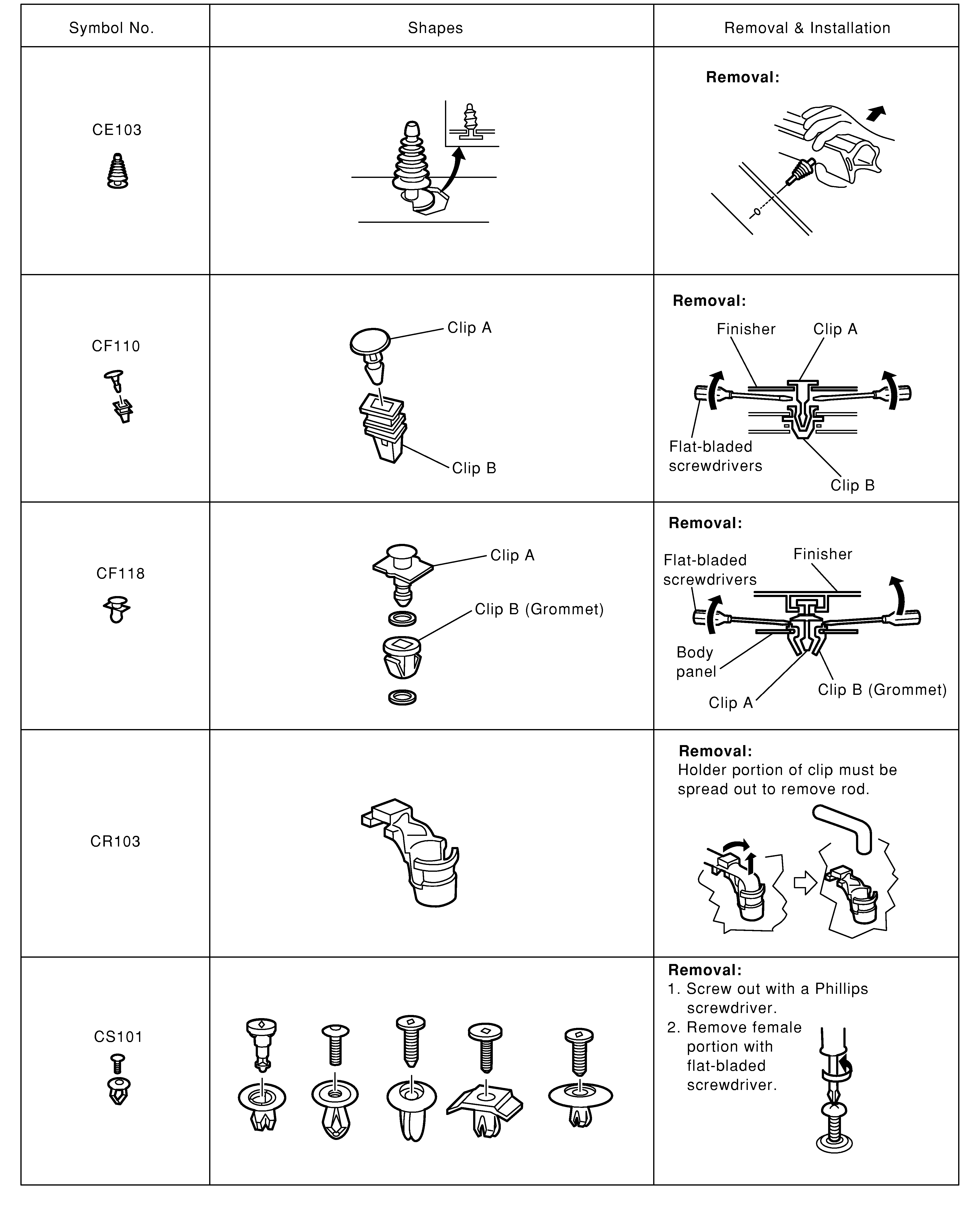

G04077515Courtesy of NISSAN NORTH AMERICA, INC.

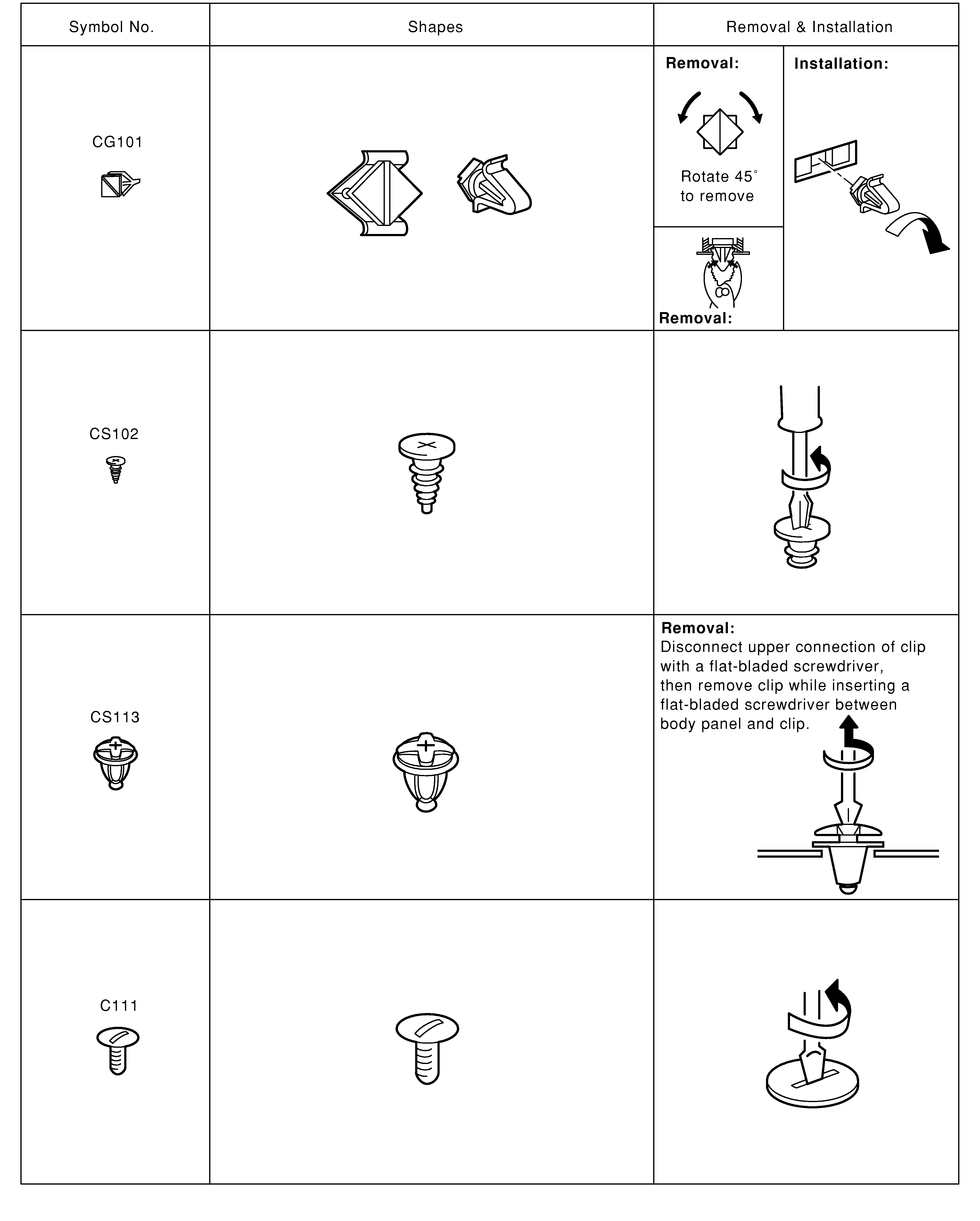

G04077516Courtesy of NISSAN NORTH AMERICA, INC.

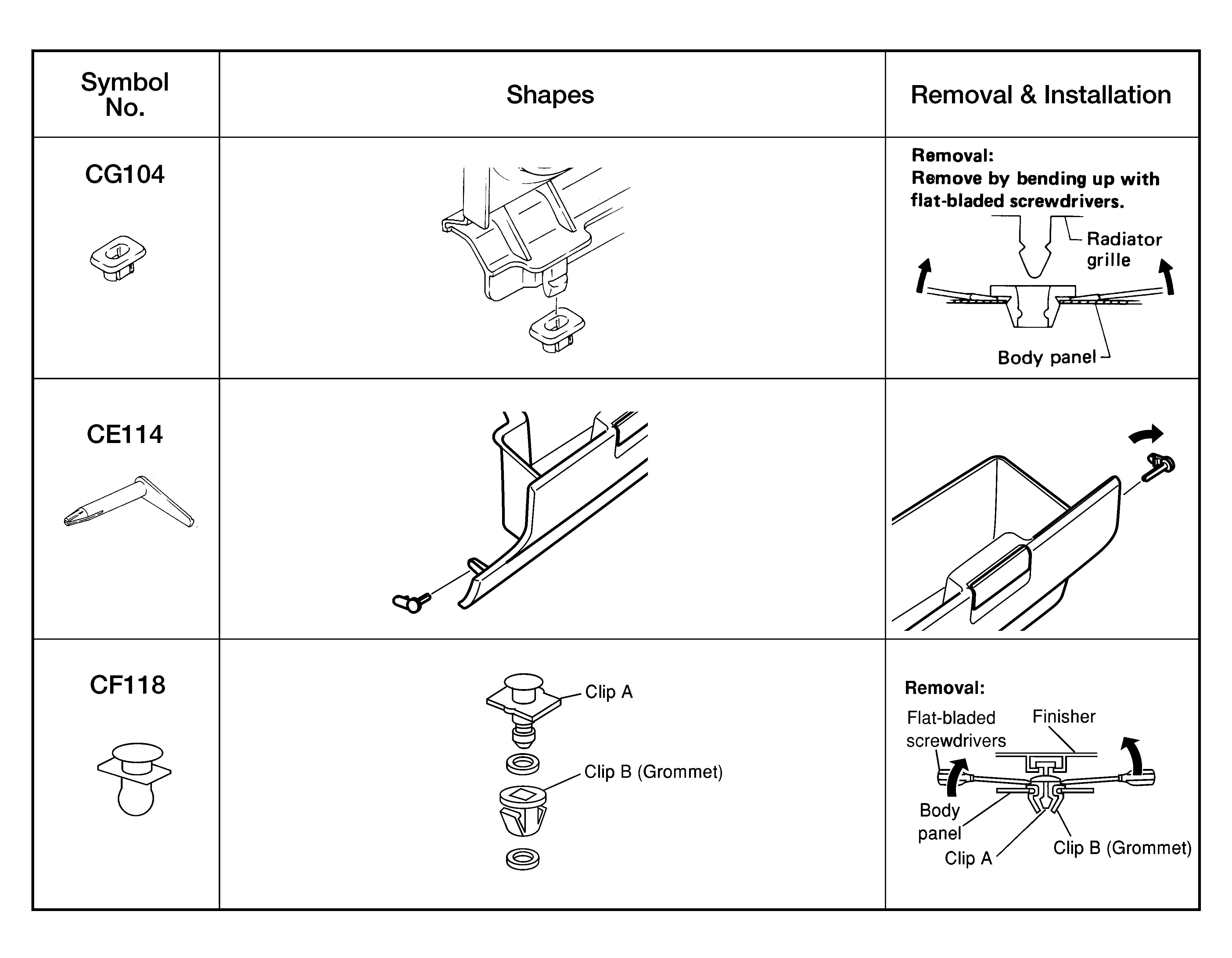

G06986957Courtesy of NISSAN NORTH AMERICA, INC.
