Removal (CANADA Only)

  1. Remove the instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect the harness connector from the immobilizer control unit.

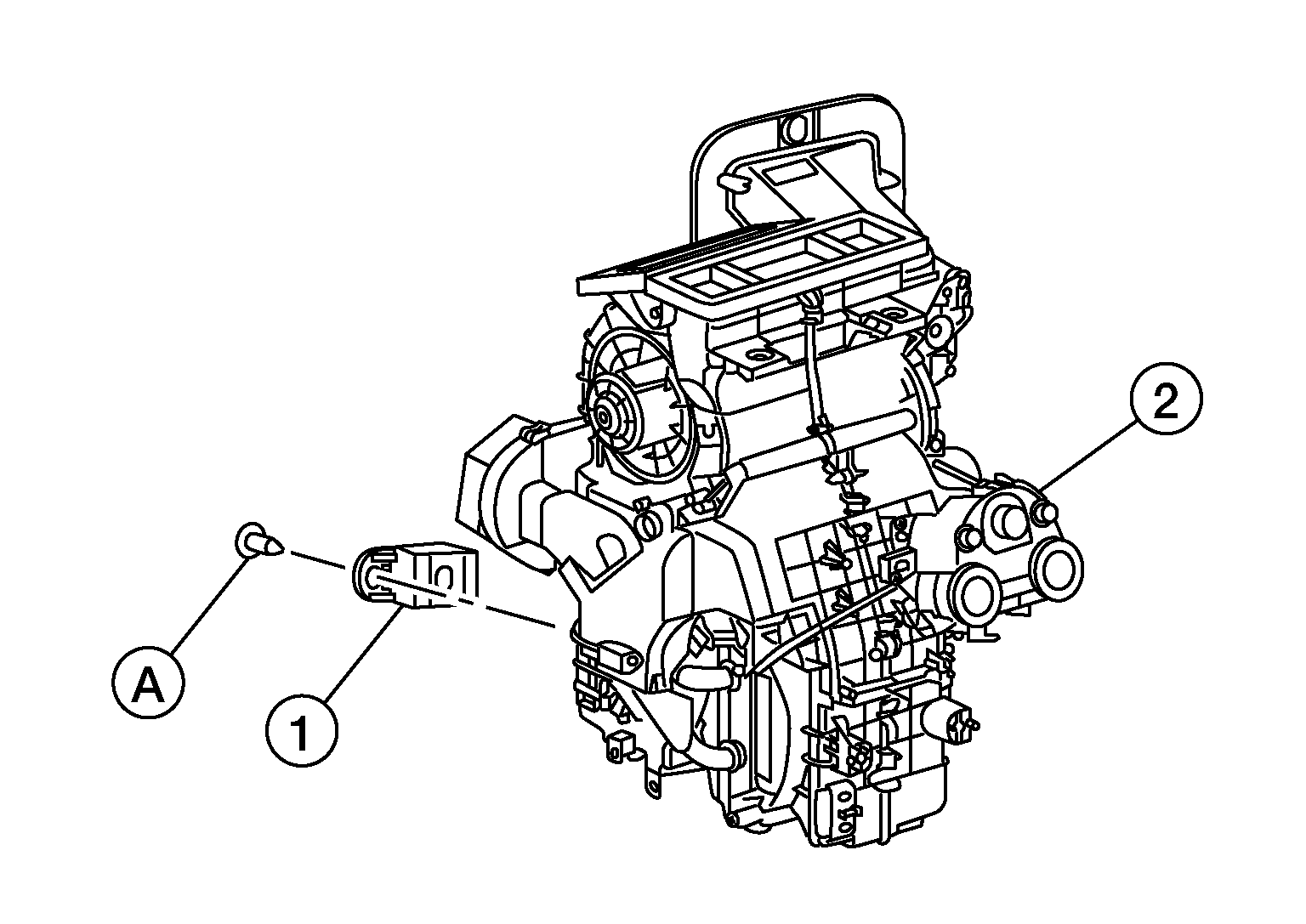

    GNSALKIA4658ZZ-658Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the immobilizer control unit screw (A) and remove the immobilizer control unit (1) from behind the heating and cooling unit assembly (2).
