Exploded View With Torque Specifications

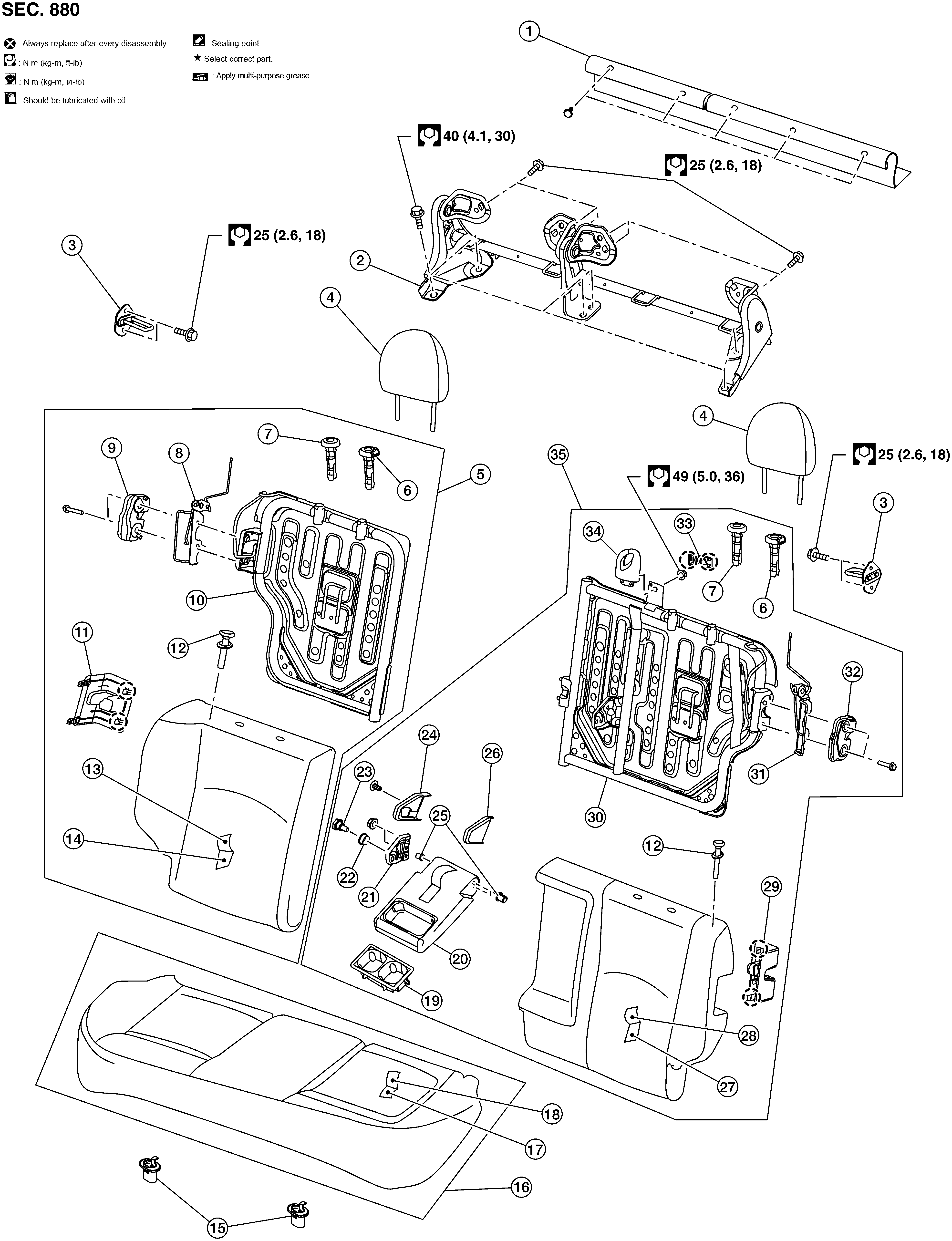

REAR SEAT WITH ARMREST
| 1. | Seatback hinge trim | 2. | Seatback hinge | 3. | Seatback striker |
| 4. | Headrest | 5. | Seatback (RH) | 6. | Headrest holder (locked) |
| 7. | Headrest holder (free) | 8. | Seatback latch bracket (RH) | 9. | Seatback latch (RH) |
| 10. | Seatback frame (RH) | 11. | Seatback latch finisher (RH) | 12. | Seatback latch release knob |
| 13. | Seatback trim (RH) | 14. | Seatback pad (RH) | 15. | Seat cushion hook |
| 16. | Seat cushion | 17. | Seat cushion pad | 18. | Seat cushion trim |
| 19. | Cup holder | 20. | Armrest | 21. | Armrest hinge bracket |
| 22. | Armrest pivot bolt bushing | 23. | Armrest pivot bolt | 24. | Armrest hinge bracket finisher (RH) |
| 25. | Bushing | 26. | Armrest hinge bracket finisher (LH) | 27. | Seatback pad (LH) |
| 28. | Seatback trim (LH) | 29. | Seatback latch finisher (LH) | 30. | Seatback frame (LH) |
| 31. | Seatback latch bracket (LH) | 32. | Seatback latch (LH) | 33. | Seatbelt guide finisher |
| 34. | Seat belt guide | 35. | Seatback (LH) | Pawl |

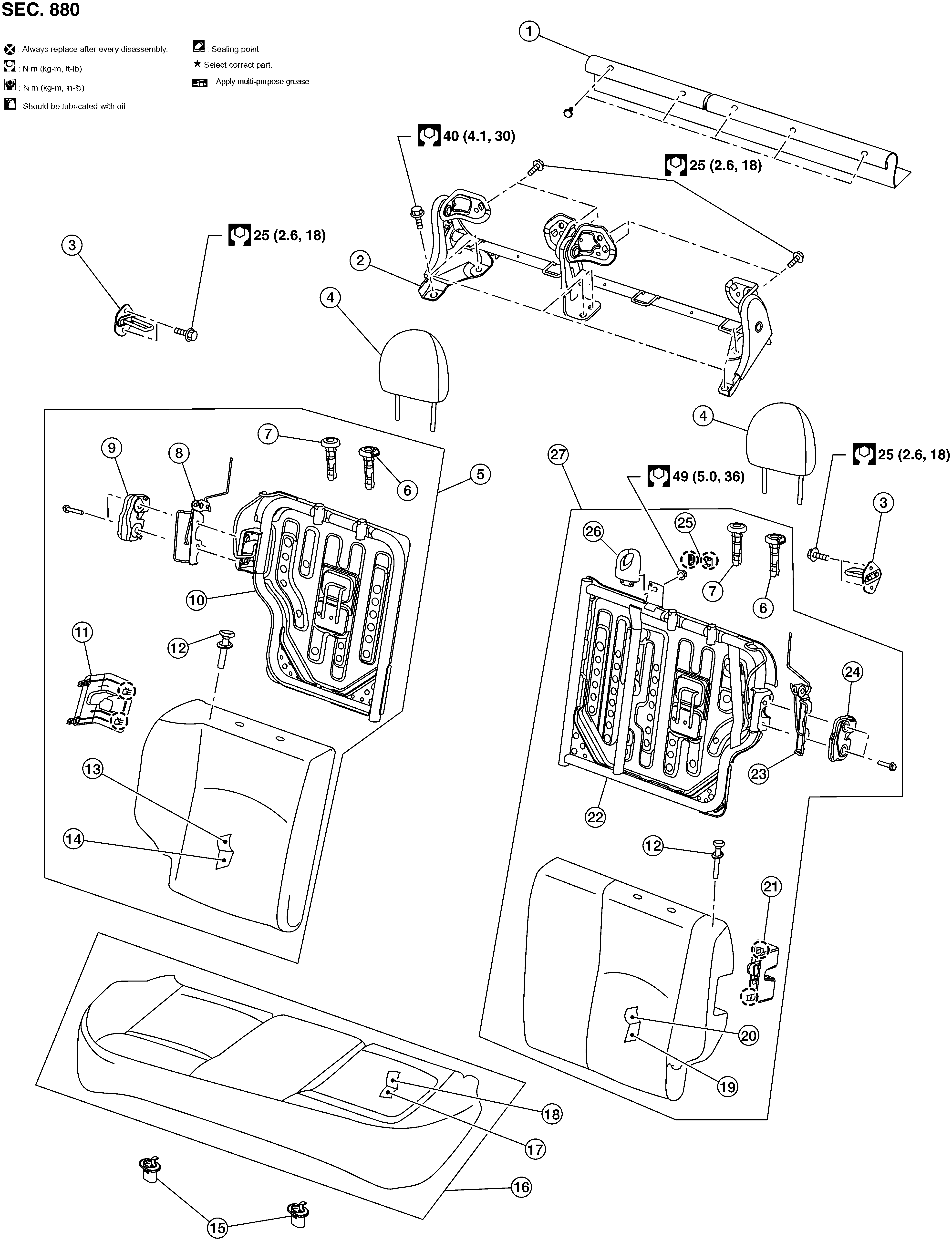

REAR SEAT WITHOUT ARMREST
| 1. | Seatback hinge trim | 2. | Seatback hinge | 3. | Seatback striker |
| 4. | Headrest | 5. | Seatback (RH) | 6. | Headrest holder (locked) |
| 7. | Headrest holder (free) | 8. | Seatback latch bracket (RH) | 9. | Seatback latch (RH) |
| 10. | Seatback frame (RH) | 11. | Seatback latch finisher (RH) | 12. | Seatback latch release knob |
| 13. | Seatback trim (RH) | 14. | Seatback pad (RH) | 15. | Seat cushion hook |
| 16. | Seat cushion | 17. | Seat cushion pad | 18. | Seat cushion trim |
| 19. | Seatback pad (LH) | 20. | Seatback trim (LH) | 21. | Seatback latch finisher (LH) |
| 22. | Seatback frame (LH) | 23. | Seatback latch bracket (LH) | 24. | Seatback latch (LH) |
| 25. | Seatbelt guide finisher | 26. | Seat belt guide | 27. | Seatback (LH) |
| Pawl |
