Component Location

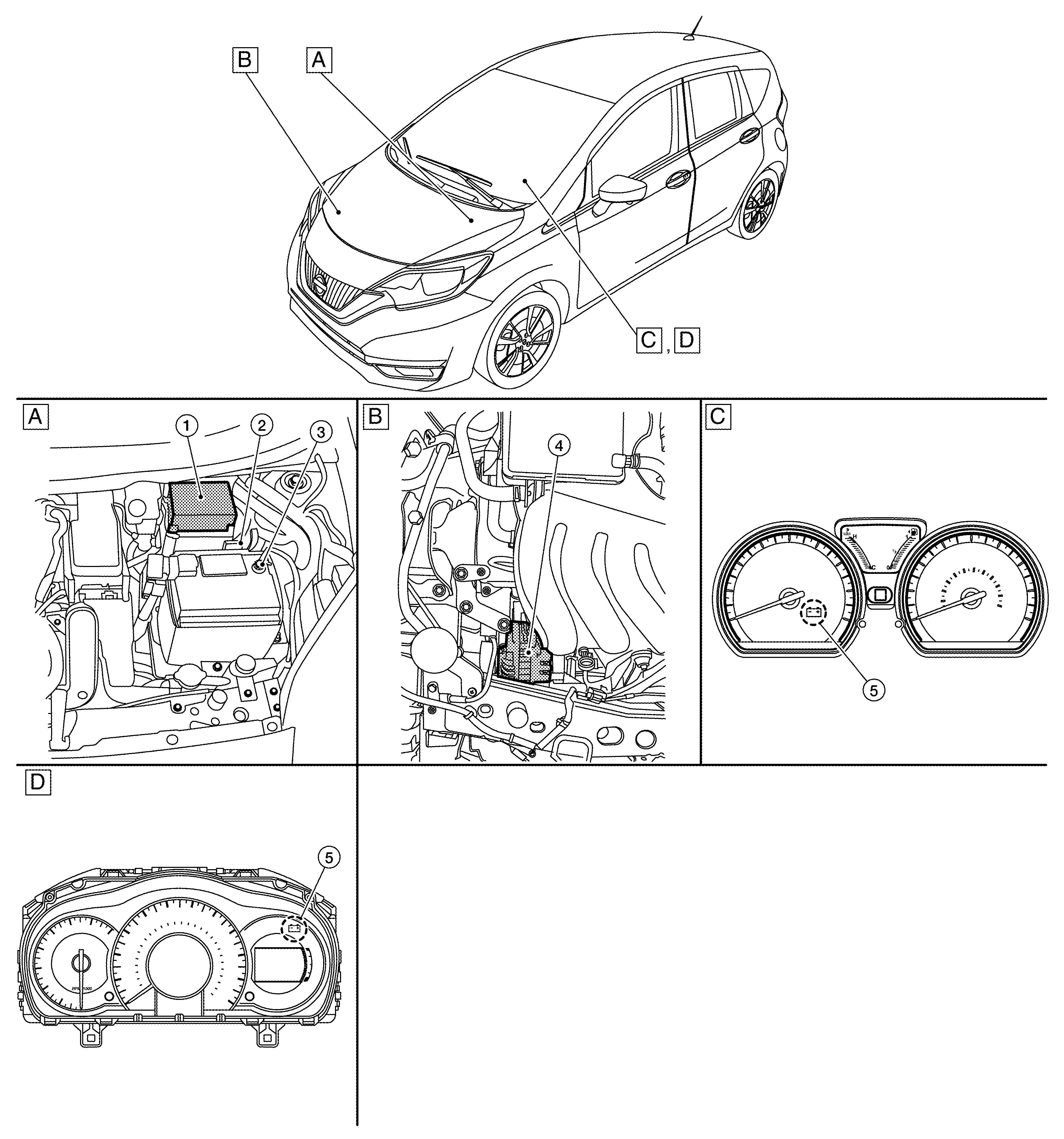

GNSALMIA0993ZZ-993Courtesy of NISSAN NORTH AMERICA, INC.
A. Engine room LH (view with air duct inlet removed) B. Engine room RH C. Combination meter (type A)
D. Combination meter (type B)
