DIODE Connector End View (M2)

Connector Color: BLACK

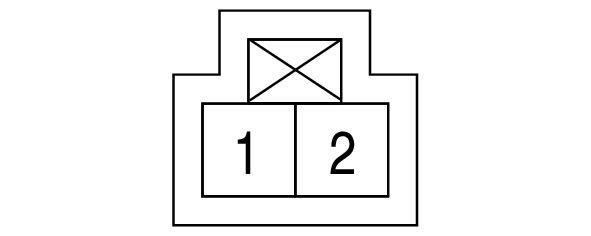

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

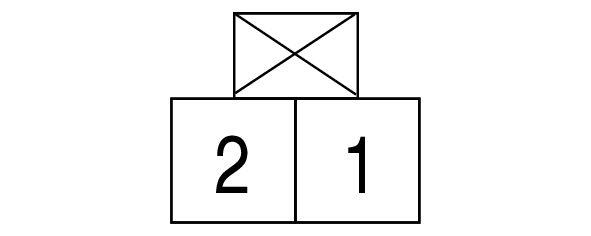

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	ILLUMI CONT OUT
2	B	HIGH SIDE ENGINE START SW ILLUMINATION LED

Circuit Diagram

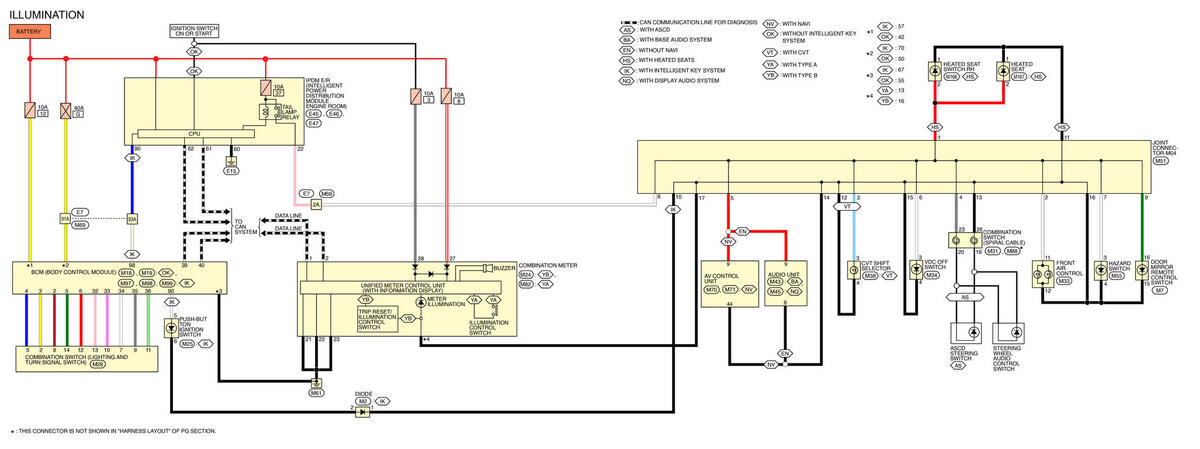

Fig 3: ILLUMINATION

Courtesy of NISSAN NORTH AMERICA, INC.

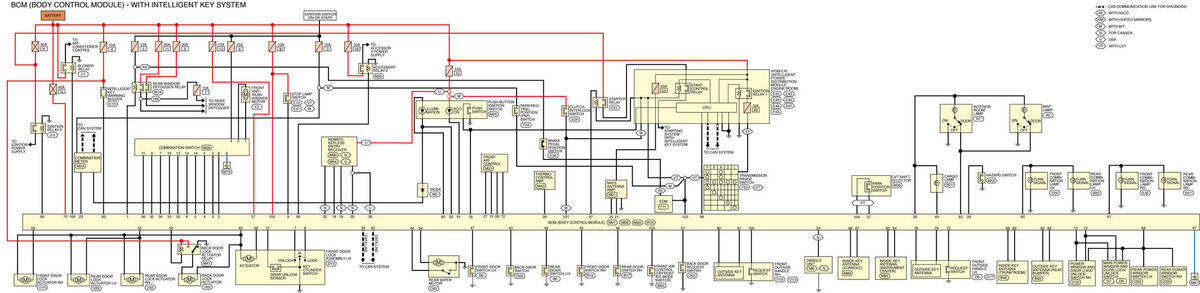

Fig 4: BCM (BODY CONTROL MODULE) - WITH INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

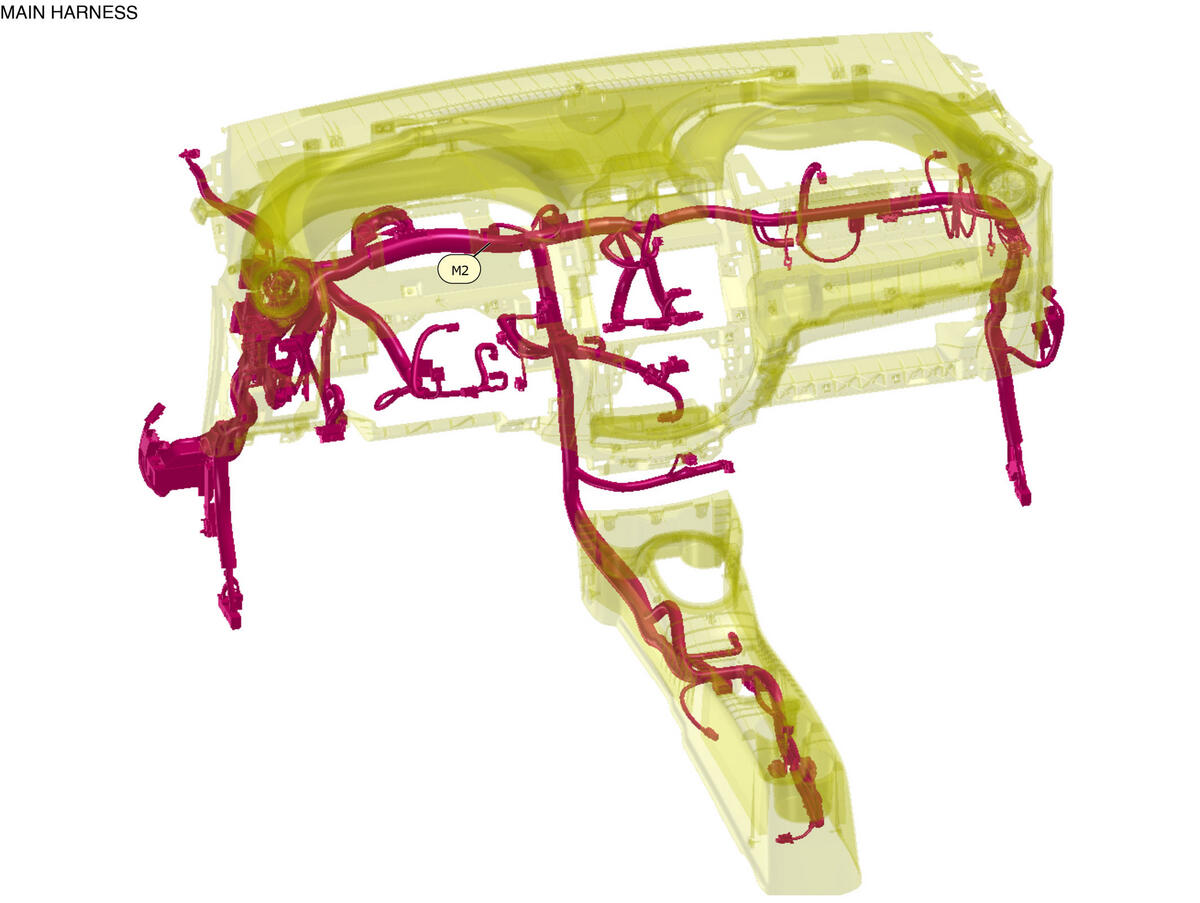

Fig 5: MAIN HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: 24335_C9900
